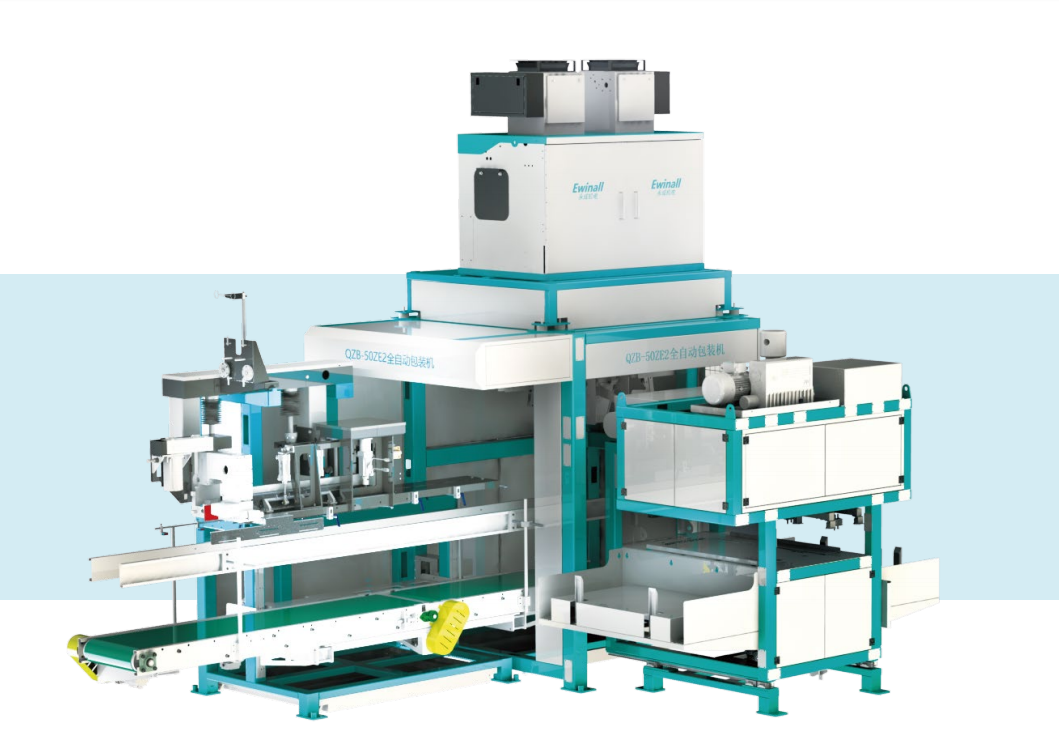

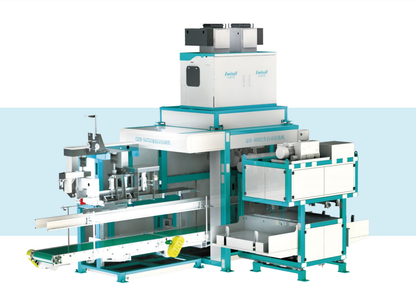

Ewinall QZB-50ZE2 Fully Automatic Bagging Machine – 40kg Feed & Granule Woven Bag Filling, Sealing & Sewing System
Ewinall QZB-50ZE2 Fully Automatic Bagging Machine – 40kg Feed & Granule Woven Bag Filling, Sealing & Sewing System
🔹 Fully automatic 40kg woven bag filling & sewing for feed, pellets and free‑flowing granules – 400‑500 bags/hour, servo‑driven precision.
The Ewinall QZB-50ZE2 automatic bagging machine is engineered for high‑volume feed mills and granule processing plants that need reliable 40kg bag filling without manual intervention beyond bag placement. After the operator places the double‑layer woven bag, the machine automatically opens it using a dedicated vacuum suction technique, fills with an optimized three‑sensor weighing system, and sews the bag securely. A PLC touch screen, servo transmission, automatic lifting conveyor, and fault self‑diagnosis make this unit a dependable core for continuous production.
✨ Key Features of QZB‑50ZE2
After manual bag placement, the machine automatically opens, fills, and sews the bag. Simple one‑operator operation.
High‑flow vacuum suction reliably opens double‑layer woven bags (with inner film) and double‑sided coated bags without damage.
Scientifically designed hopper with balanced force distribution improves stability, anti‑interference, and X(0.2) accuracy.
Centralized control with precise servo positioning. Touch screen interface for easy recipe setup and real‑time monitoring.
Precisely positions the bag for sewing and transport. Strong load capacity for 40kg bags, stable and smooth operation.
Built‑in fault detection displays clear prompts for quick troubleshooting. Enclosed structure with safety interlocks protects operators.
High‑speed automatic cycle keeps pace with medium to large feed mills and granule processing plants.
Heavy‑duty steel frame with enclosed design. Built for continuous operation in dusty feed and grain environments.
📊 Technical Specifications – QZB‑50ZE2
| Model | QZB‑50ZE2 |
| Weighing range | 40 kg (fixed bag weight) |
| Packaging speed | 400 – 500 bags/hour |
| Accuracy level | X(0.2) |
| Bag type | Outer: plastic woven bag + inner: plastic film bag (heat‑sealed mouth); also suitable for double‑sided coated woven bags |
| Air source / consumption | 0.5 – 0.7 MPa ; total 500 L/min |
| Power supply / consumption | AC380V ±10%, 50Hz, 3‑phase 5‑wire ; 6 kW |
| Working environment | 0 – 40°C ; humidity ≤90% |
| Dimensions (L×W×H) | 4475 × 3020 × 3485 mm |
*Speed based on standard feed pellets. Full installation, commissioning, and operator training included.
🔧 Purpose‑Built for Feed & Granule Bagging
*Engineered for continuous 24/7 operation in feed mills and grain processing plants. All pneumatic and electrical components from recognized brands.
🌾 Ideal for Feed Pellets, Granules & Free‑Flowing Materials
The QZB‑50ZE2 is the fully automatic bagging solution for industrial-scale feed and granule packing:
🔎 Frequently searched as: automatic bagging machine, feed packing machine, woven bag filling machine, automatic bag sewing machine, 40kg bagging system, granule bagging equipment, servo bagging machine, machine d'emballage automatique pour aliments, máquina de ensacado automática para piensos. Contact us for a material test and throughput calculation.
🏭 Why EWINALL – Automatic Bagging Specialist Since 2000
Ewinall Packaging Machine Co., Ltd. has designed and manufactured automatic bagging systems for the feed and grain industries for over two decades. The QZB‑50ZE2 reflects our focus on reliable bag opening, precise weighing, and robust construction. We provide full support from factory acceptance testing to on‑site commissioning, backed by a global service network.
Feed Industry Expertise
We understand the demands of feed mills – dust, high throughput, and consistent bag weights.
Global Support
Remote video diagnostics, on‑site service, and fast spare parts delivery in all major agricultural regions.
Complete Lines
Integrate the QZB‑50ZE2 with check weighers, metal detectors, and palletizing robots for a fully automated plant.
📜 Certifications & Quality Assurance
Every QZB‑50ZE2 is factory‑tested with real feed or grain. We provide a detailed test report and a video of your machine running before shipment.
🤝 EWINALL – Your feed bagging, fully automated.
📞 Get Your Quote & Tech Support in One Click
Talk directly to our automatic bagging experts at Ewinall Packaging Machine Co., Ltd.
📱 Tel / WhatsApp: +86 15955157922 | 📧 kevin@ewinall.com | 🌍 ewinall.com
🔧 Installation, commissioning, and operator training included. Ewinall engineers ensure your QZB‑50ZE2 is fully configured for your specific feed or granule product and bag type.
⭐ Ready for a fully automated packaging and palletizing line? Combine the QZB‑50ZE2 with a check weigher, metal detector, and palletizing robot. Ask Kevin for a custom layout and ROI analysis.
