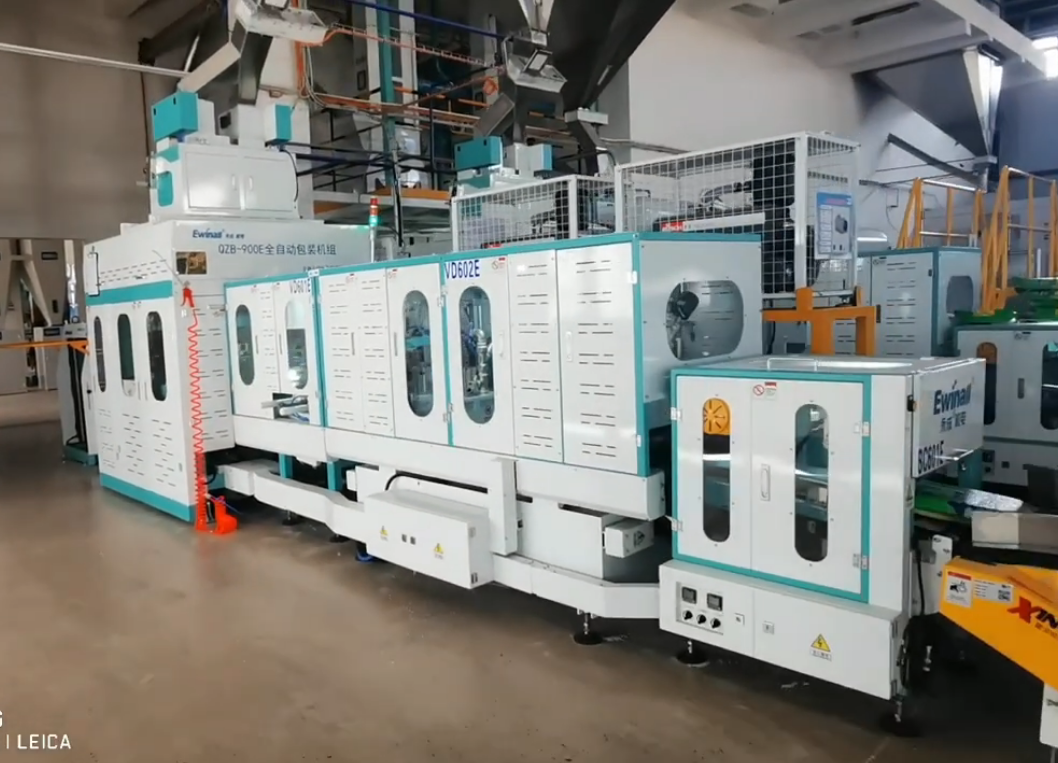

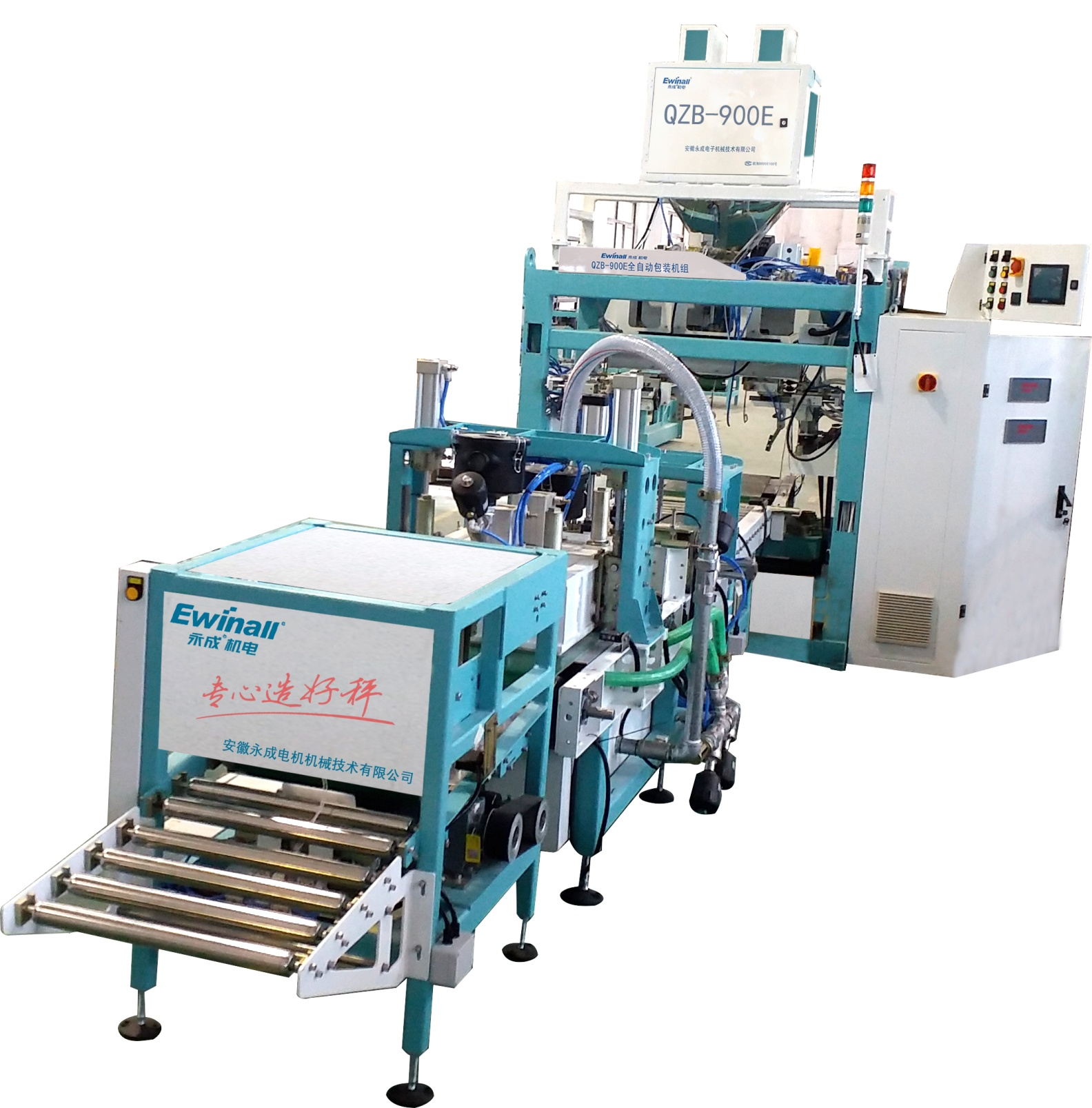

The Ewinall QZB-900E is a high-performance, fully automatic double-sided vacuum packaging machine designed for rice, green beans, grains, corn, and other granular materials. With the capability to handle 5–10kg bags, this machine integrates a complete packaging workflow for maximum efficiency and quality.
Workflow:
Automatic bag feeding and placement

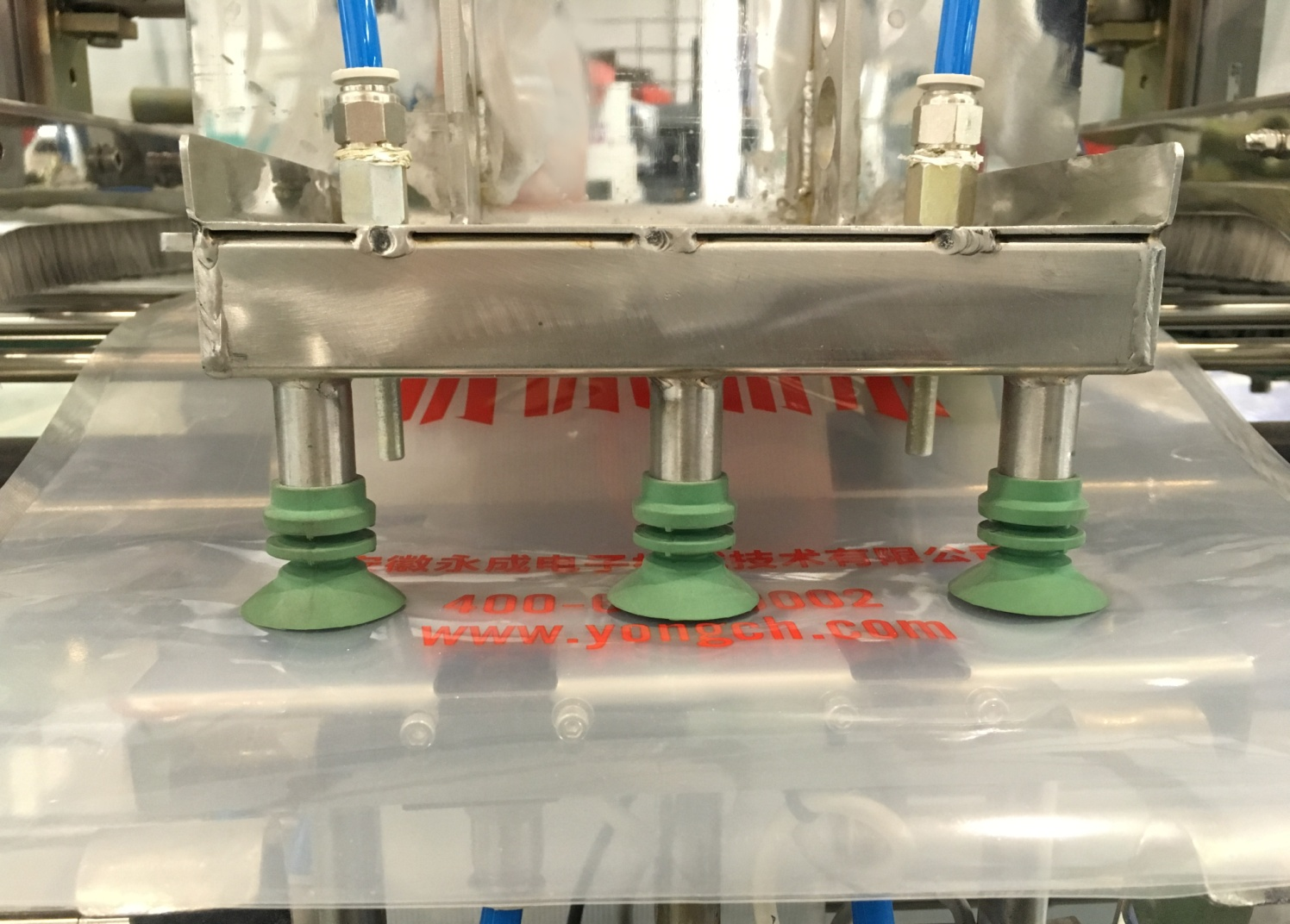

Bag opening with reliable multi-suction cup technology
Automatic inspection and broken-bag removal
Precise weighing and filling
CO₂ preservation injection for freshness

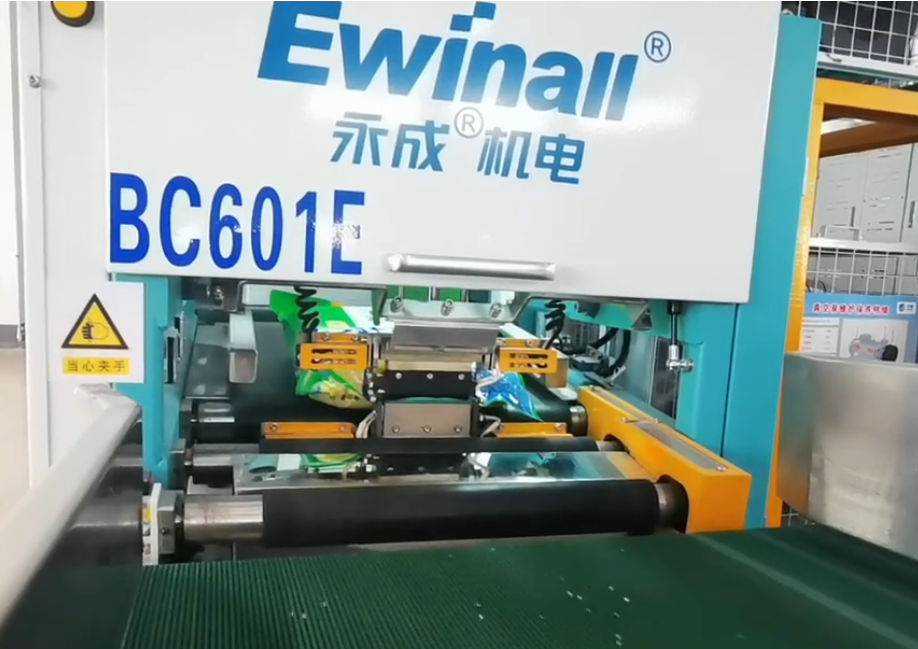

Vacuum or heat sealing

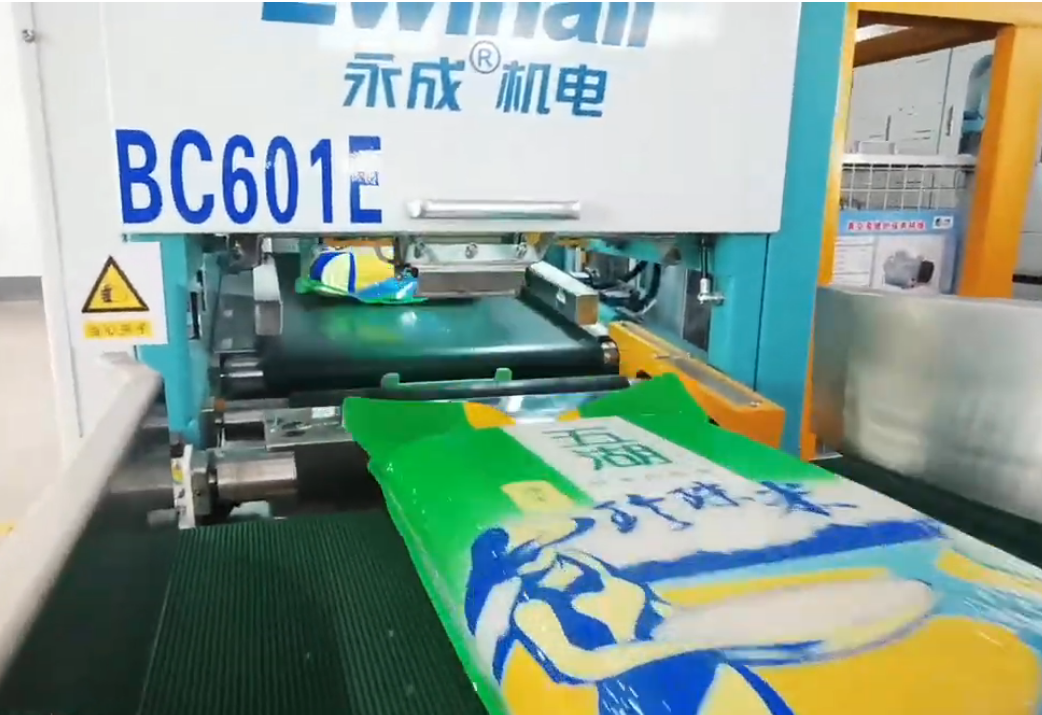

Finished product delivery
The QZB-900E supports PE plastic bags with or without handles and ensures every package is fully protected and ready for storage or transport.
Key Features of QZB-900E:
High-Speed Production: Up to 650 bags/hour for both 5kg and 10kg packaging

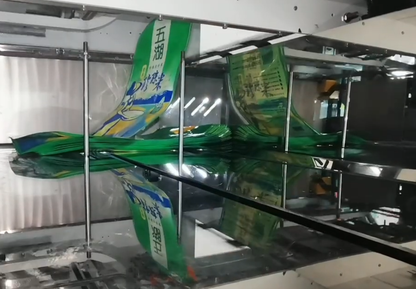

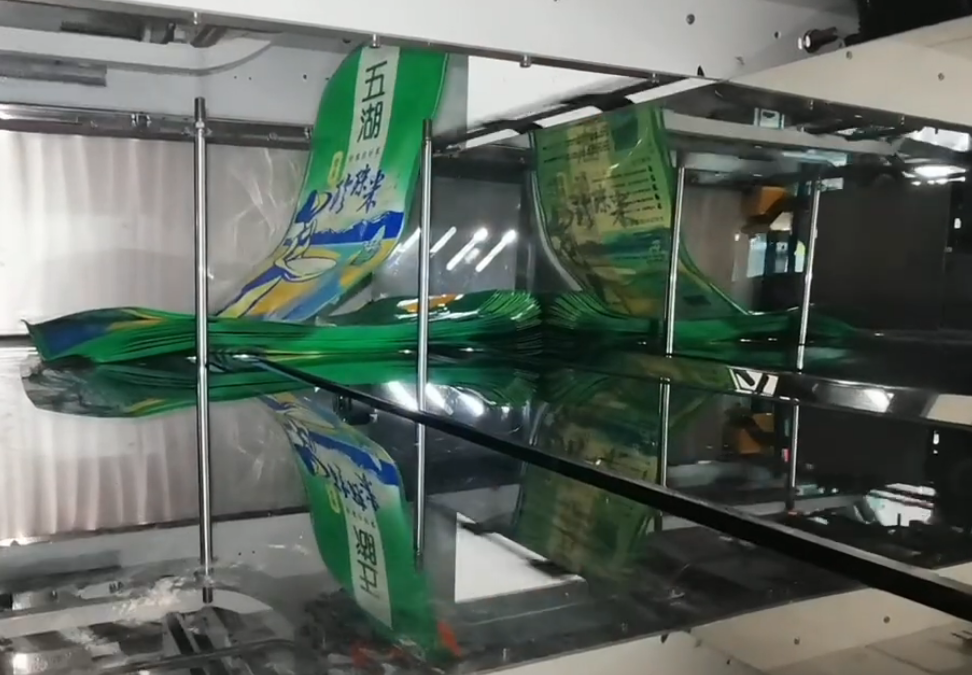

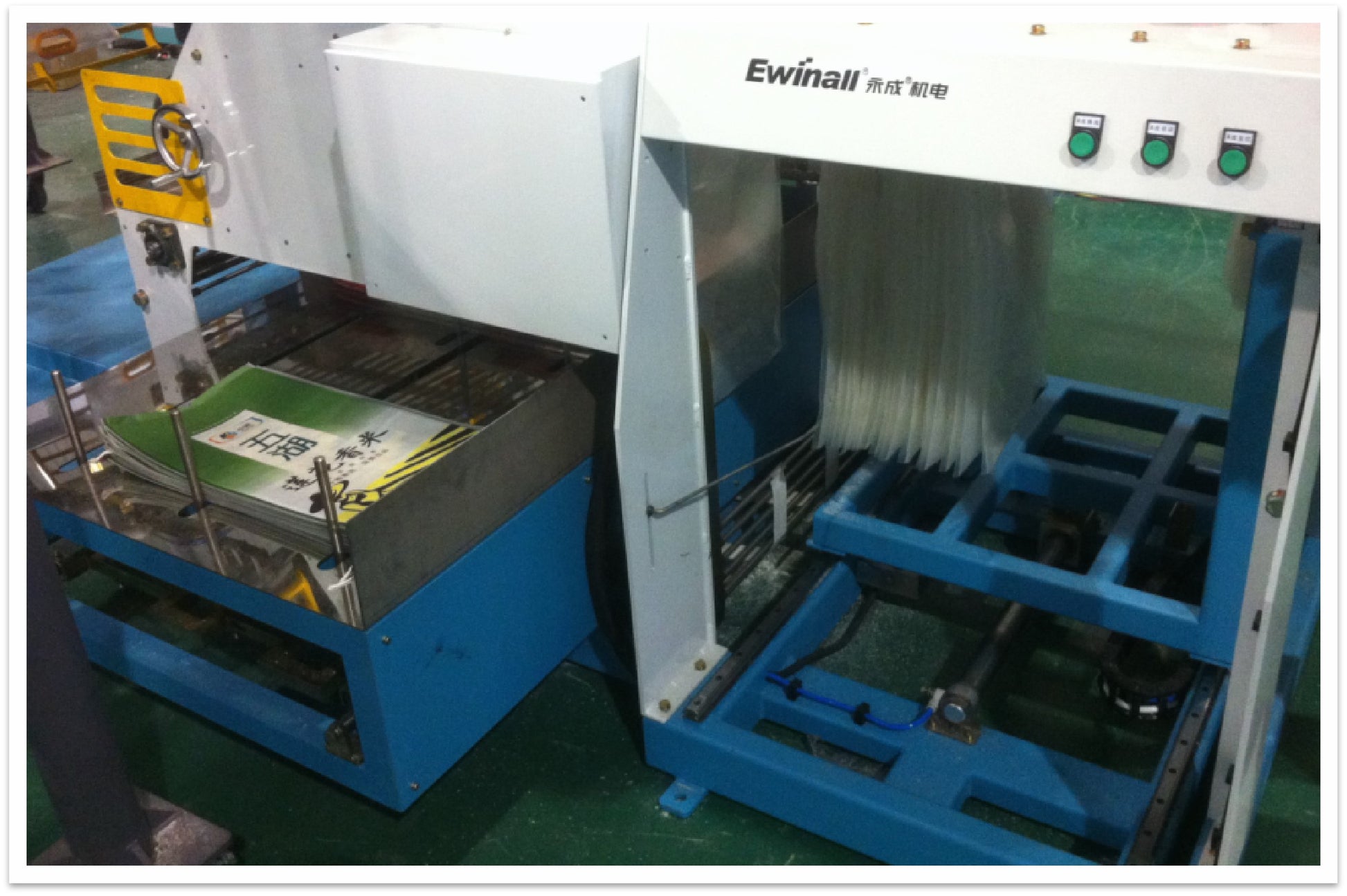

Flexible Bag Options: Vertical and horizontal bag storage, manual or automatic selection
Advanced Technology: German negative-pressure suction, multi-sensor weighing (Mettler-Toledo), servo-controlled transmission
User-Friendly Control: Color touchscreen with PLC programmable system for intuitive operation

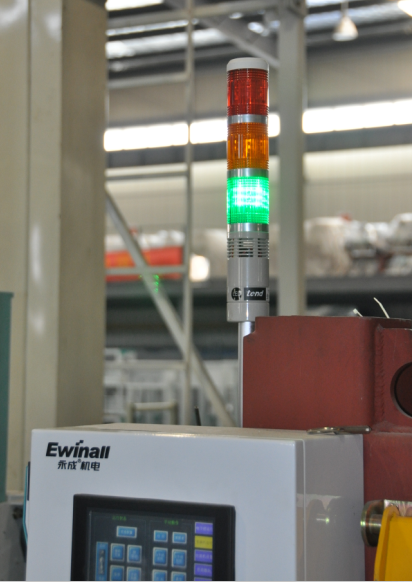

Enhanced Safety: Closed structure, interlocks, and real-time alarm detection
Optional IoT Connectivity: Cloud-based diagnostics and remote monitoring for real-time support
Precision & Stability: Accurate lifting conveyor, automatic bag tamping, stable weighing, and filling
Applications:

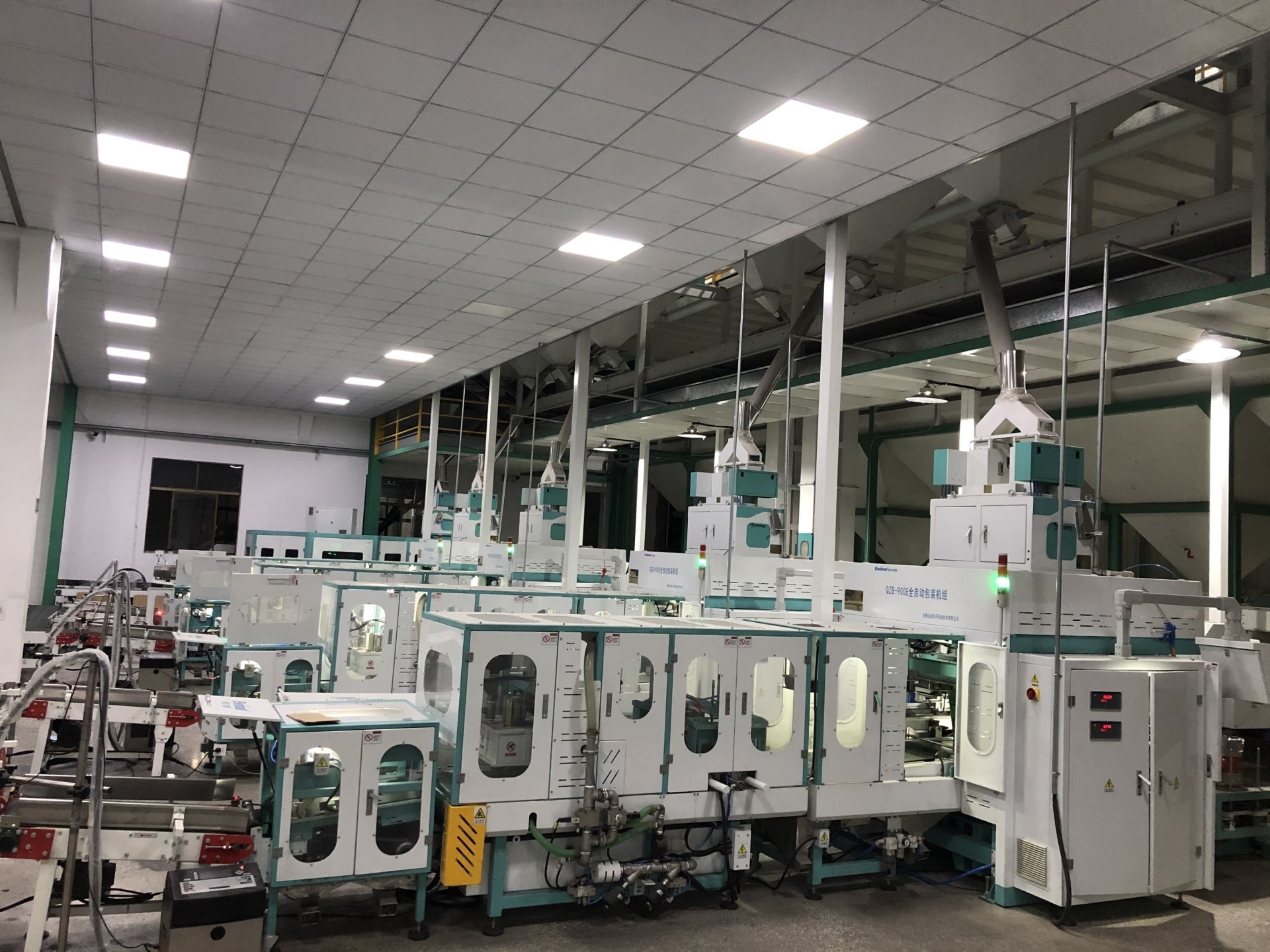

Rice mills and grain processing facilities
Bean, lentil, corn, and seed packaging
Food processing and agricultural production plants
Technical Specifications
Parameter
Specification
Model
QZB-900E
Packing Range
5–10kg
Bag Type
PE plastic bags, with or without handles
Filling Method
1 bag at a time
Max Capacity
650 bags/hour (5kg & 10kg)
Power Consumption
5.6 kW (CO₂) / 10 kW (Vacuum)
Air Pressure / Consumption
0.5–0.7 MPa; 3.6 m³/h (CO₂), 6.8 m³/h (Vacuum)
Control System
Color touchscreen + PLC programmable control
Conveyor
Automatic lifting, single-point drive with 4-point vertical lift
Vacuum Level
Adjustable for optimal freshness
Environmental Temperature
0–40°C
Environmental Humidity
≤90% RH at 40°C
Grounding Form
TN-S
Dimensions (L×W×H)
Customized based on configuration
Safety Features
Closed structure, interlocks, automatic stop with alarm
Watch how our QZB-900E fully automatic packaging machine operates!
Why Choose Ewinall QZB-900E
Fully Automated Workflow: Reduces labor, increases production speed, and ensures consistency.
Advanced Packaging Quality: Vacuum and heat sealing maintain freshness and product integrity.
Flexible & Adaptable: Handles multiple granular products and bag types.
High Precision: Mettler-Toledo sensors and servo control for accurate filling and sealing.
Safe & Reliable: Closed design with multiple safety interlocks and real-time alerts.
Future-Ready: Optional cloud IoT for remote diagnostics and operational efficiency.
Boost your rice and grain packaging efficiency with the Ewinall QZB-900E!
