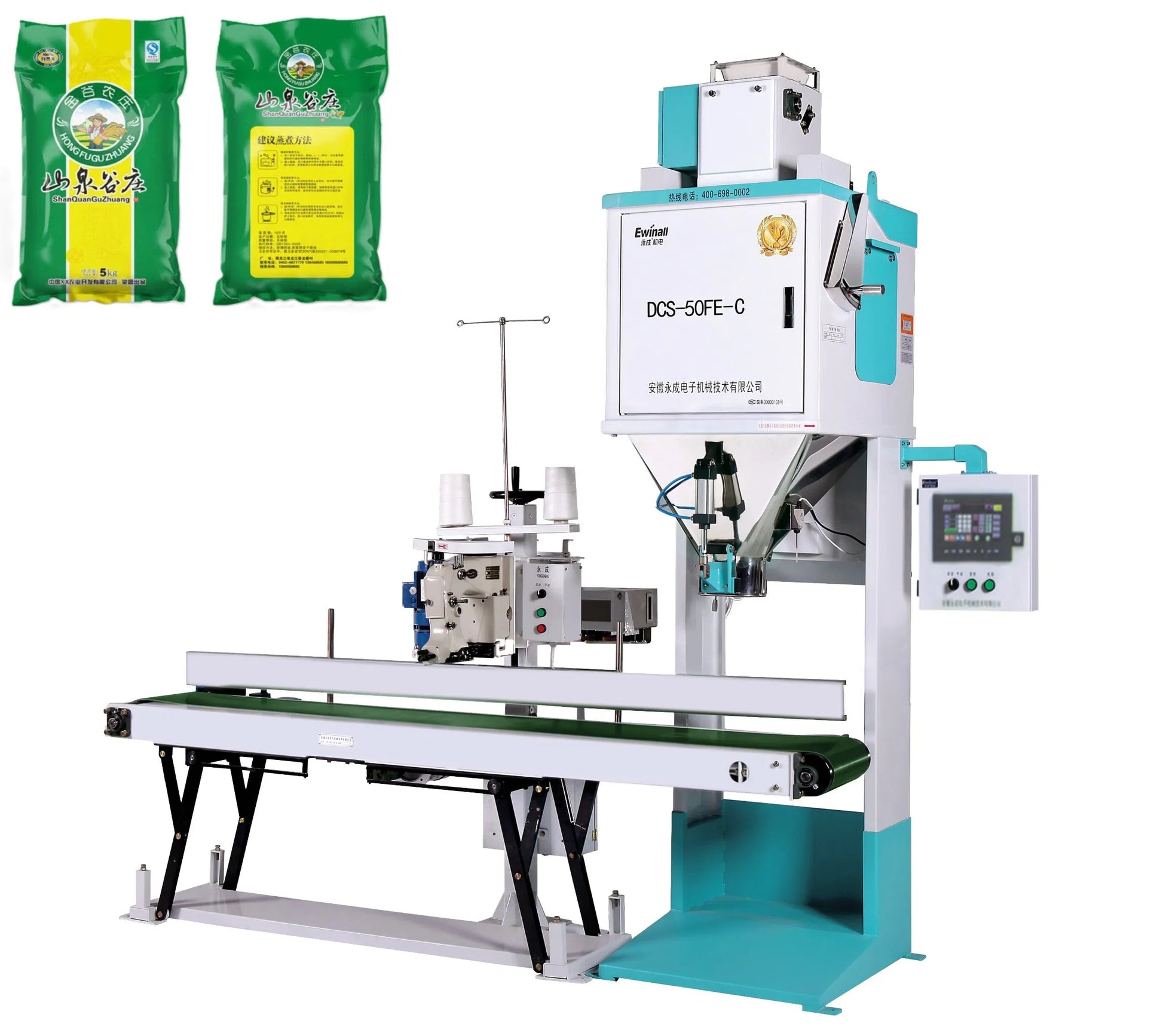

Ewinall DCS-50FE Electronic Weighing & Packaging Machine for Rice, Grains, Seeds & Feed | Automatic Bagging System 10–50kg
Ewinall DCS-50FE Electronic Weighing & Packaging Machine for Rice, Grains, Seeds & Feed | Automatic Bagging System 10–50kg
🔹 Automatic 10‑50kg electronic weighing & bagging with rotating heat‑seal option – 200‑480 bags/hour, available in two models.
The Ewinall DCS‑50FE series electronic weighing and packaging machine combines a rugged three‑sensor scale, intelligent PLC dual‑core control, and a digital auto‑lifting conveyor to deliver precise fills for rice, grains, seeds, animal feed, and other granular materials. A rotatable column lets you switch between sewing and heat sealing without tools, making it easy to serve different bag formats. Choose the DCS‑50FE1 for compact installations or the DCS‑50FE1‑Z for extended conveyor length – both deliver the same ±0.1% accuracy and reliable, low‑maintenance operation.
Watch the DCS‑50FE Fill & Sew 25kg Rice Bags – Adjustable Conveyor & Rotating Sealer
✨ Key Features of DCS‑50FE Series
PLC + weighing controller dual‑core system with a stable three‑sensor structure delivers repeatable accuracy with a 5g graduation.
Automatically adjusts height and position for different bag sizes. Stores settings for quick product changeovers.

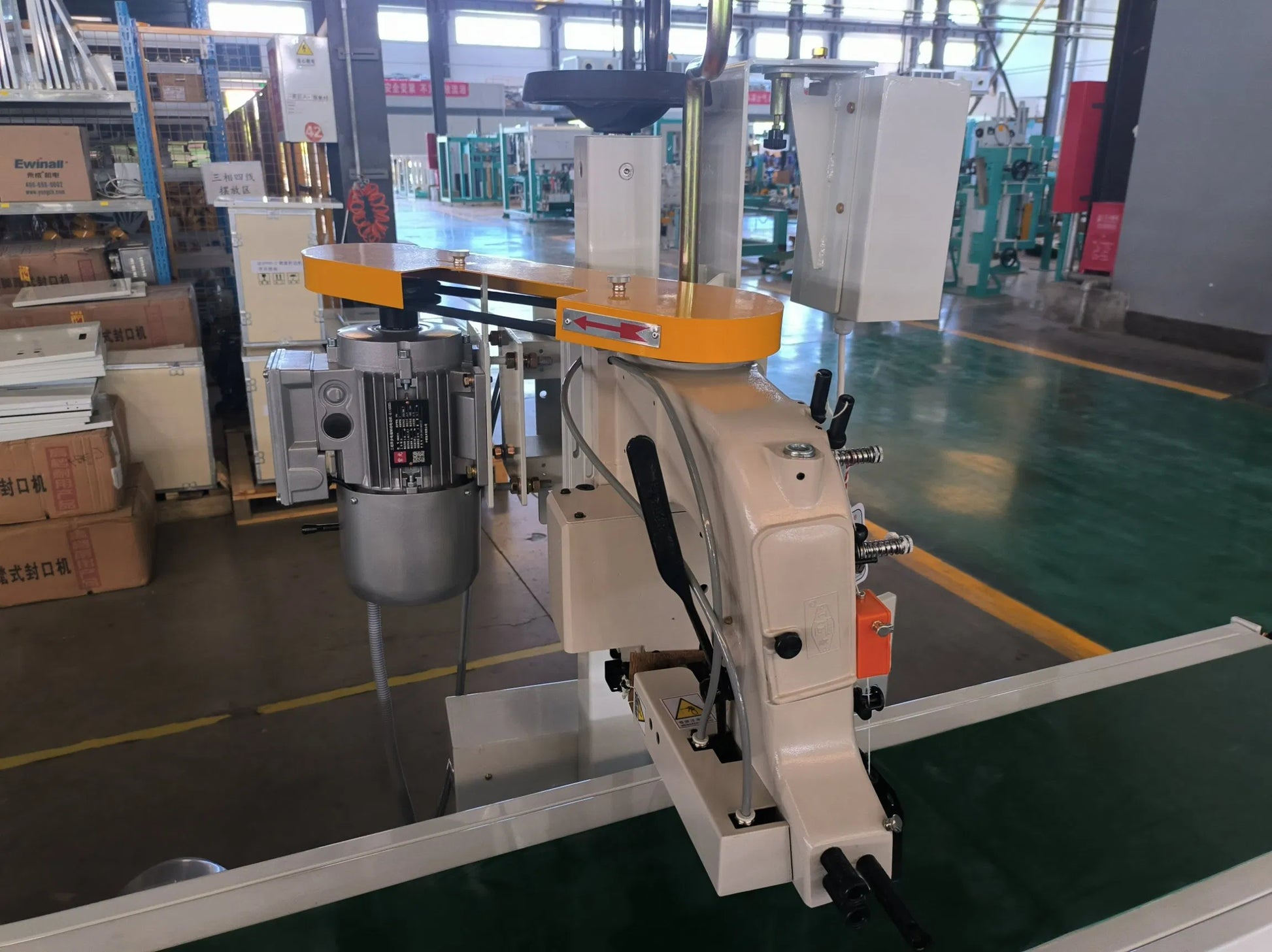

Standard sewing machine; rotate to an optional heat‑seal unit in seconds. Handles woven bags, PP bags, and heat‑seal sacks.
Efficient semi‑automatic operation: operator places bag, machine automatically weighs, fills, and releases.
Separate manual controls for feeder and bag clamp simplify cleaning of agglomerated or blocked materials.
Heavy‑duty steel frame with corrosion‑resistant coating. Built for 24/7 grain, feed, and seed processing environments.
Material‑touch parts are polished and corrosion‑resistant, ensuring hygiene for rice, grains, and food products.
Digital display with package count, cumulative weight, and over‑tolerance alarm for quality control.
📊 Technical Specifications – DCS‑50FE Series
| Parameter | DCS‑50FE1 | DCS‑50FE1‑Z |
|---|---|---|
| Weighing range | 10 – 50 kg | 10 – 50 kg |
| Packaging speed | 200 – 480 bags/hour | 200 – 480 bags/hour |
| Graduation value | 5 g | 5 g |
| Accuracy | ±0.1% F.S. | ±0.1% F.S. |
| Power supply | 4N‑AC380V, 50Hz | 4N‑AC380V, 50Hz |
| Power consumption | 1.1 kW | 1.1 kW |
| Air pressure / consumption | 0.4 – 0.5 MPa ; 1 m³/h | 0.4 – 0.5 MPa ; 1 m³/h |
| Working temperature | 0 – 40°C | 0 – 40°C |
| Working humidity | ≤90% RH at 40°C | ≤90% RH at 40°C |
| Dimensions (L×W×H) | 2847 × 1026 × 2731 mm | 2970 × 1016 × 2931 mm |
*DCS‑50FE1 is the standard model; DCS‑50FE1‑Z features an extended conveyor length. Both models include full installation, calibration, and training.
🔧 Smart Design & Reliable Components
*Designed for continuous, high‑cycle operation in rice mills, grain depots, and feed processing plants.
🌾 Perfect for Heavy Bags of Rice, Grains, Seeds & Feed
The DCS‑50FE series is the automatic electronic weighing and bagging solution for mid‑weight bulk packs:
🔎 Frequently searched as: automatic rice bagging machine, grain packaging machine, seed weighing machine, feed bagging system, electronic weighing scale 50kg, rotating heat seal bagger, máquina de envasado automática, machine d'emballage automatique pour céréales. Send us your material for a test video.
🏭 Why EWINALL – Trusted Electronic Weighing Scale Manufacturer Since 2000
Ewinall Packaging Machine Co., Ltd. has engineered industrial weighing and bagging systems for over two decades. Our DCS‑50FE series is built on field‑proven technology trusted by grain processors, seed companies, and feed manufacturers worldwide. We provide comprehensive support from layout planning to on‑site commissioning and operator training.
Application Know‑How
We understand the diverse flow characteristics of grains, seeds, and feed, and configure each machine accordingly.
Global Service
Remote video diagnostics, on‑site support, and fast spare parts delivery keep your line productive.
Scalable Solutions
Start with a DCS‑50FE and add conveyors, check weighers, or palletizers as your business grows.
📜 Certifications & Quality Assurance
Each DCS‑50FE scale is factory‑calibrated and tested with real grain. An accuracy certificate and test video are provided before shipment.
🤝 EWINALL – Weighing accuracy that feeds your bottom line.
📞 Get Your Quote & Tech Support in One Click
Talk directly to our electronic weighing experts at Ewinall Packaging Machine Co., Ltd.
📱 Tel / WhatsApp: +86 15955157922 | 📧 kevin@ewinall.com | 🌍 ewinall.com
🔧 Installation, calibration, and operator training included. Ewinall ensures your DCS‑50FE scales are running at peak accuracy with your specific products.
⭐ Ready to automate your entire packing line? Combine the DCS‑50FE with an automatic bag placer, check weigher, or palletizing robot. Ask Kevin for a custom layout and bundled quote.
