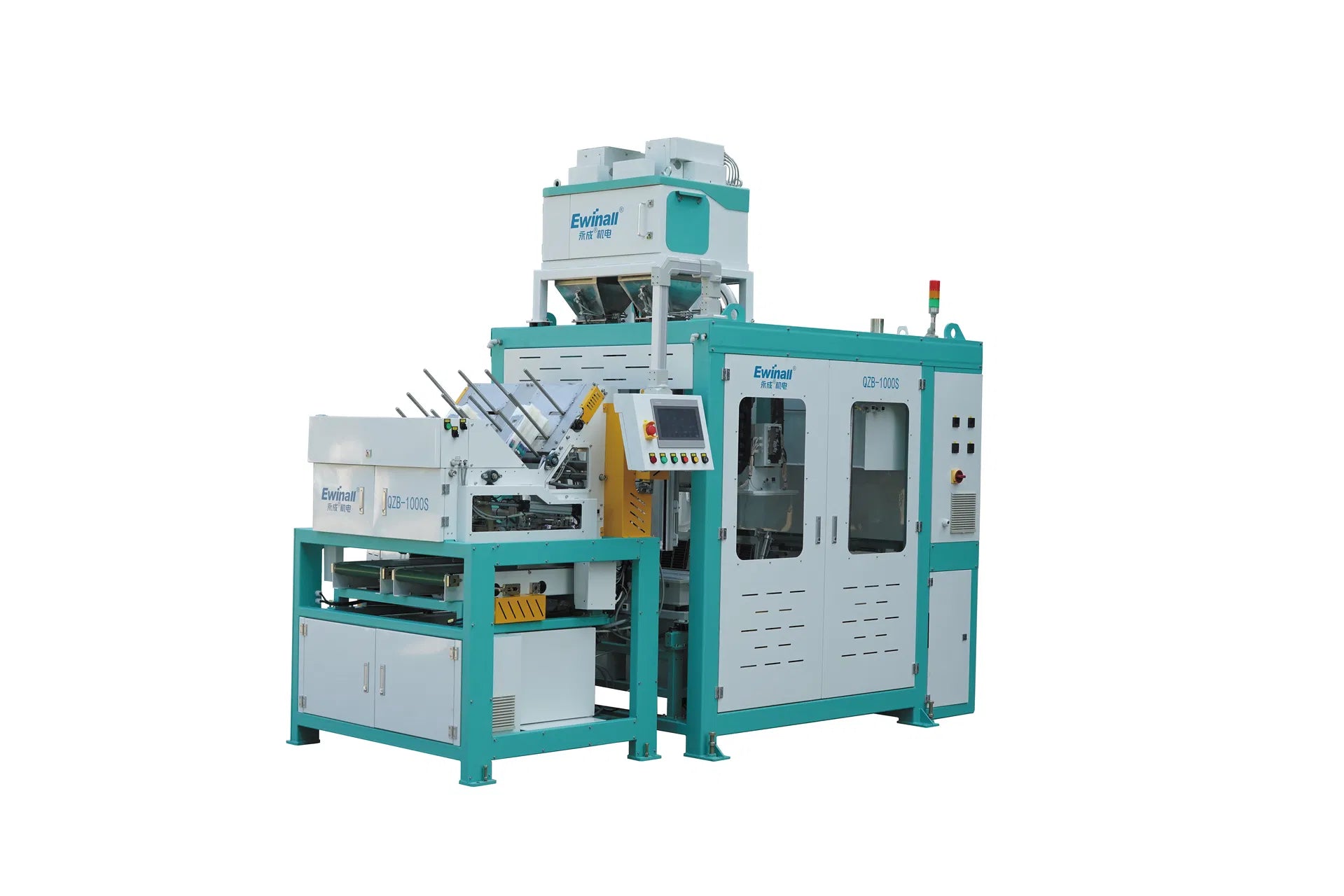

QZB-1000S 0.5–5kg Brick Shape Vacuum Machine
Fully Automatic Equipment for High-Precision Vacuum Packing
Product Description
The QZB-1000S Brick Shape Vacuum Machine is a fully automatic solution designed for high-precision vacuum packaging of granular and powdered products in brick-shaped bags. After manually placing the bag, the machine automatically completes the vacuum filling and sealing process, ensuring efficient operation and consistent packaging quality.
Equipped with a touch screen interface and PLC programmable centralized control system, the QZB-1000S features full servo-driven transmission, enabling fast automatic changeover between different packaging specifications to meet flexible production requirements.
The system also includes fault self-check prompts, a sealed weighing chamber, and a three-sensor high-precision quantitative scale, reducing component wear and ensuring reliable, long-term operation. Its closed structural design with safety interlocks guarantees operator protection and safe operation.
Features

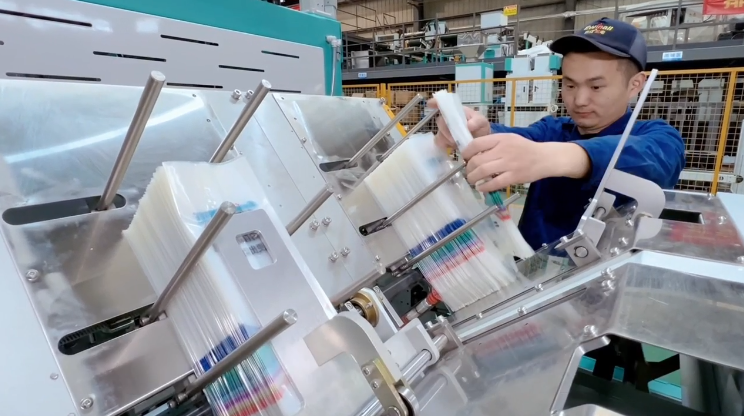

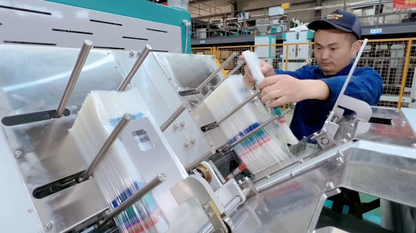

(1) After the equipment manually places bags, it can automatically complete the filling and sealing process, and the operation is convenient and simple. The equipment has the function of automatic adjustment to achieve system parameter recipe storage.
(2) It adopts touch screen and PLC programmable centralized control system, and the transmission uses servo control, with a high degree of automation. Quickly changing specifications, it can automatically and quickly change product packaging specifications to meet the needs of flexible production.
(3) The equipment has a fault self-test prompt function, and faults can be quickly eliminated according to the fault prompts. Maintenance is simple and convenient.
(4) The equipment adopts a closed structure design and has a safety interlocking device.
(5) The packaging scale adopts a separate cylinder to drive feeding and a three-sensor weighing structure.
(6) The weighing components are all in a closed working room to reduce corrosion and wear of components.
(7) Quick mold change, only need to change 3 positions of mold to achieve 3 minutes mold change.
Applications
- Brick-shaped vacuum packaging of rice, grains, coffee, and powdered products
- Fully automated packaging lines for food and agricultural industries
- High-precision packaging requiring consistent weight and airtight sealing
|
Packing range (kg) : 0.5 ~ 5kg;
|
Bag: organ plastic bag;
|
|
Packing speed: (800 ~ 1000) bags/hour;
|
Air source pressure: (0.5 ~ 0.7) MPa
|
|
Power: 7kW;
|
Total air consumption: 600L/min;
|
|
Packaging bag limit size (mm) :
Width: 80 ~ 235;
Thickness: 40 ~ 80;
Length: 250 ~ 480.
|
Ambient temperature: (0 ~ 40) ℃
|

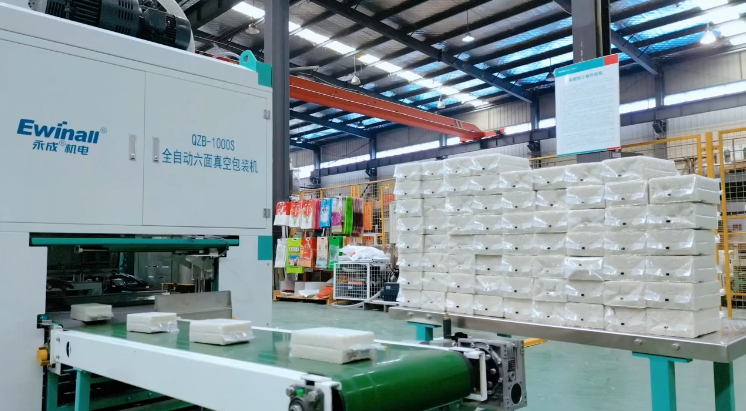

Watch how our fully automatic packaging machine performs vacuum packaging on rice.
