Collection: Palletizing Robots

EWINALL robotic palletizing systems automatically stack filled bags or cartons into stable, repeatable pallet patterns. They reduce heavy manual handling, improve workplace safety and maintain consistent end-of-line output during long production shifts.

The system can be integrated after sewing, heat sealing, metal detection and check weighing, with conveyors, bag flattening, pallet magazines, safety fencing and stretch wrapping configured as required.

• Customized pallet pattern, layer count and stacking height
• Suitable grippers for bags, cartons and packaged products
• PLC coordination with upstream packaging equipment
• Safety guarding and access control for industrial operation

For system design, provide bag dimensions and weight, bags per hour, pallet size, target stacking pattern and available floor space.

Palletizing lines in operation

• USA rice: QZB-900D automatic bagging through EC-171 palletizing to wrapped pallets
• Indonesia rice: QZB-900Z bagging, ZDJ-1800 outer bagging and EC-171 palletizing
• Greece bird feed: QZB-700M and QZB-900 bagging with FUJI EC-171 palletizing
• Vietnam rice: QZB-900E vacuum packing, ZXJ-1400 cartoning and robotic palletizing

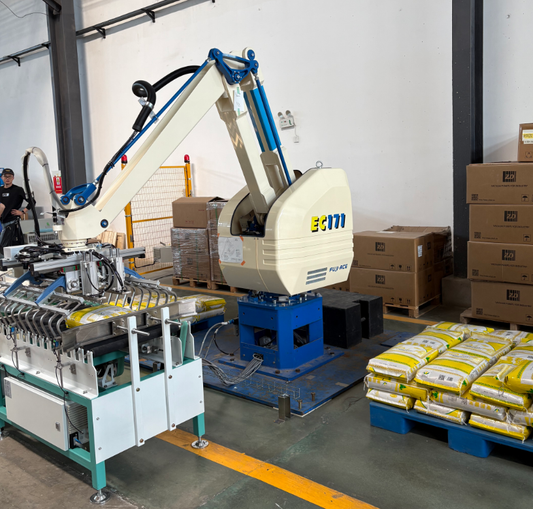

Main robot: EC-171 palletizing robot (160 kg payload). For a complete line from feeding to pallet, see complete packaging lines.

Palletizing FAQ

Can the robot work with my existing bagging machine?

Yes. The palletizer is PLC-controlled and can follow existing baggers, sewing machines, check weighers or metal detectors. We review conveyor heights and the layout first.

Which packages can it stack?

Woven, paper and PE bags as well as cartons within the robot's payload. The gripper is selected for your bag type and weight.

How much floor space is needed?

It depends on pallet size, the number of pallet positions and safety fencing. Send your layout drawing and we will propose a plan.
