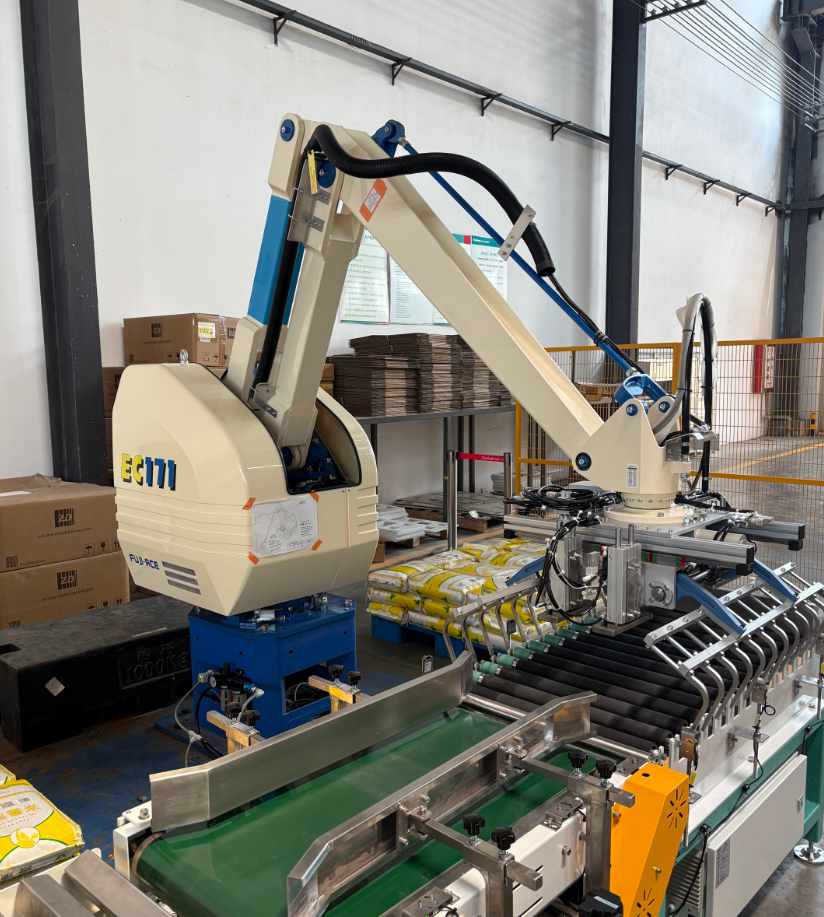

EC-171 160kg Heavy-Duty Palletizing Robot for Automated Packaging & Logistics
EC-171 160kg Heavy-Duty Palletizing Robot for Automated Packaging & Logistics
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers

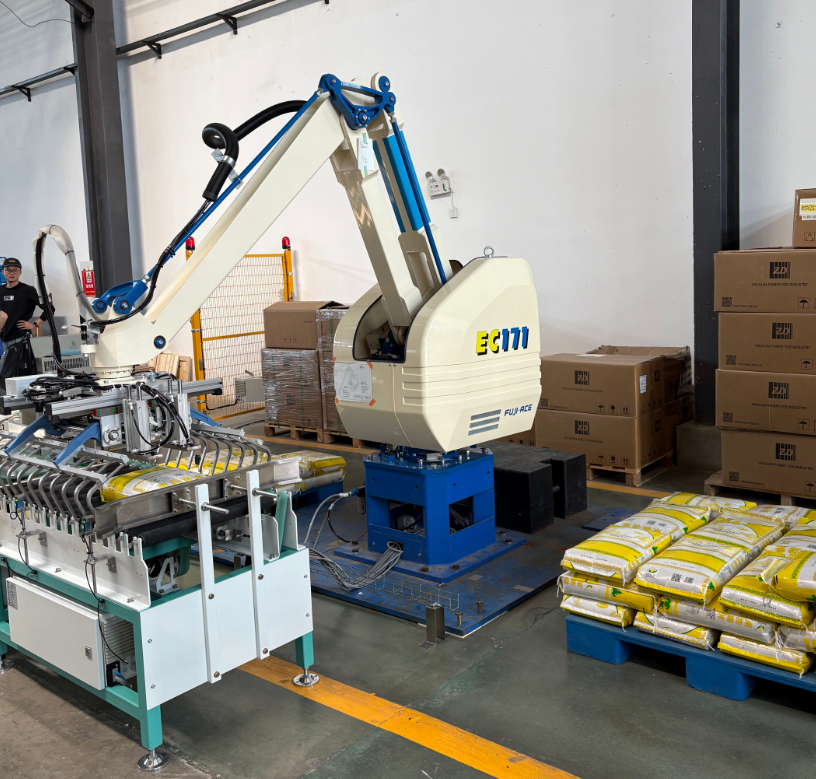

A 4-axis palletizing robot for the end of bagging lines in rice, flour, sugar, feed, fertilizer and cement plants. It lifts up to 160 kg (about 353 lb) and runs up to 1,600 cycles per hour in bag applications, stacking each bag to a programmed pattern with ±0.5 mm repeatability.
Cycle rate depends on bag weight, gripper and pallet pattern. Payload diagram, reach dimensions and cycle-time charts are available on request.
Is the EC-171 the right fit?
Good fit
- Rice and grain mills stacking 5–50 kg bags
- Sugar and flour factories
- Animal feed and pet food plants
- Fertilizer, chemical powder and cement packers
- Cartons and shrink-wrapped bundles as well as bags
Look at another model if
- You pack vacuum bricks into cartons: see the ZXJ-1400 packing unit
- You need a gantry or shelf-mounted robot: ask us, these options can be discussed
- You only need bags loaded straight onto trucks: conveyors may be enough

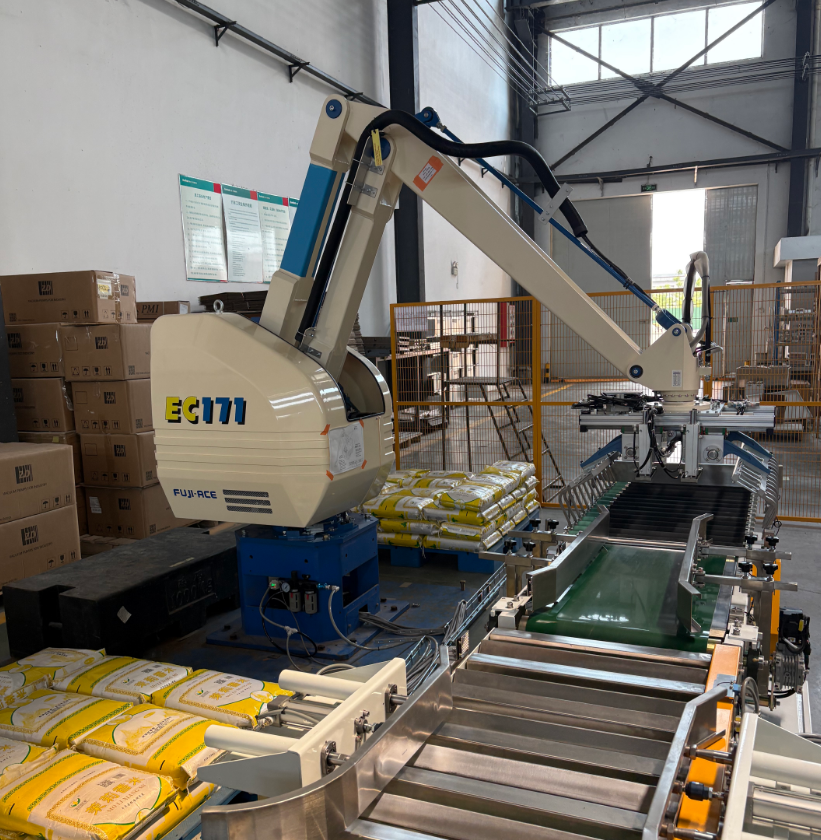

How it works in the line
-
Infeed
Bags arrive from the bagger on conveyors. -
Pick
A bag, box or vacuum gripper, made for your package, picks the load. -
Place

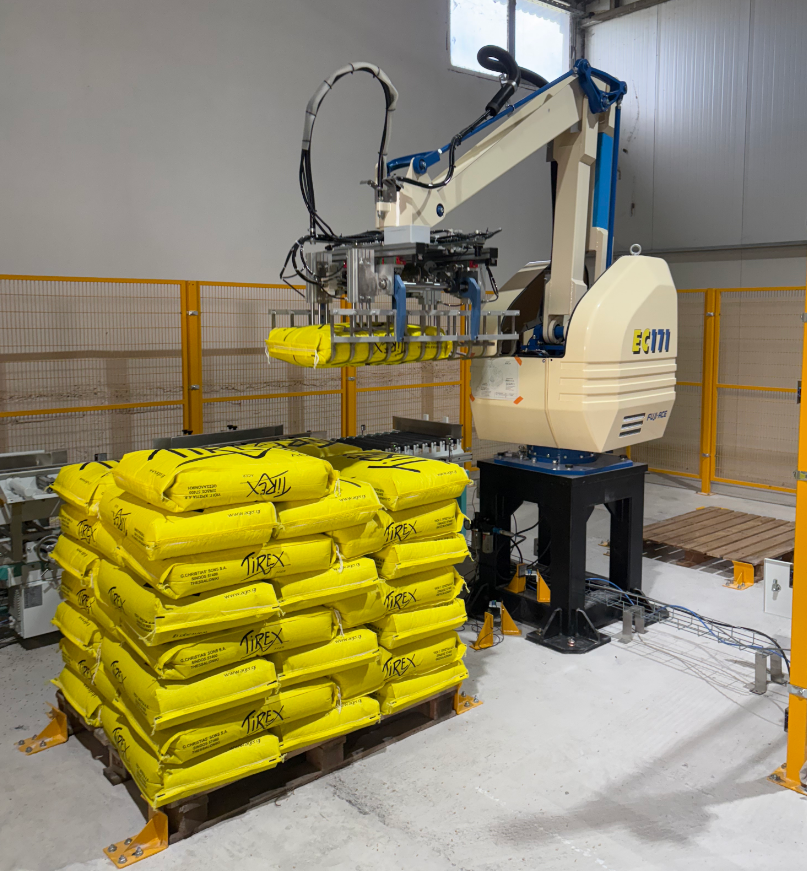

The robot places each bag to the pattern set on the teach pendant or offline software. -
Change
Switching to another product or pallet size takes minutes: select another pattern.

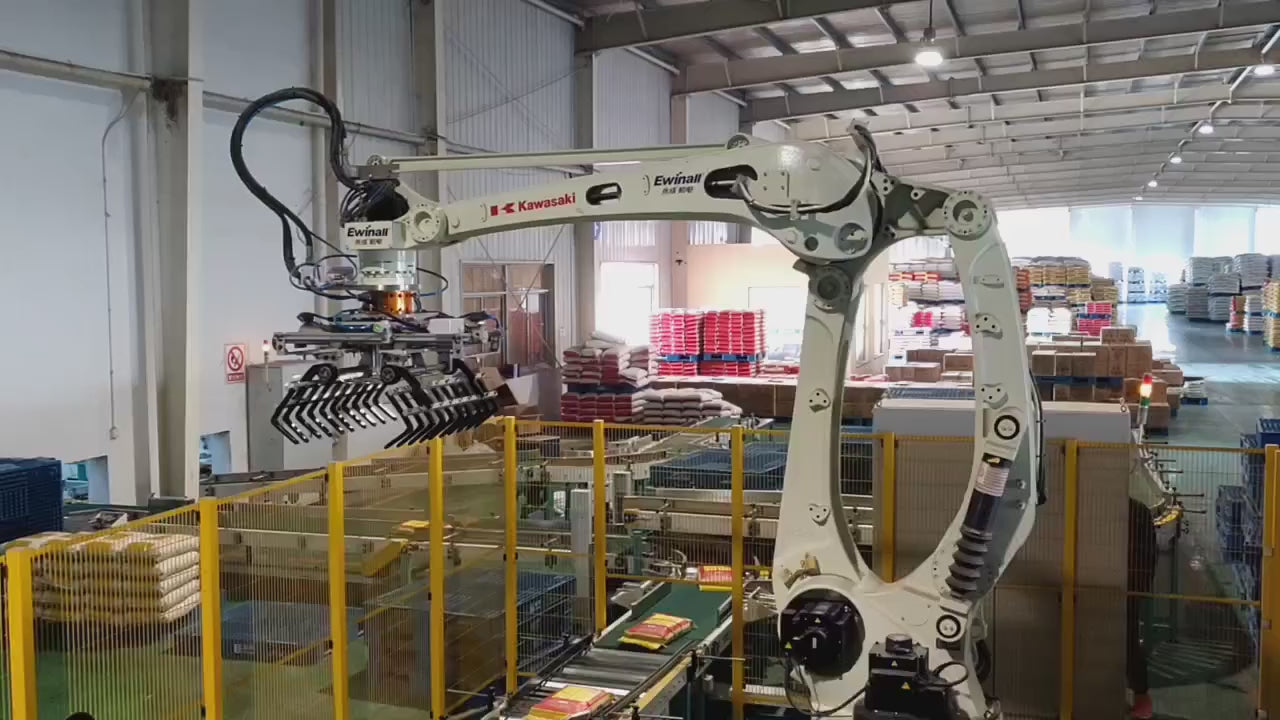

Watch it run

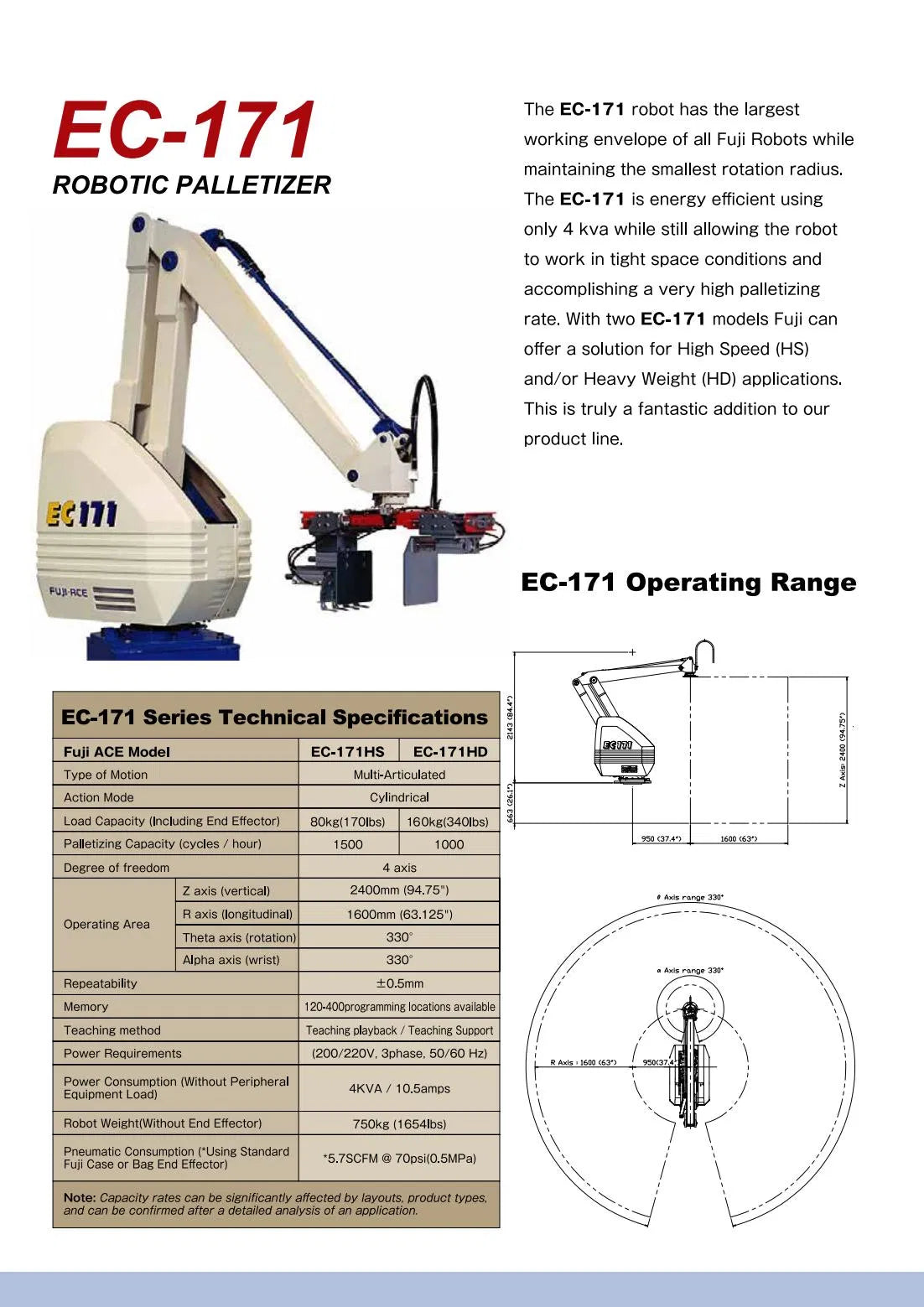

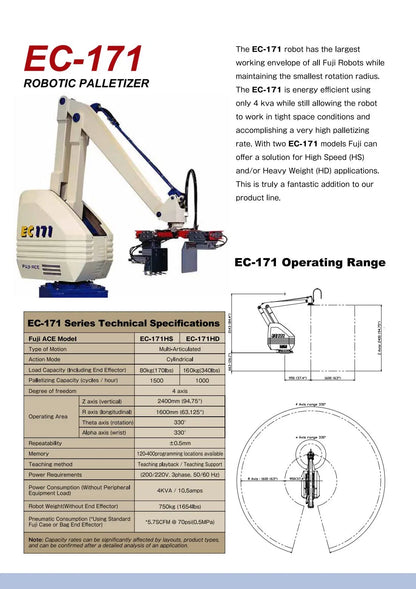

Technical specifications
| Item | Metric | US units |
|---|---|---|
| Maximum payload | 160 kg | about 353 lb |
| Maximum speed | Up to 1,600 cycles/h (bag application) | |
| Axes | 4-axis, high-rigidity articulated arm | |
| Repeatability | ±0.5 mm | about ±0.02 in |
| Control | Motion controller with touch-screen teach pendant; pallet pattern software included | |
| Communication | Ethernet/IP, Profinet, Modbus TCP | |
| Power | 380 V ±10%, 50 Hz, 3-phase | |
| Installation | Floor-mounted, compact footprint | |
| Protection class | IP54 (higher on request) | |
Safety and build

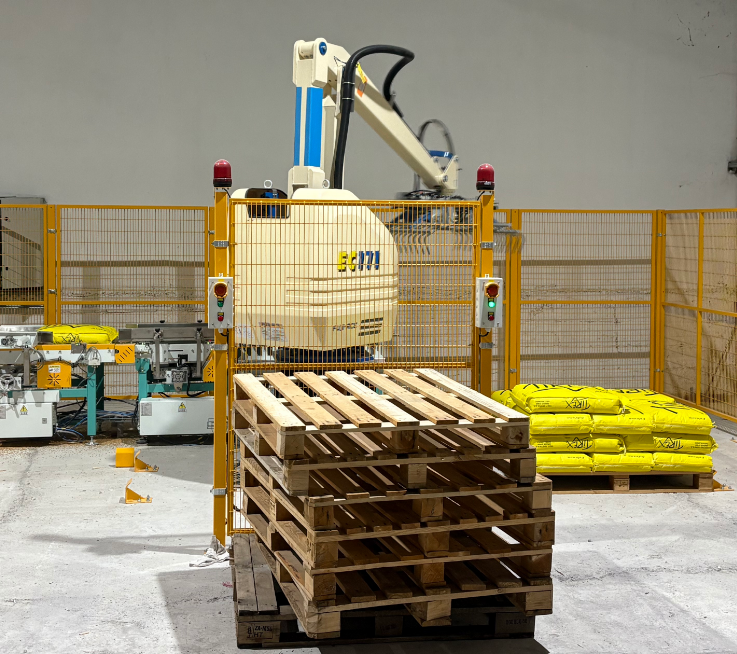

- Safety fencing, light curtains and a safety PLC

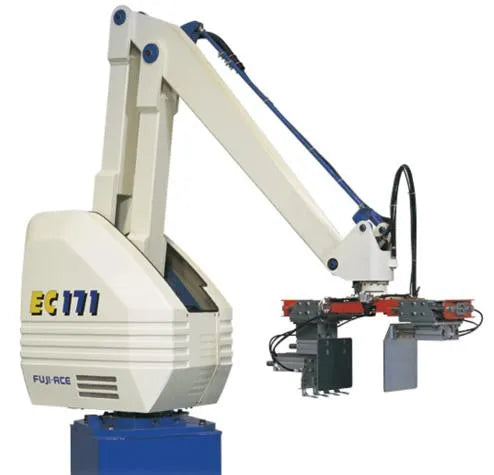

- Cast iron and steel arm; AC servo motors with precision cycloidal / RV gearboxes
- Maintenance-free gearboxes and sealed bearings
- Protective coatings for long service life; remote diagnostics capability
Add to the line
The EC-171 is fed by our bagging machines and conveyors, such as the Double Drive Waiting Palletizer for bag positioning, and can be followed by a stretch wrapper. We take responsibility for the whole system, from pallet pattern to commissioning.
Get a palletizing quote
To size the machine and give you a price, we need five things:
- Bag or carton size and weight
- Target bags per hour
- Pallet size and stacking pattern (layers, bags per layer)
- Number of infeed lines and the space available
- Power supply (voltage and Hz)
Ewinall provides layout design, gripper customization, safety fencing, programming, on-site installation and operator training.
