ZXJ-1400 Automatic Packing Unit

Name: ZXJ-1400 Automatic Packing Unit
Brand: Ewinall

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

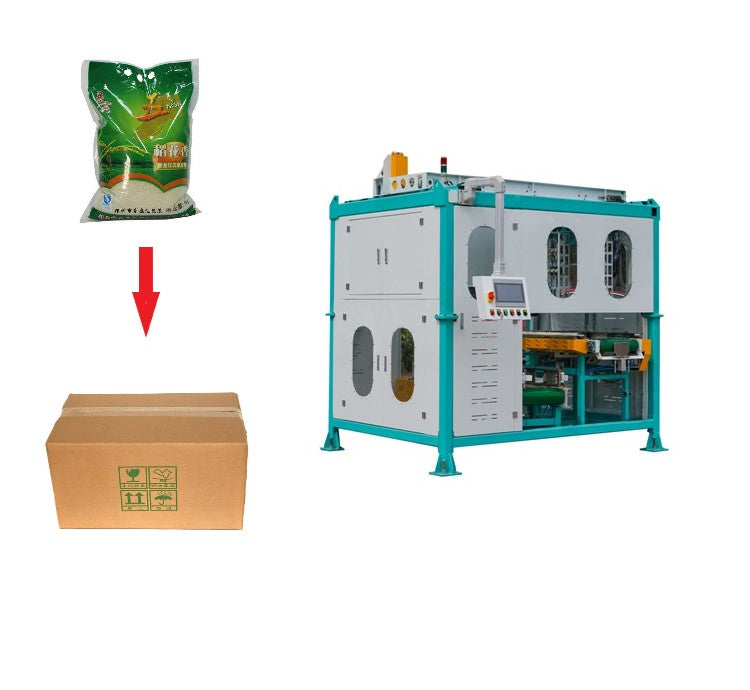

A servo Cartesian robot that packs 2.5–10 kg (5.5–22 lb) double-side vacuum packs of rice, beans and grains into cartons, at 1,000–1,400 packs per hour. It replaces manual case packing and can also sort, palletize and load or unload.

2.5–10 kg5.5–22 lb per pack

1,000–1,400packs per hour

±1 mmabout ±0.04 in repeatability

4 kWand 83 L/min air

Rate depends on the pack size and packs per carton. Send us both and we will confirm.

Is the ZXJ-1400 the right fit?

Good fit

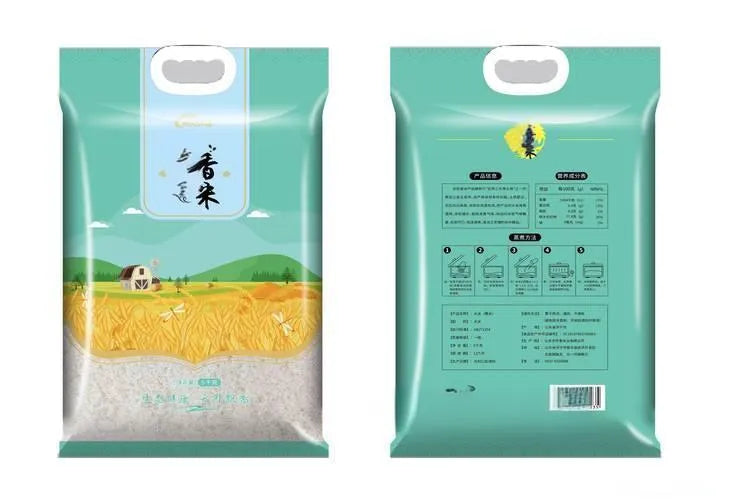

Rice mills putting vacuum brick packs into cartons
Bean and grain packers with 2.5, 5 or 10 kg packs
Lines that change pack size often
Plants replacing manual case packing

Look at another model if

You put packs into outer bags instead of cartons: see the ZDJ-1800
You stack 25–50 kg bags on pallets: see the EC-171 robot
You want vacuum packing and cartoning in one system: see the ZXJ-2400

How it works in the line

Infeed
Vacuum packs arrive from the packaging machine.
Pick
The XY servo robot picks each pack.
Place
Packs are placed in the carton; pack direction can be reversed and fold settings customized.
Out
The full carton goes on to a sealer or palletizer.

Switching between 2.5, 5 and 10 kg configurations is a recipe on the touch screen.

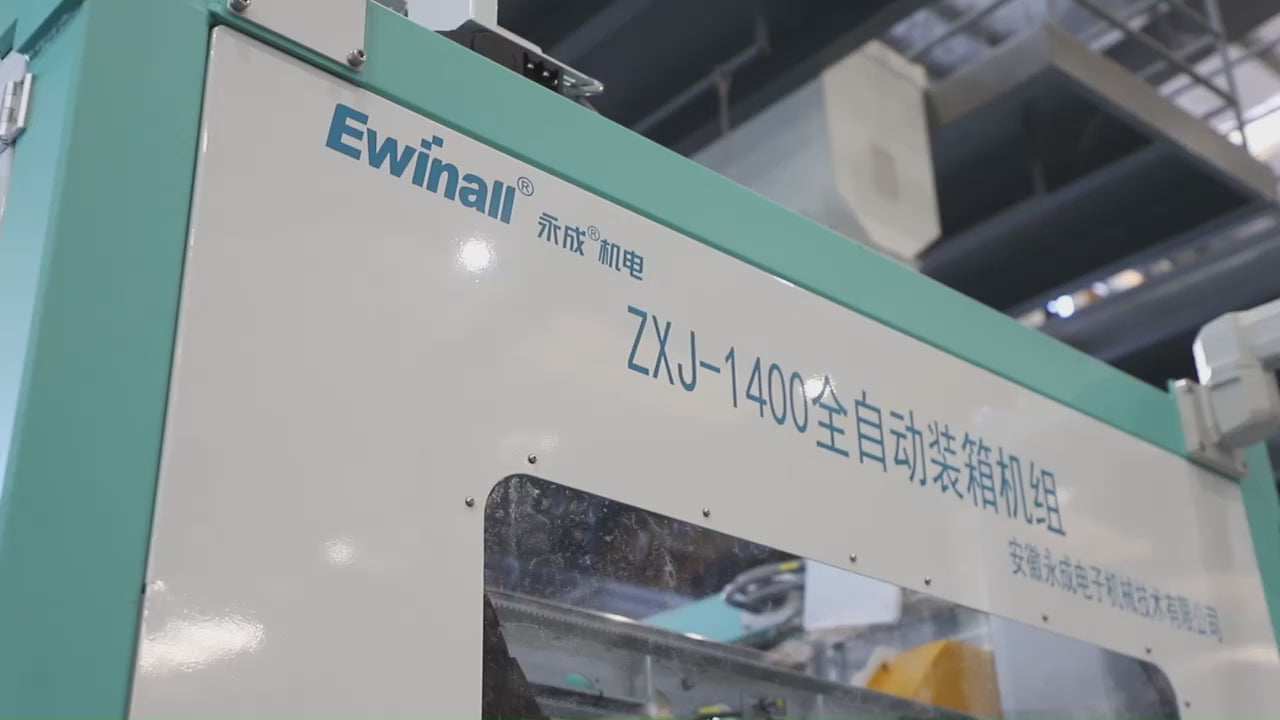

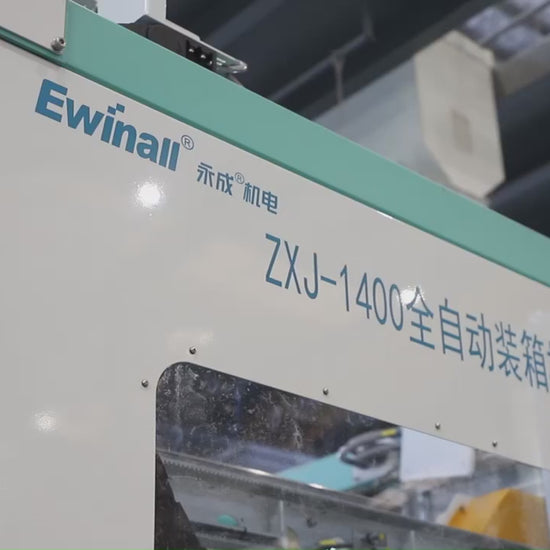

Watch it run

Technical specifications

Item	Metric	US units
Packing method	Cartesian (XY) servo robot transfer
Pack weight	2.5–10 kg per pack	5.5–22 lb
Capacity	1,000–1,400 packs/h	1,000–1,400 packs/h

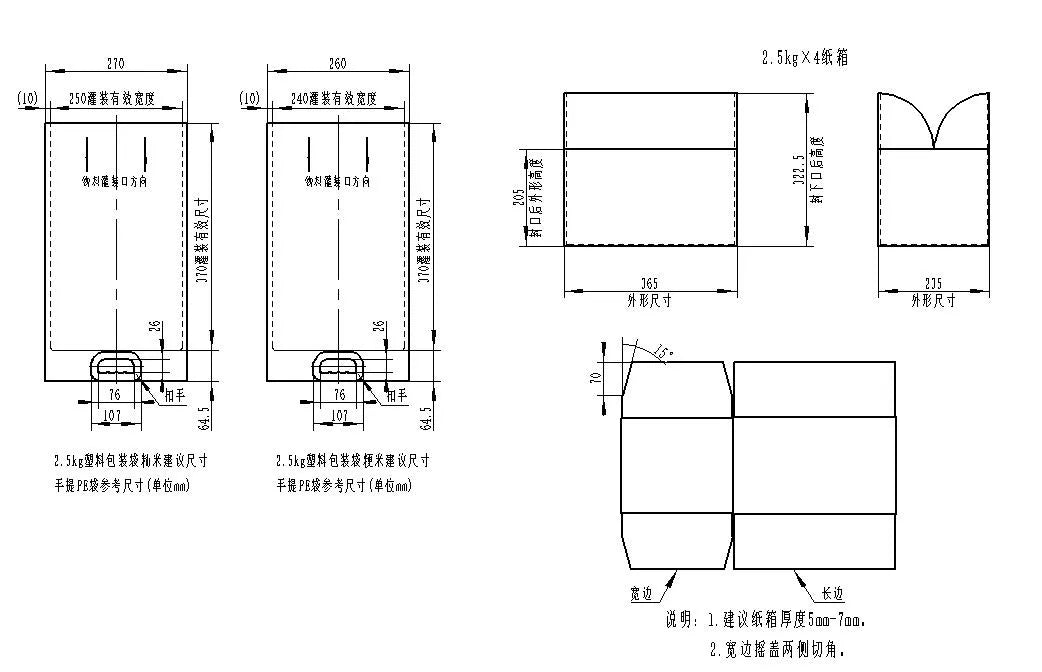

Packs per carton	2.5 kg × 4, 5 kg × 4, 10 kg × 3 (customizable)
Carton size (L × W × H)	365–510 × 225–340 × 205–305 mm	about 14.4–20.1 × 8.9–13.4 × 8.1–12.0 in
Repeatability	±1 mm	about ±0.04 in
Compressed air	83 L/min at 0.5–0.7 MPa	about 2.9 CFM at 73–102 psi
Power	380 V ±10%, 50 Hz, 3-phase 5-wire, 4 kW
Operating conditions	0–40 °C, ≤90% RH at 40 °C	32–104 °F
Grounding	TN-S

Components

Part	Brand
PLC	Omron (Japan)
Touch screen	MCGS (China)
Servo motor	Delta (Taiwan)
Vacuum pump	ZD (China)
Sensors	SICK (Germany) / Turck
Low-voltage electrics	Eaton / Chint
Relays	IDEC (Japan)
Pneumatics	AirTAC / Mindman

Custom brand requests are accepted.

Safety and build

Fully enclosed structure with interlocking devices
Self-check system with clear alarm prompts
CE (Machinery Directive, EN ISO 12100); manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
Each machine gets an electrical safety check and a trial run with real materials; test videos and inspection reports on request
