ZXJ-2400 2.5–10kg Automatic Vacuum Carton Packing System
ZXJ-2400 2.5–10kg Automatic Vacuum Carton Packing System
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers

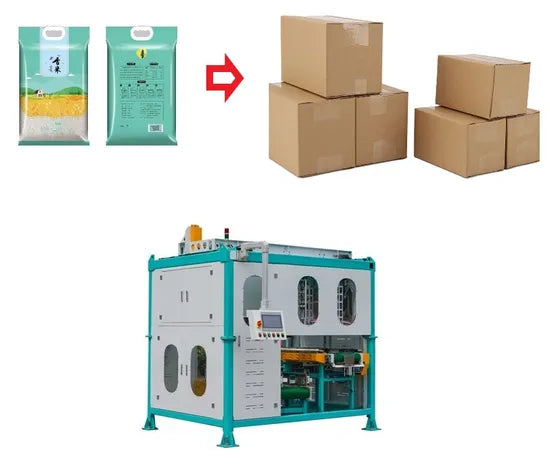

The ZXJ-2400 is a fully automatic, servo-driven case packer for 2.5–10 kg (5.5–22 lb) bagged rice, grain and dry food. It pre-arranges bags and then packs them, so it runs continuously at 2,400–2,800 bags per hour on the end of a high-speed vacuum or bagging line.
Speed depends on bag size and carton pattern. Tell us your bag and carton sizes and we will confirm the rate.
Is the ZXJ-2400 the right fit?
Good fit
- Rice mills casing vacuum bricks, pillow packs or two-side sealed bags
- Grain, seed and pulse packers shipping in cartons
- Dry food packers (coffee beans, nuts, pet food, sugar) in pre-made bags
- High-speed lines where hand casing is the bottleneck
- Plants that change pack size often (one-click changeover)
Look at another model if
- You want stacks rather than cartons: see the DBJ-1350 bag stacker
- You want a carry bag around each vacuum brick: see the TDJ-700
- You need bags or cases stacked on pallets: see the EC-171 palletizing robot
How it works in the line
-
Infeed
Bags arrive from the vacuum packer or bagger on the conveyor. -
Pre-arrangement
Bags are turned and lined up in the case pattern on separate stations. -
Packing
The arranged bags are packed into the case. Arranging first cuts repeated picking and placing, so the machine runs without stops. -
Discharge
Filled cases leave the machine for the palletizer.
Rice bag turning and straight handle-bag packing reduce case size and product damage in transport. Pack changes are one click on the HMI.

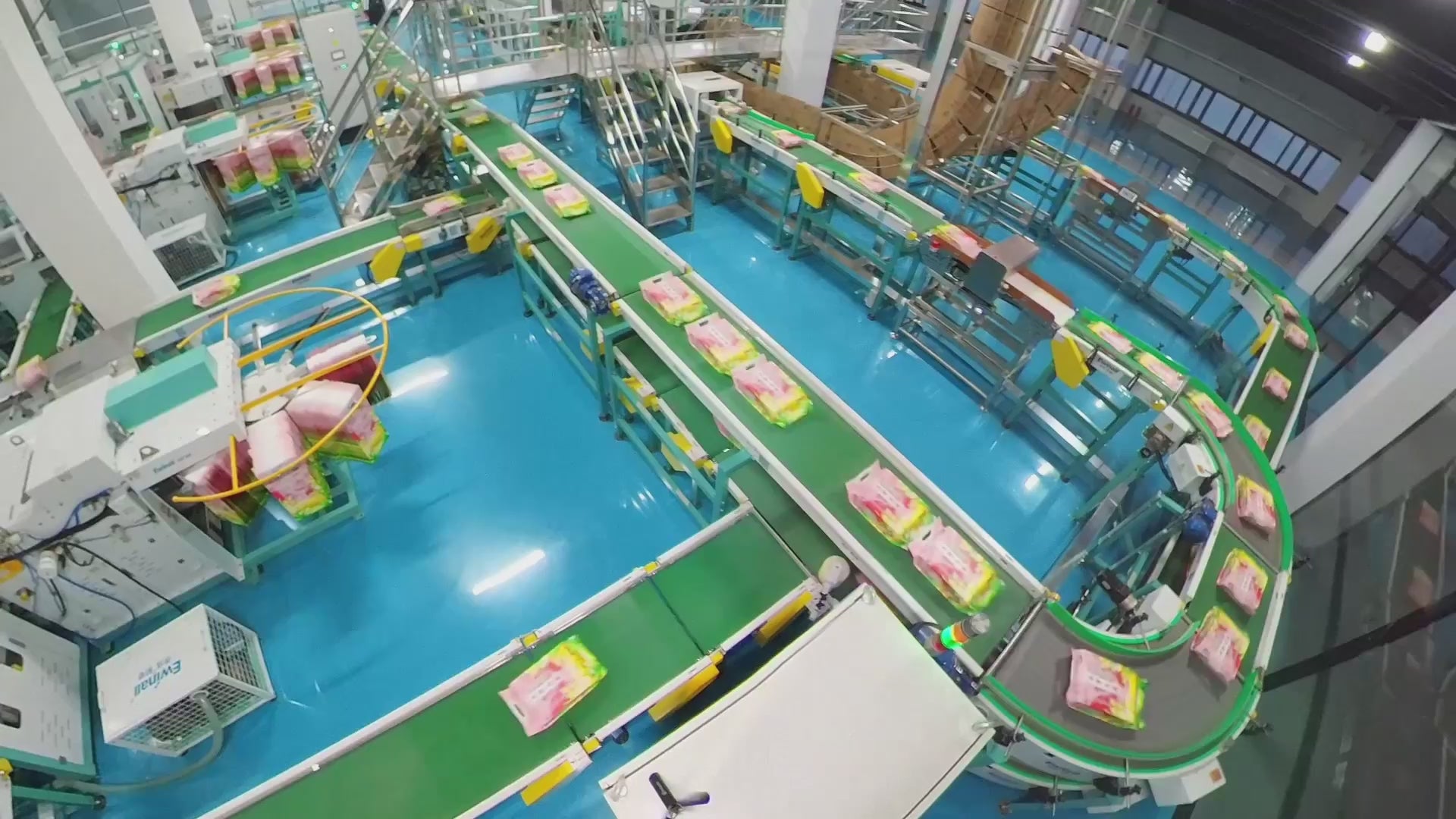

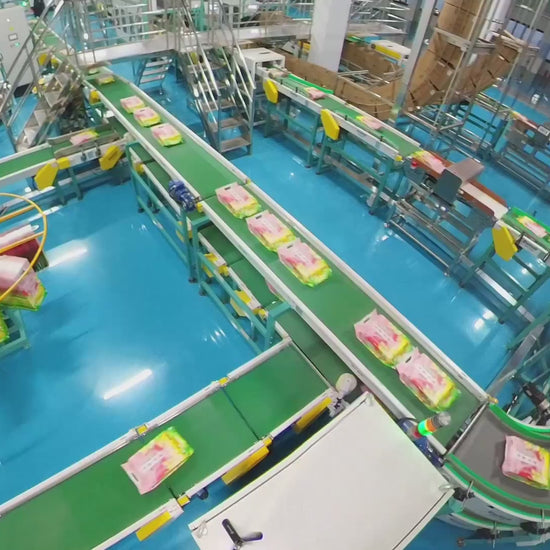

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 2.5–10 kg | 5.5–22 lb |
| Output | 2,400–2,800 bags/h | |
| Compressed air | 0.5–0.7 MPa, 133 L/min | about 73–102 psi, 4.7 CFM |
| Power | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 10 kW | Other voltages and 60 Hz on request |
| Grounding | TN-S | |
| Humidity | ≤90% RH at 40 °C (higher allowed at lower temperature) | at 104 °F |
| Footprint (L × W × H) | 6,110 × 1,960 × 2,570 mm | about 20.0 × 6.4 × 8.4 ft |
Safety and build
- Fully enclosed structure with safety interlocks
- HMI with fault self-diagnosis and clear prompts
- Servo drive for low noise and accurate placement
Add to the line
The ZXJ-2400 follows a vacuum packer or bagger, a check weigher and a metal detector, and feeds conveyors and a robot palletizer. We supply the full line and its layout drawing.
Get a quote for your line
To configure the case packer and give you a price, we need five things:
- Product and bag type (vacuum brick, pillow, handle bag)
- Bag weight and bag dimensions
- Carton size and how many bags per carton
- Target bags per hour
- Power supply (voltage and Hz)
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project.
