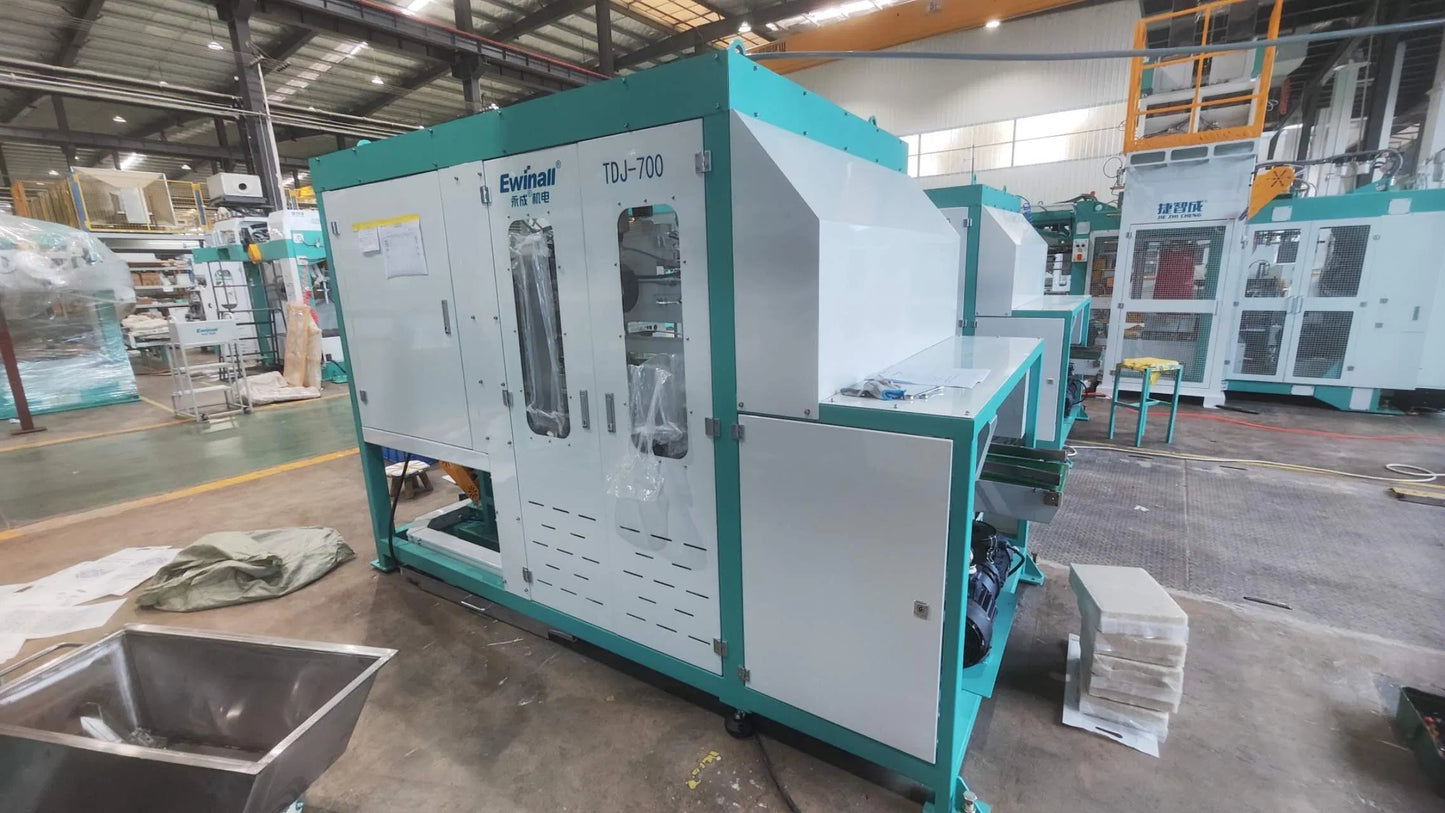

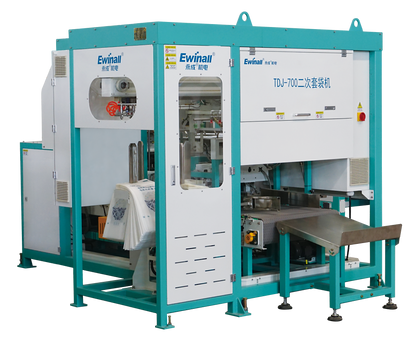

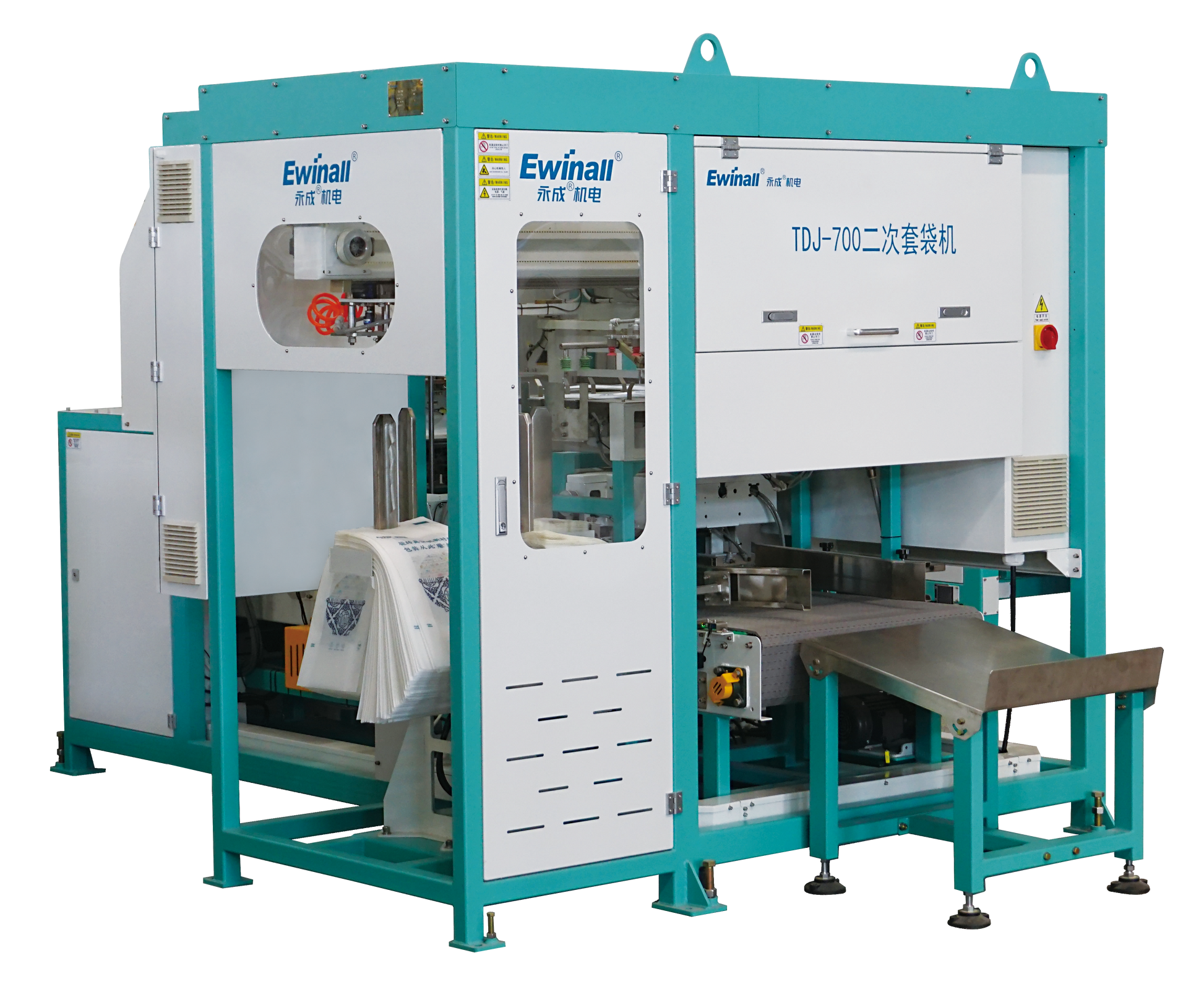

TDJ-700 2.5–5kg Grain Vacuum Packaging Machine for Grain & Seed Packaging

Name: TDJ-700 2.5–5kg Grain Vacuum Packaging Machine for Grain & Seed Packaging
Brand: Ewinall
Price: 4500.00 USD
Availability: InStock

Get a Quote WhatsApp

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

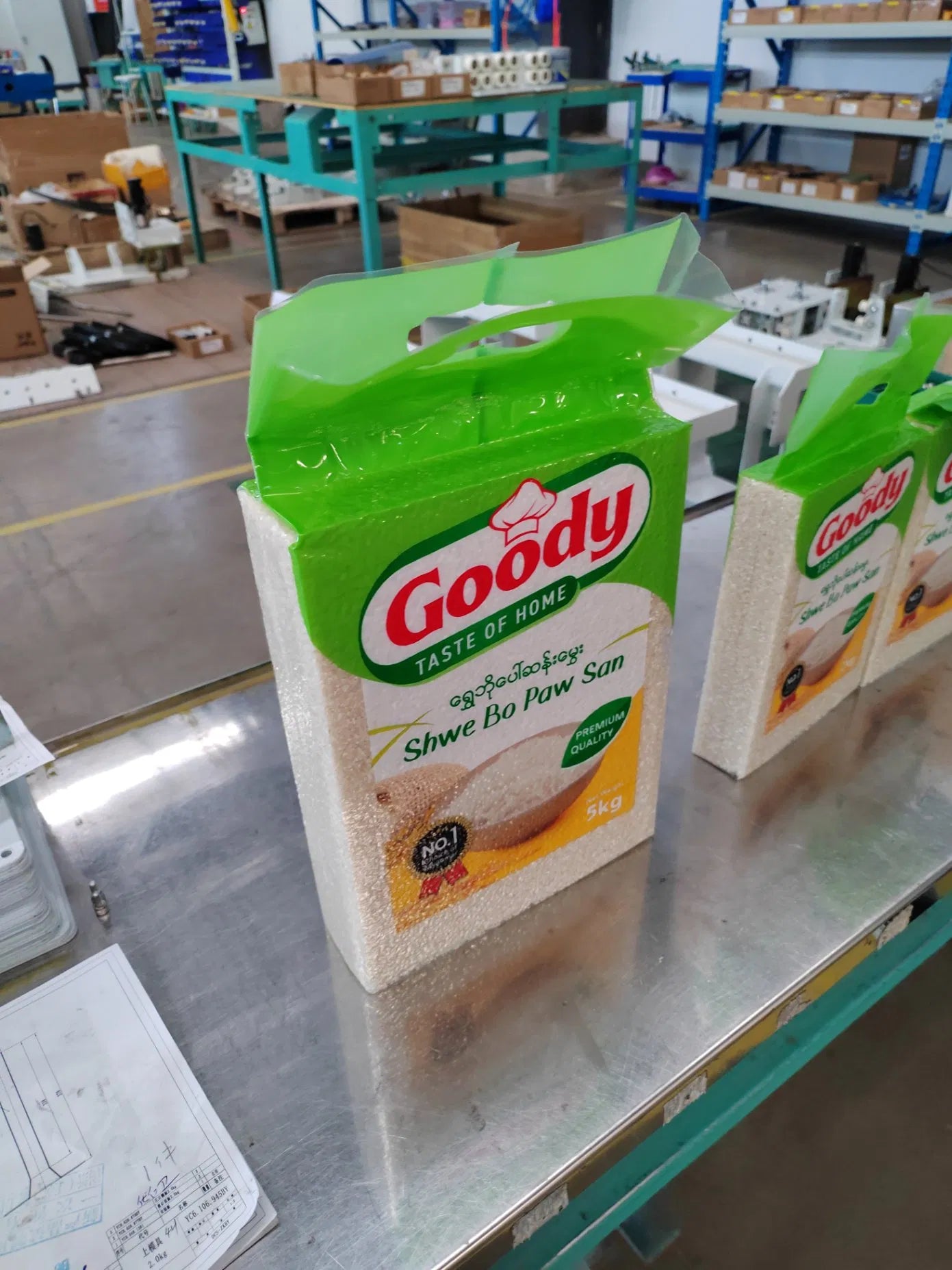

The TDJ-700 is a fully automatic secondary packer for rice and grain plants that already make six-sided vacuum bricks. It puts each 2.5–5 kg (5.5–11 lb) brick into a plastic outer bag with a hand-held buckle, at 500–660 bags per hour, so bricks reach the shelf protected and easy to carry.

2.5–5 kg5.5–11 lb per brick

500–660bags per hour

Outer bagfour-side closure with carry handle

5 kW380 V, 3-phase

Rates are test data for rice under specific conditions. Tell us your brick size and outer bag and we will confirm the rate.

Is the TDJ-700 the right fit?

Good fit

Rice mills packing six-sided vacuum bricks for retail
Grain and seed packers who want a carry bag around each brick
Exporters who need vacuum packs protected in transport
Lines where outer bags are now put on by hand

Look at another model if

You do not yet make vacuum bricks: start with the QZB-700S six-sided vacuum packer
You want bricks packed into cartons instead: see the ZXJ-2400 case packer
Your packs are 5–10 kg: see the ZDJ-1800 secondary bagging machine

How it works in the line

Infeed

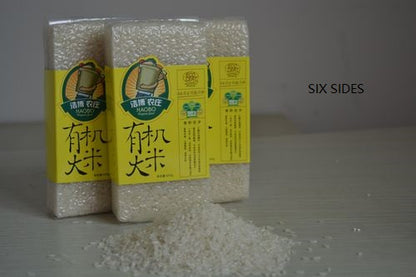

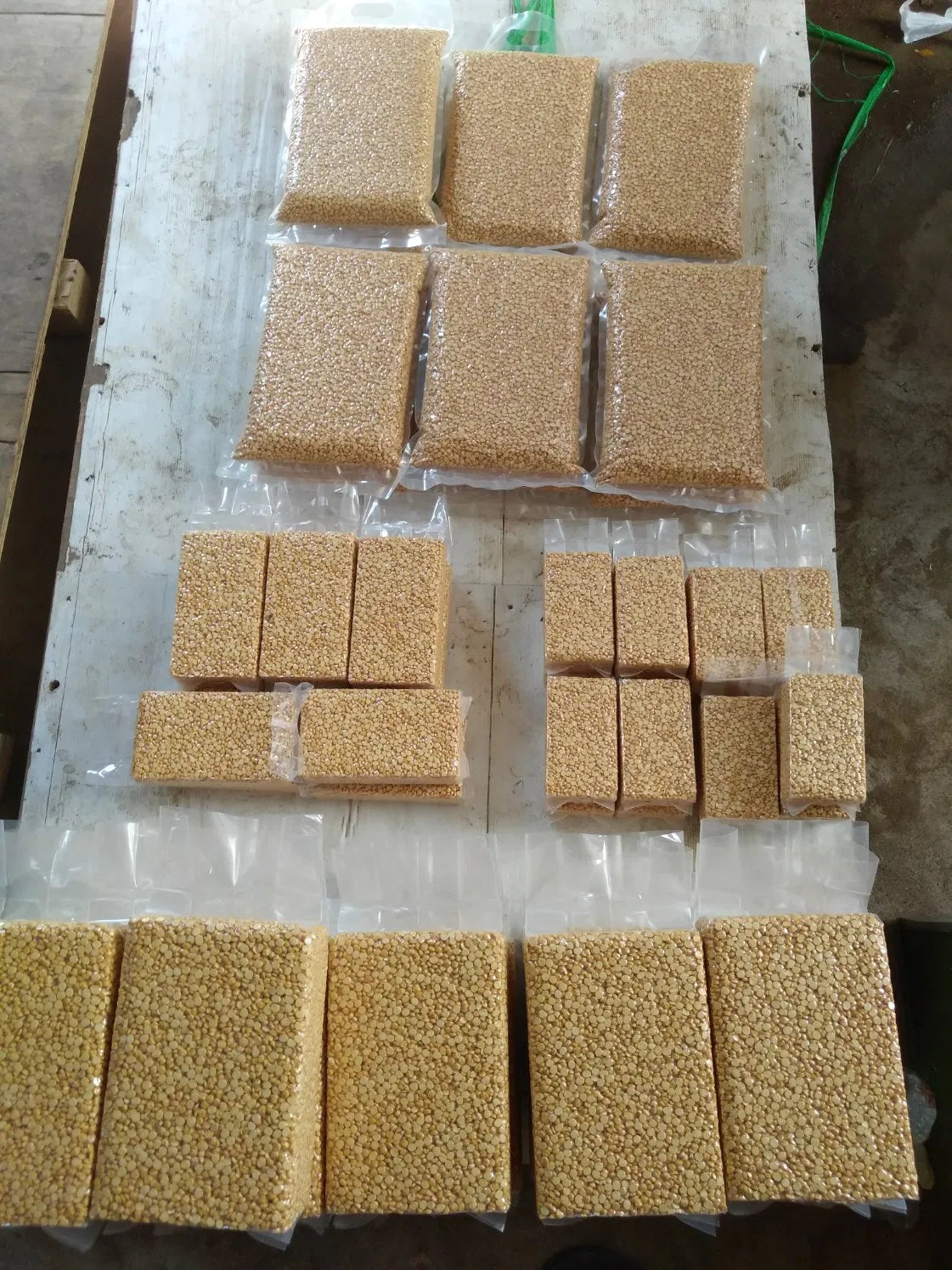

Six-sided vacuum bricks arrive from the vacuum packer.
Outer bagging
Each brick is packed automatically into a four-side closure plastic bag with a hand-held buckle.
Discharge
Finished retail packs leave the machine, protected for transport and easy to carry.

Technical specifications

Item	Metric	US units
Pack weight	2.5–5 kg	5.5–11 lb
Output	500–660 bags/h
Brick size limits	Width 180–230 mm, thickness 40–80 mm, height 230–350 mm	about 7.1–9.1 in, 1.6–3.1 in, 9.1–13.8 in
Outer bag	Four-side closure plastic bag with hand buckle
Compressed air	0.5–0.7 MPa, 24 m³/h	about 73–102 psi, 14 CFM
Power	AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 5 kW	Other voltages and 60 Hz on request
Humidity	≤90% RH at 40 °C (higher allowed at low temperature)	at 104 °F
Footprint (L × W × H)	2,976 × 2,140 × 2,251 mm	about 9.8 × 7.0 × 7.4 ft

Add to the line

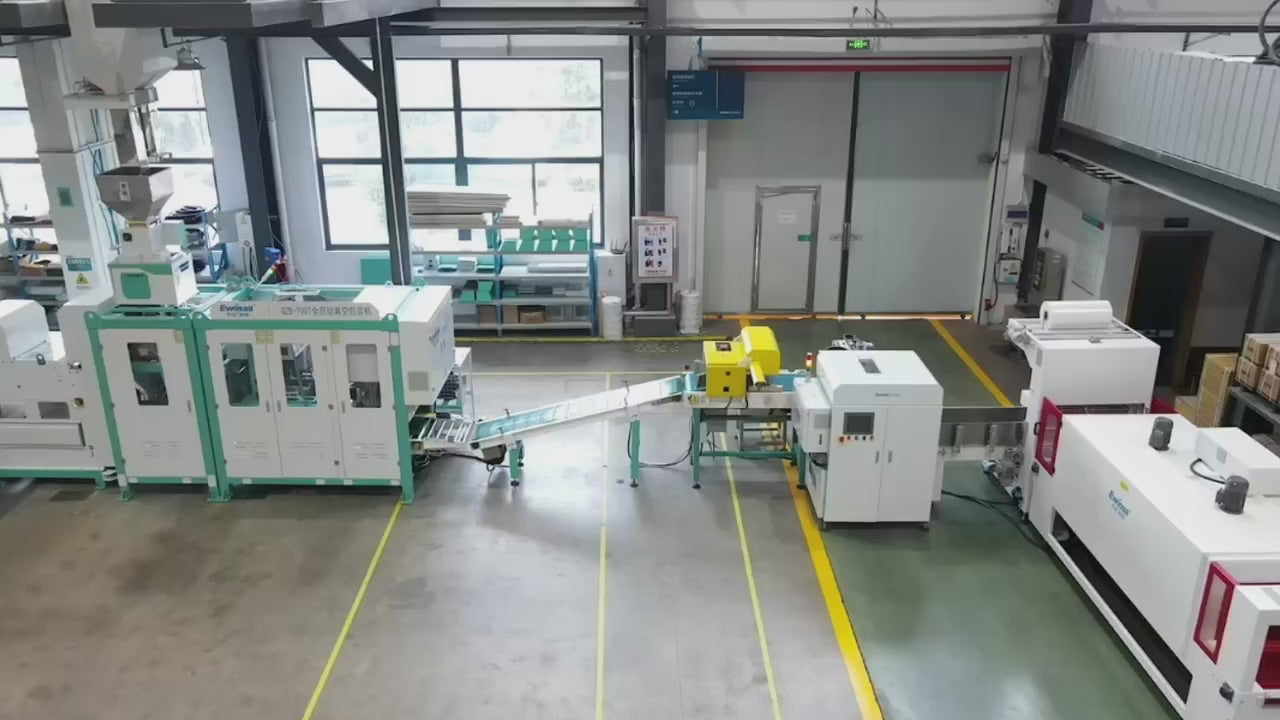

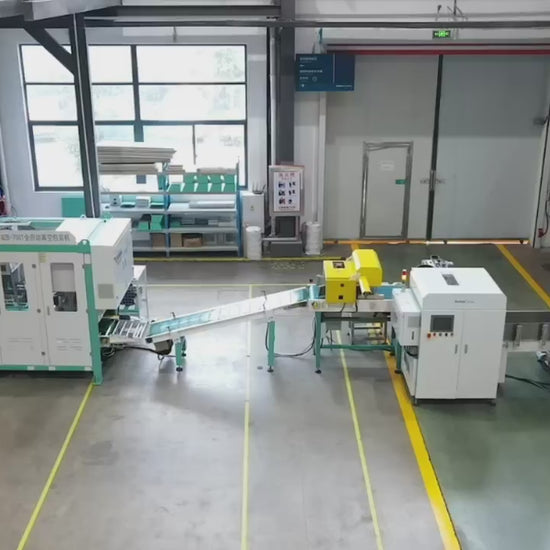

Place the TDJ-700 after a six-sided vacuum packer such as the QZB-700S. After it we can add a check weigher, conveyors, a case packer and a robot palletizer.
