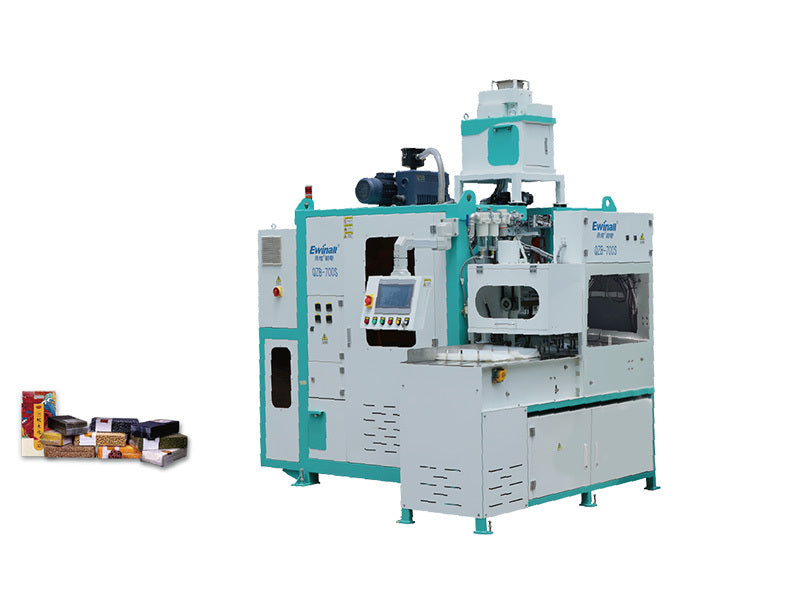

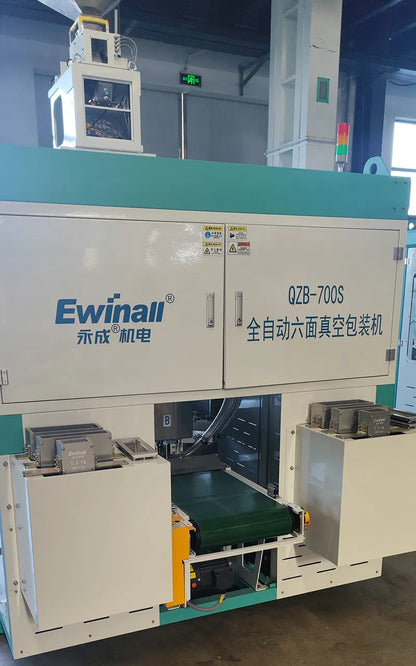

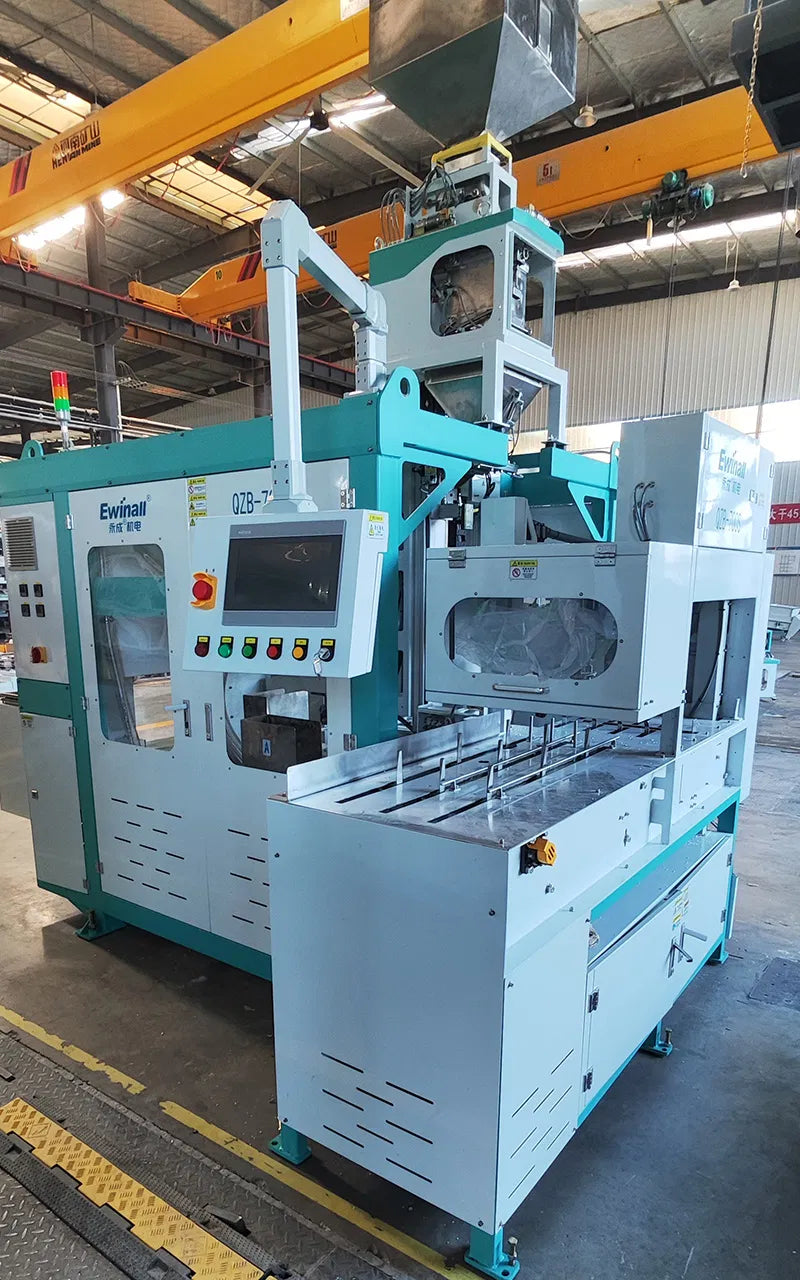

QZB-700S 0.5–5kg Automatic Six-Sided Rice Vacuum Packaging Machine

QZB-700S 0.5–5kg Automatic Six-Sided Rice Vacuum Packaging Machine

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

We use your details only to respond to your inquiry. Privacy policy.

A fully automatic six-sided vacuum packer for rice and grain brands that sell stackable 0.5–5 kg (1.1–11 lb) brick packs. It picks each bag from the magazine, fills, vacuums, seals and shapes it, and two shaping stations working in turn give 500–600 bricks per hour.

0.5–5 kg1.1–11 lb per brick
500–600bricks per hour
±0.2%weighing accuracy
2 stationsvacuum shaping, alternating

Speed depends on pack size, bag film and how freely the product flows. Tell us your product and bag size and we will confirm the rate.

Is the QZB-700S the right fit?

Good fit

  • Rice mills packing japonica, indica or basmati in brick packs
  • Grain, pulse and seed packers who want packs that stack well on pallets
  • Exporters who need airtight, retail-ready bricks
  • Plants reducing manual labor at the vacuum station

Look at another model if

  • You need 800–1,000 bricks per hour: see the QZB-1000S
  • Your packs are 2.5–10 kg pillow or two-side vacuum: see the QZB-700T
  • Your volume is small and an operator can place bags: see the DCS-ZKBY-B10

How one cycle works

  1. Bag picking
    The machine picks a bag from the bag magazine.

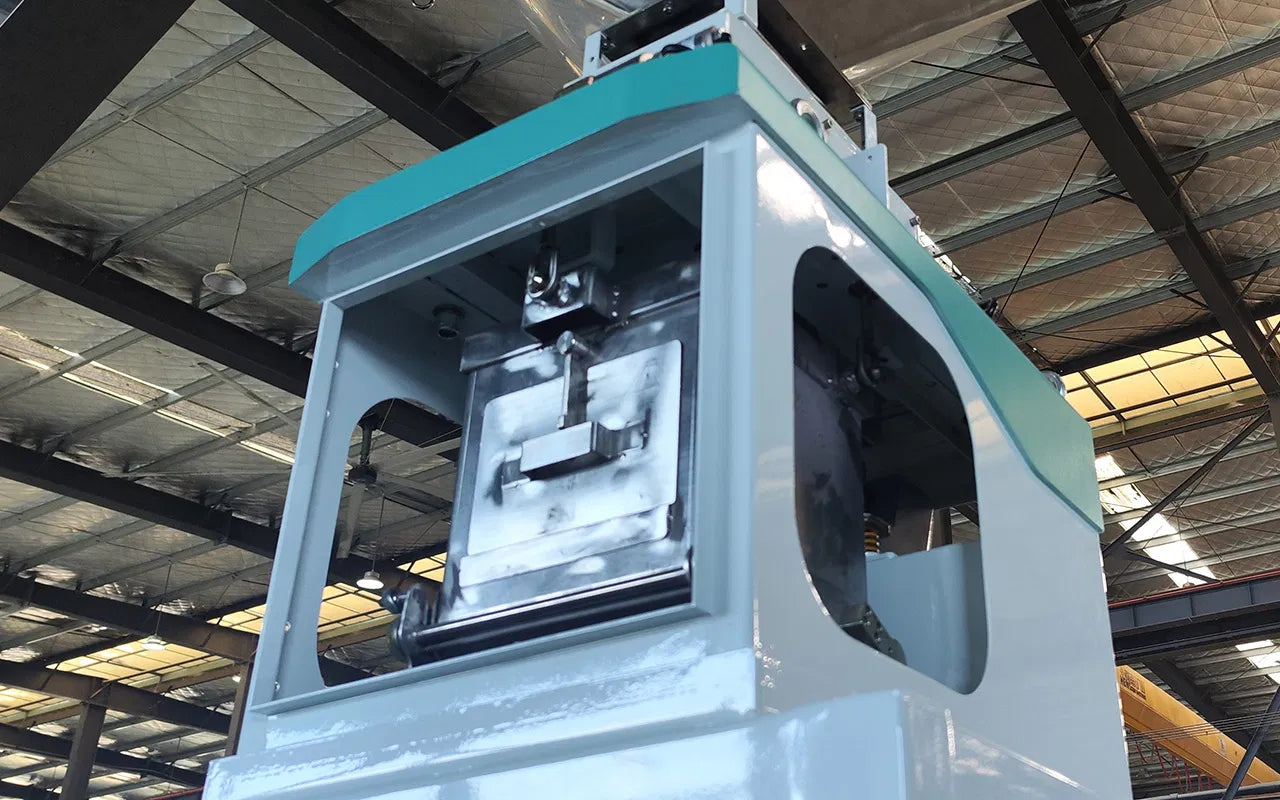

  2. Weighing
    Cylinder-driven feeding into a three-load-cell scale in a sealed chamber.
  3. Filling
    The weighed product is filled into the bag.
  4. Vacuum and sealing
    The bag is vacuumed and heat sealed.

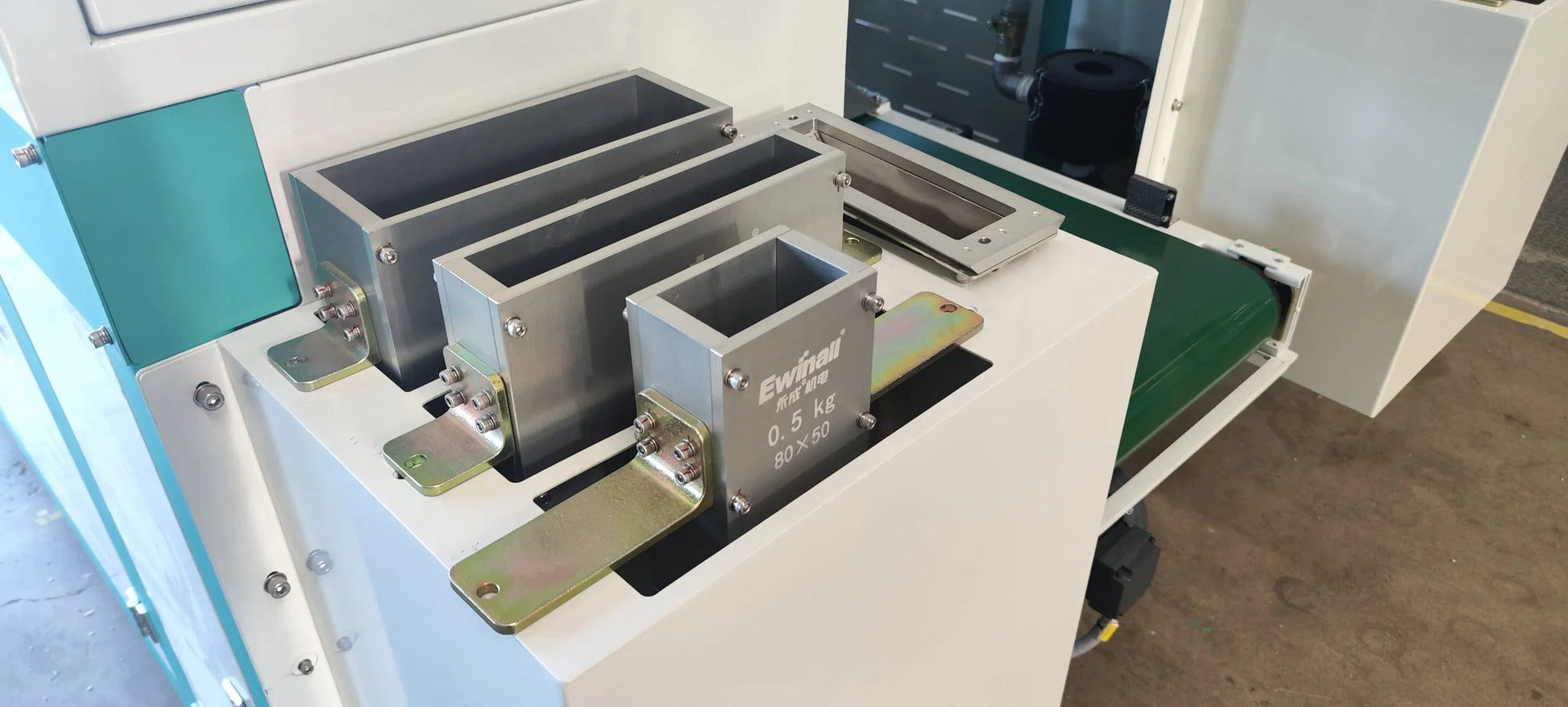

  5. Brick shaping
    One of two shaping stations forms the six-sided brick while the other works the next bag.

Pack size changes are one tap on the touch screen; the PLC and servo drive reset the machine.

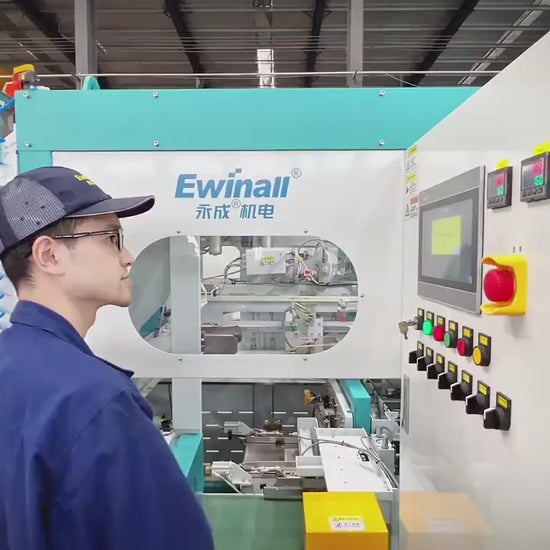

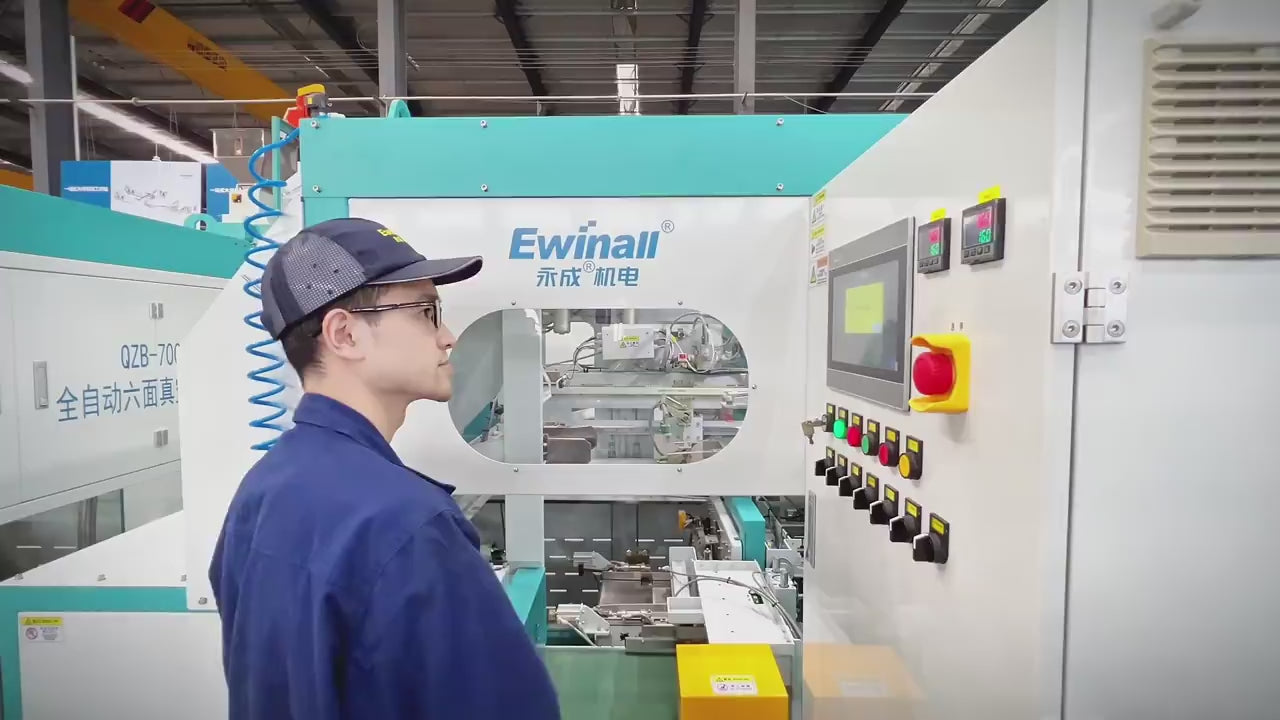

Watch it run

Technical specifications

Item Metric US units
Pack weight 0.5–5 kg 1.1–11 lb
Output 500–600 bricks/h
Weighing accuracy ±0.2%
Bag type PE composite film plastic bag (anti-leak, anti-break)
Bag size (W × T × L) 80–235 × 40–80 × 250–480 mm about 3.1–9.3 × 1.6–3.1 × 9.8–18.9 in
Vacuum shaping stations Two
Compressed air pressure 0.5–0.7 MPa about 73–102 psi
Power AC 380 V ±10%, 50 Hz, 3-phase 5-wire TN-S, 6 kW Other voltages and 60 Hz on request
Operating conditions 0–40 °C, ≤90% RH at 40 °C 32–104 °F
Footprint (L × W × H) 3,041 × 2,406 × 2,840 mm about 10.0 × 7.9 × 9.3 ft

Bag size reference for rice

Pack Bag and brick size
0.5 kg (1.1 lb) Bag 255 × 80 × 50 mm (L × W × T); brick height 136 mm
1 kg (2.2 lb) Bag 325 × 100 × 60 mm; brick height 181 mm
2.5 kg (5.5 lb) Bag 430 × 220 × 40 mm; brick height 309 mm
5 kg (11 lb) Bag 465 × 228 × 78 mm; brick height 306 mm

For rice with a bulk density of about 0.9–0.92 kg/L. Actual brick size varies with bulk density. For secondary bagging or cartoning, allow 5–10 mm; bag width and thickness should have negative tolerance (-2 mm recommended). We can help with bag design.

Components

Part Brand / type
Load cells Mettler Toledo / HBM
Control PLC with touch screen, servo drive

Safety and build

  • Fully enclosed structure with safety interlocks, which also keeps foreign objects out
  • Weighing components in a sealed chamber against dust and corrosion
  • Fault self-diagnosis with alarm prompts

Add to the line

Options include a second bagging unit, a cartoning system and a robot palletizer. For a carry bag around each brick, add the TDJ-700. A check weigher and metal detector can be added after the vacuum packer.

Get a quote for your plant

To size the machine and give you a price, we need five things:

  • Product (for example jasmine rice, beans, seed)
  • Pack weights you need
  • Bag type and size, or a photo of your current bag
  • Target packs per hour or tons per shift
  • Power supply (voltage and Hz)
