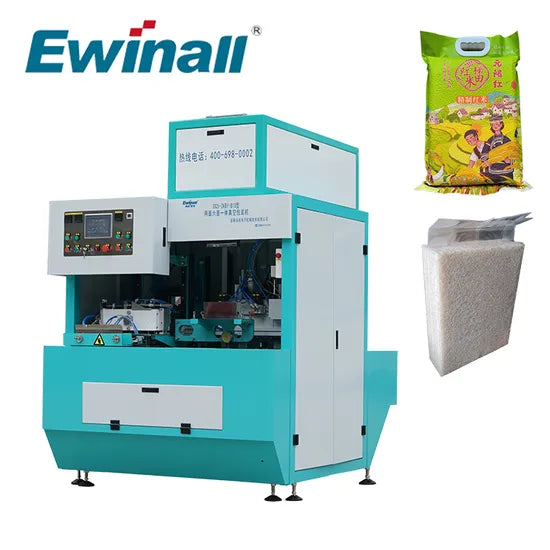

Ewinall DCS-ZKBY-B10 0.25‑10kg Brick & Pillow Shape Vacuum Packing Machine – Two‑Side & Six‑Side Sealing for Rice, Grains & Coffee

Name: Ewinall DCS-ZKBY-B10 0.25‑10kg Brick & Pillow Shape Vacuum Packing Machine – Two‑Side & Six‑Side Sealing for Rice, Grains & Coffee
Brand: Ewinall
Price: 25410.00 USD
Availability: InStock

Get a Quote WhatsApp

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

One semi-automatic machine that makes both pillow (two-side) and brick (six-side) vacuum packs on a single frame. It suits rice, grain and coffee packers who sell 0.25–10 kg (about 0.55–22 lb) pillow packs and 0.25–5 kg (0.55–11 lb) bricks and do not want two machines on the floor.

0.25–10 kg0.55–22 lb pillow; bricks to 5 kg (11 lb)

240–300packs per hour

±0.2% F.S.2 g graduation

2 shapespillow and brick on one frame

Rated speed: pillow 240 packs/h, brick 300 packs/h, based on standard rice. Your product and bag will change this; send them and we will confirm.

Is the DCS-ZKBY-B10 the right fit?

Good fit

Rice mills selling both pillow and brick retail packs
Coffee roasters packing whole beans (degassing-valve bags are compatible)
Grain, pulse and seed packers with many small SKUs
Plants short on floor space: 1,535 × 1,810 mm footprint
Small to medium lines where an operator places each bag

Look at another model if

You only need pillow packs and want more speed: see the DCS-ZKBC-10 (500–600 packs/h)
You need fully automatic brick packs at 800–1,000 per hour: see the QZB-1000S
You pack 2.5–10 kg bags automatically: see the QZB-700T

How one cycle works

Bag placing
The operator places the bag at the pillow or brick station.
Weighing and filling
A digital load cell doses the set weight with 2 g graduation.
Vacuum
Vacuum level is adjustable from -0.08 to 0 MPa.
Sealing and shaping
Upper and lower heat bars seal in one pass; the brick station forms six flat sides.

Vacuum time and sealing temperature are set on the touch screen and stored as recipes. Both stations can work at the same time.

Watch it run

Technical specifications

Item	Metric	US units
Pack weight, pillow	0.25–10 kg	about 0.55–22 lb
Pack weight, brick	0.25–5 kg	about 0.55–11 lb
Output	Pillow 240 packs/h; brick 300 packs/h
Weighing error	±0.2% F.S. (2–5 g typical)
Graduation	2 g	about 0.07 oz
Vacuum level	-0.08 to 0 MPa, adjustable	about -11.6 to 0 psi
Compressed air	0.6 MPa, 1.2 m³/h	about 87 psi, 0.7 CFM
Power	AC 380 V ±5%, 50 Hz, 5 kW (3.5 kW typical cycle)	Other voltages and 60 Hz on request
Footprint (L × W × H)	1,535 × 1,810 × 2,213 mm	about 5.0 × 5.9 × 7.3 ft
Operating conditions	0–40 °C, ≤90% RH at 40 °C	32–104 °F
Control	Touch screen, semi-automatic
Product contact parts	Stainless steel SS304

Components

Part	Brand / type
Pneumatic cylinders	AirTAC / SMC
Weighing	Digital load cell
Control	Touch screen with recipe settings

Safety and build

Emergency stop and sealed work chamber
SS304 stainless steel on all product-contact surfaces, easy to clean
Manufacturer certified to ISO 9001, ISO 14001 and ISO 45001; CE (Machinery Directive)

Add to the line

Add a check weigher, metal detector and conveyors after the DCS-ZKBY-B10, or a cartoner for shipping cases. We supply the line and its layout drawing.
