QZB-700T Automatic Vacuum Packaging Machine | 2.5–10kg
QZB-700T Automatic Vacuum Packaging Machine | 2.5–10kg
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers

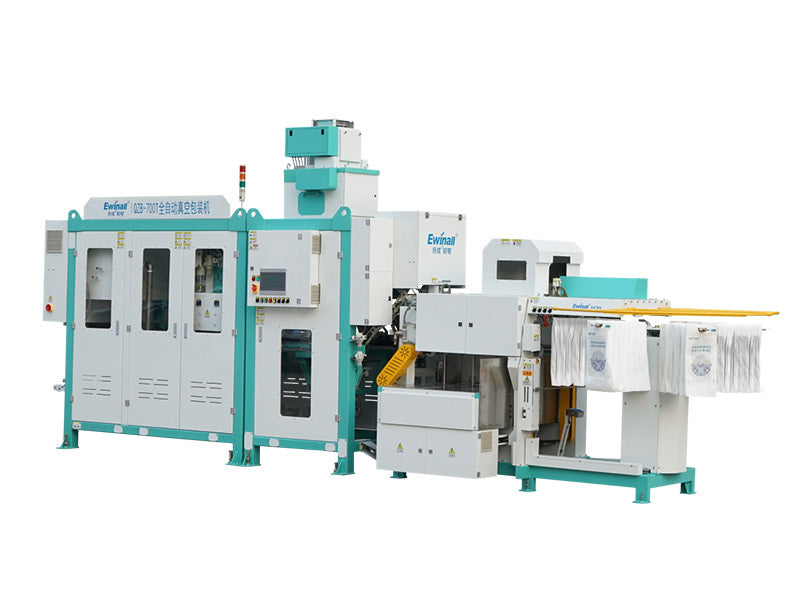

A fully automatic vacuum packer for rice, grain and seed plants that sell 2.5–10 kg (5.5–22 lb) packs. One machine makes two-side vacuum, false six-side vacuum and soft pillow packs in flat or handle plastic bags, at 600–700 packs per hour.
Speed depends on pack size, bag film and how freely the product flows. Tell us your product and bag size and we will confirm the rate.
Is the QZB-700T the right fit?
Good fit
- Rice mills packing basmati, jasmine, japonica or parboiled rice
- Grain, seed and pulse packers with medium to high volume
- Packers who sell both flat bags and handle bags
- Plants that want several pack styles from one machine
Look at another model if
- You need 1,100–1,400 packs per hour: see the QZB-1200T
- You need gas flush packing: see the QZB-1600T
- Your packs are 0.5–5 kg bricks: see the QZB-1000S
- An operator can place bags and you need under about 600 packs per hour: see the DCS-ZKBC-10
How one cycle works
-
Bag feeding
The combined feeder takes flat or handle bags from a large multi-station magazine. -
Weighing
Cylinder-driven feeding into a three-sensor scale. -
Filling
The weighed product is filled into the bag. -
Vacuum and sealing
The bag is vacuumed and heat sealed at the vacuum station. -
Shaping
A separate shaping station squares the pack before discharge.
Separate vacuum and shaping stations mean seal quality and pack shape do not compete for cycle time. Recipes are stored on the PLC touch screen.

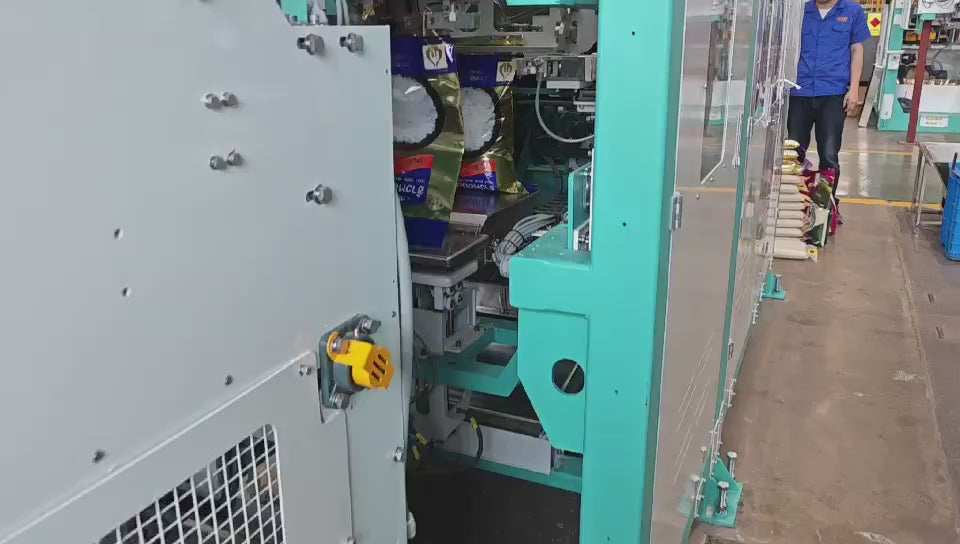

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Pack weight | 2.5–10 kg | 5.5–22 lb |
| Output | 600–700 packs/h | |
| Weighing accuracy | ±0.2% | |
| Bag type | Plastic bag: flat, buckle or handle | |
| Pack styles | Two-side vacuum, false six-side vacuum, soft pack (pillow) | |
| Closing | Heat sealing | |
| Compressed air | 0.5–0.7 MPa, 52 m³/h | about 73–102 psi, 31 CFM |
| Power | AC 380 V ±10%, 50 Hz, 3-phase 5-wire TN-S, 8 kW | Other voltages and 60 Hz on request |
| Operating conditions | 0–40 °C, ≤90% RH | 32–104 °F |
Safety and build
- Obstacle detection with self-test and fault prompts
- PLC control with real-time monitoring
Add to the line
The QZB-700T can be integrated with an automatic bagging system, conveyors and a palletizer, with a check weigher and metal detector after the vacuum packer.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example long-grain rice, beans, seed)
- Pack weights and pack style (two-side, false six-side or pillow)
- Bag type (flat or handle bag) and size, or a photo
- Target packs per hour or tons per shift
- Power supply (voltage and Hz)
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project.
