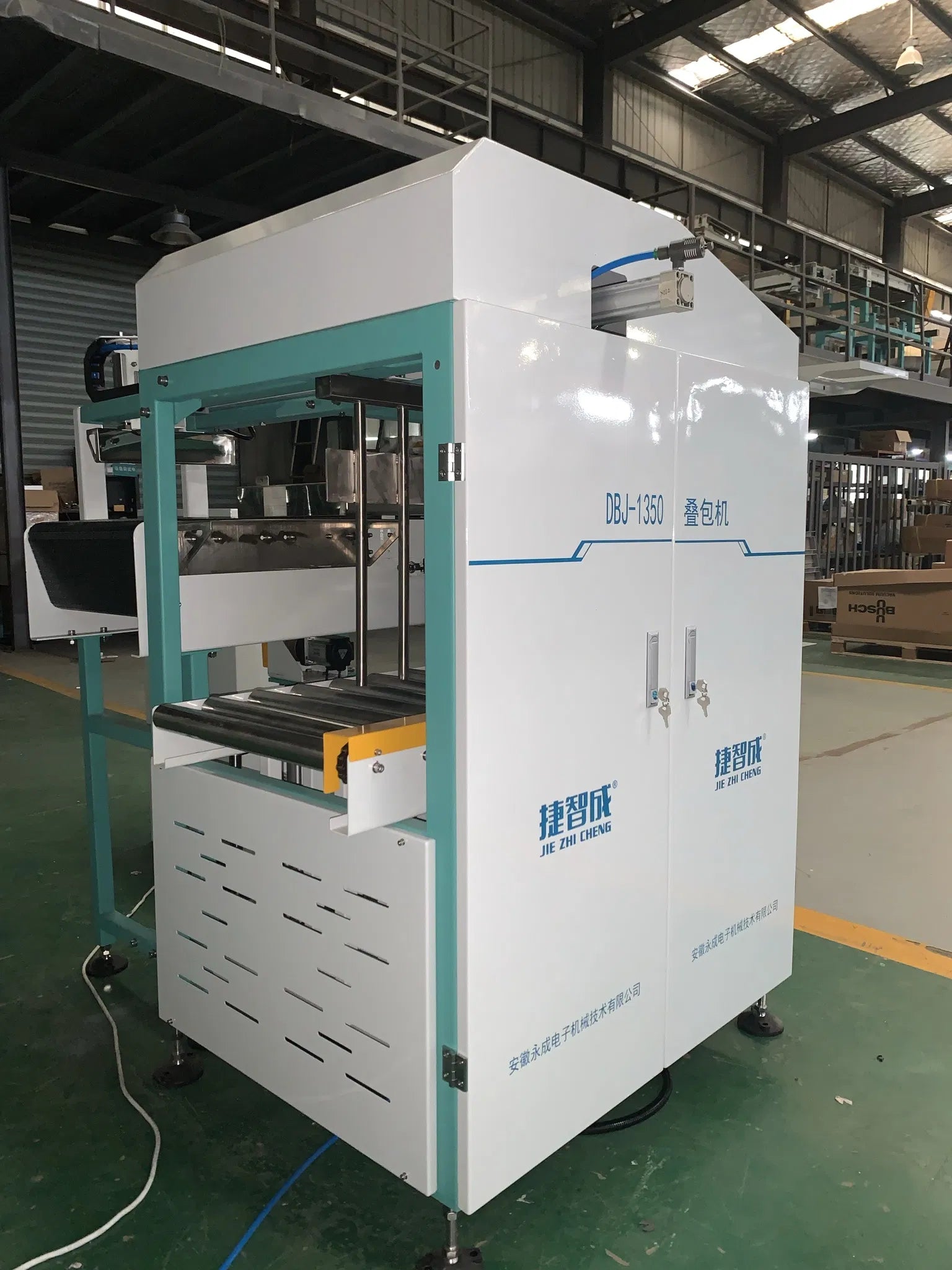

The DBJ-1350 is an automatic bag stacker for the end of a vacuum packing or bag filling line. It takes finished bags off the conveyor and builds neat, stable stacks ready for storage, shrink wrapping or palletizing, so nobody has to pile bags by hand.
Autobag stacking off the conveyor
PLC + HMIstacking recipes on touch screen
4 bag typesvacuum, paper, plastic, woven
1.68 m5.5 ft long footprint
Is the DBJ-1350 the right fit?
Good fit
Rice mills and rice packing plants stacking vacuum packs
Flour mills and bakery ingredient suppliers
Grain elevators and seed plants
Sugar, salt and spice packers
Feed, pet food, chemical powder and fertilizer bagging lines
You need outer carry bags around vacuum bricks: see the TDJ-700
How it works in the line
Infeed A synchronized belt conveyor takes bags from the upstream vacuum packer or filler at matching speed.
Positioning Bags are handled gently so packs are not deformed.
Stacking Bags are placed by the set number per layer, layers per stack and interlocking pattern.
Discharge Finished stacks leave for storage, wrapping or palletizing.
Recipes for different products are recalled on the HMI; stack height and bag count can be changed while running, and bag size changes take minutes.
Watch it run
Technical specifications
Item
Metric
US units
Machine type
Automatic bag stacking machine for vacuum and non-vacuum bags
Bag types
Vacuum bags, paper, plastic, woven sacks, laminated film
Products
Rice, flour, grains, seeds, powders, granules
Stacking
Adjustable bags per layer, layers per stack and pattern
Drive
Electric
Control
PLC + HMI touch screen
Footprint (L × W × H)
1,680 × 1,070 × 1,942 mm
about 5.5 × 3.5 × 6.4 ft
HS code
8422400090
Transport package
Export sea-worthy carton / pallet
Safety and build
Robust steel frame with electric actuators
Open structure for easy cleaning and maintenance
Gentle bag handling to prevent bag damage
Add to the line
The DBJ-1350 sits after vacuum packing machines, automatic filling and weighing machines, check weighers and metal detectors, and before palletizing or wrapping. Customization for your bag dimensions and stacking pattern is available.
Get a quote for your line
To configure the stacker and give you a price, we need five things:
Bag or pack type (vacuum pack, woven, paper, plastic)
Bag dimensions and weight
Stack pattern you need (bags per layer, layers)
Line speed of the upstream machine in bags per hour
