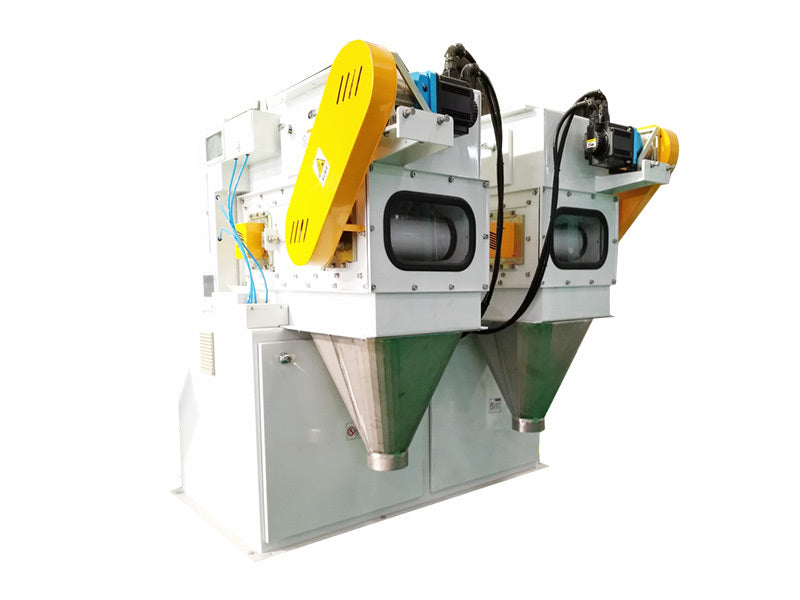

DCS-60BK-B 50–70kg Servo Belt Scale for High-Precision Weighing & Feeding
DCS-60BK-B 50–70kg Servo Belt Scale for High-Precision Weighing & Feeding
Scope of Application
Suitable for quantitative packaging of granular materials with good fluidity, such as meal, poultry feed, bran, puffed soybean powder, and similar products. Ideal for industrial quantitative packing lines.
Key Features
1. Stable Three-Sensor Weighing Structure
Equipped with a three-sensor weighing system and servo-controlled feeding, ensuring stable operation and high weighing accuracy.
2. Upper Computer Communication
Supports communication with a host (upper) computer, enabling production monitoring and data management.
3. Flexible System Configuration
The load-bearing structure size allows integration with automatic packaging machines or semi-automatic packing scales, providing flexible system solutions for different production requirements.
|
Model |
DCS-60BK-B |
|
Weighing range |
(50-70) kg |
|
Division value |
10g |
|
Weighing error |
±0.2%F.S |
|
Packaging capacity |
(600-660) bags/hour |
|
Power supply/power consumption |
4N-AC380V±5% 50Hz；4KW |
|
Gas source/gas consumption |
0.4~0.5Mpa, compressed air 26L/min |
|
Ambient temperature |
(0~40)℃ |
|
Ambient humidity |
Not more than 90% RH at 40 ℃, |
|
Length x Width x Height (mm) |
1857x1730x1585mm |
