Ewinall BZD-200Z Semi-Automatic Large Bag Vacuum Packing Machine – 12.5-25kg Dual-Shape Vacuum & Outer Bag Sewing System
Ewinall BZD-200Z Semi-Automatic Large Bag Vacuum Packing Machine – 12.5-25kg Dual-Shape Vacuum & Outer Bag Sewing System
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
🔹 Heavy-duty large pack vacuum packing – 12.5-25kg, dual-shape (brick & pillow), with outer woven bag sewing capability.

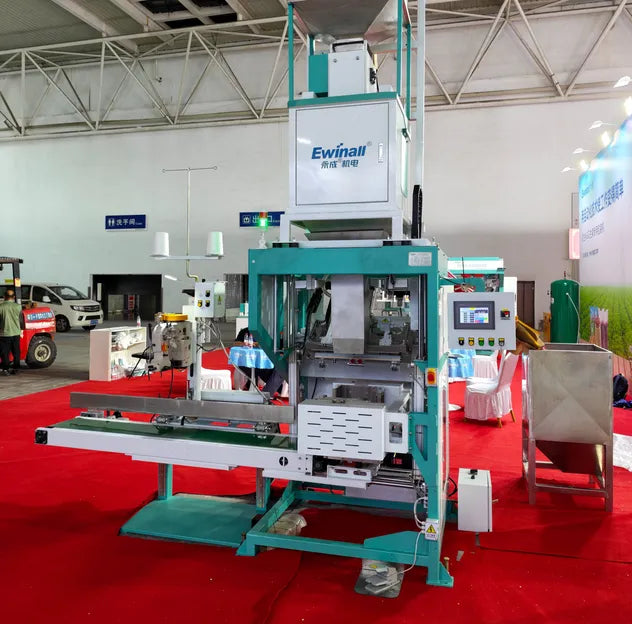

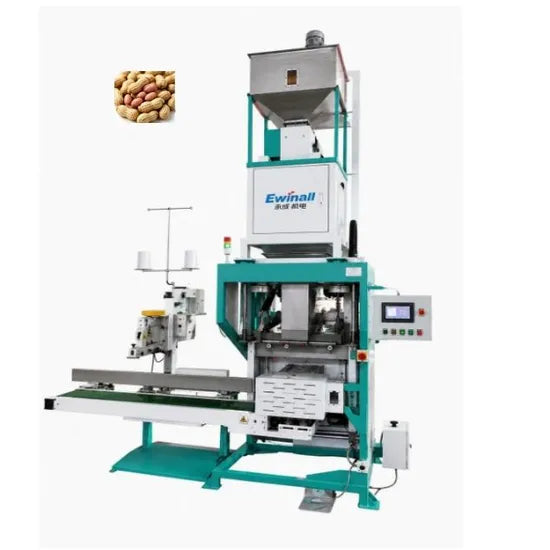

The Ewinall BZD-200Z semi-automatic large packaging vacuum machine is designed to bring high-end vacuum preservation to bulk quantities. Handling 12.5 to 25kg bags of peanuts, grains, and large granular materials, it features a unique mold system that supports both two-sided and six-sided brick shapes with a 3-minute changeover. Best of all, it accommodates a double-layer packaging process: vacuum-sealing the inner PE bag, then seamlessly sewing the pre-fitted outer woven bag. It’s the ultimate solution for export-grade bulk packaging that demands both extended shelf life and physical protection.

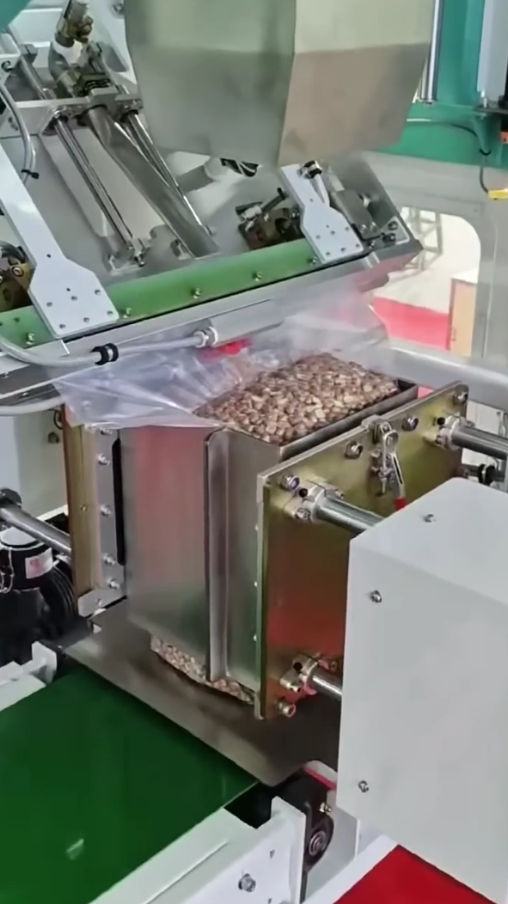

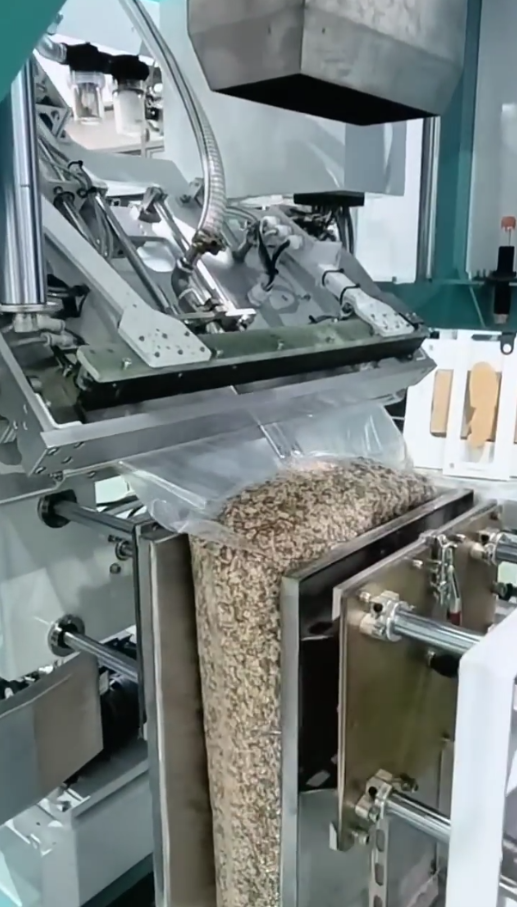

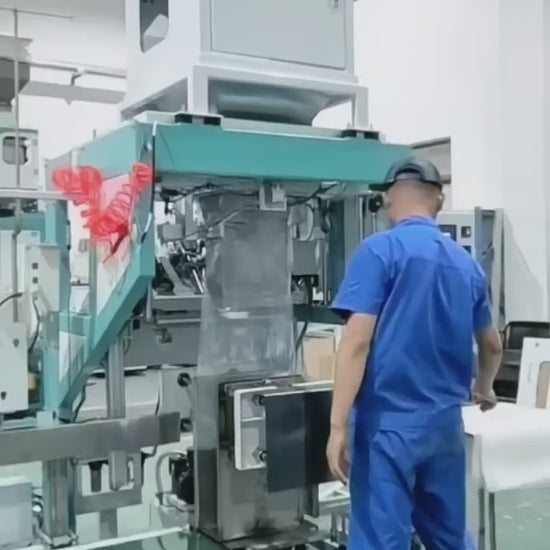

Watch the BZD-200Z Vacuum Seal 25kg Peanut Bags & Sew Outer Woven Bags
✨ Key Features of BZD-200Z

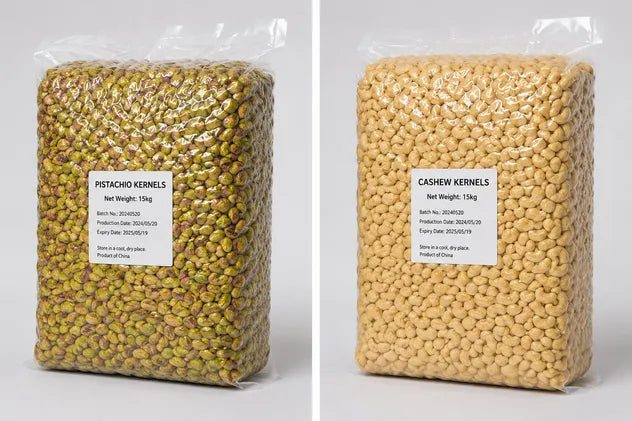

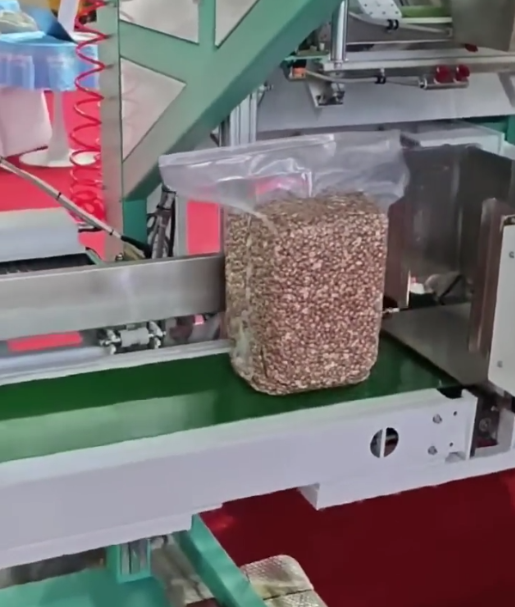

Integrated mold design supports both six-sided (brick) and two-sided (pillow) vacuum packaging. Adaptable to different retail and bulk presentation needs.
Features a dual-layer packaging function. After vacuum-sealing the inner PE bag, the machine automatically sews the pre-fitted outer woven bag for maximum physical protection.
Switching between 2-sided and 6-sided shapes requires adjusting only 3 positions. Quick-change design maximizes uptime for flexible production.

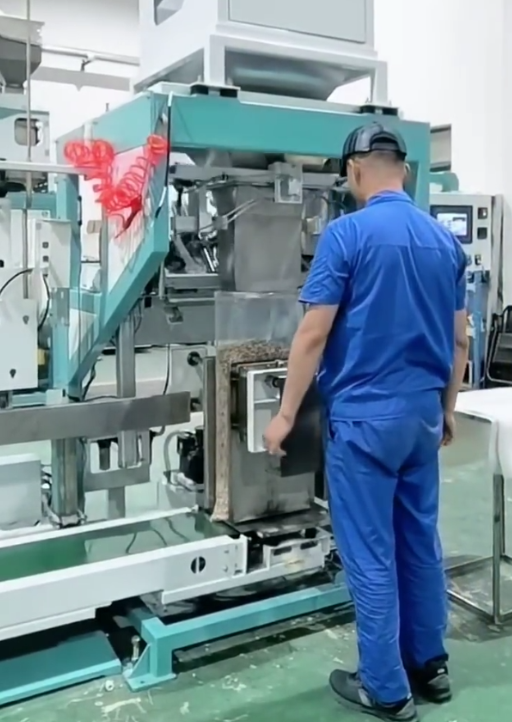

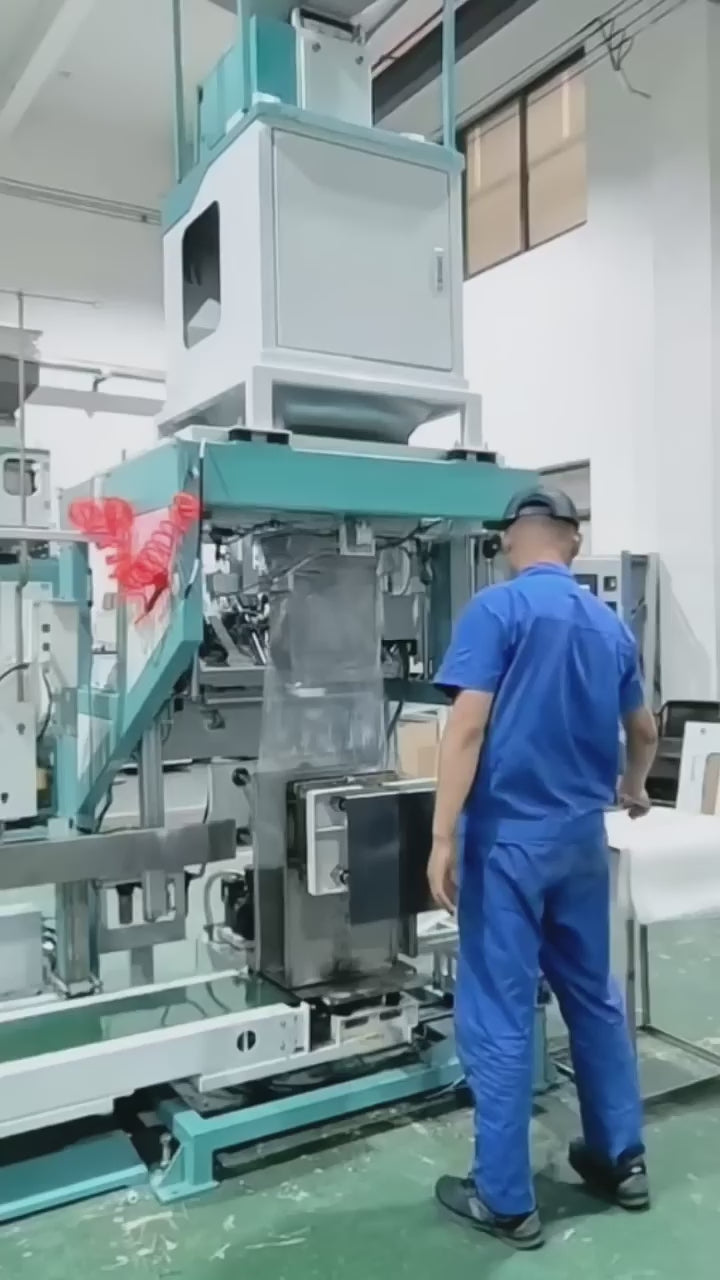

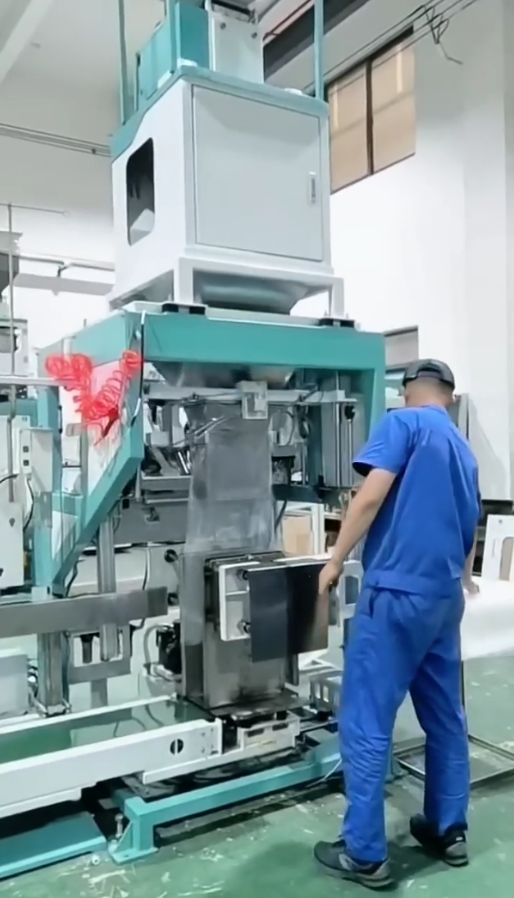

Manual bag placement and opening, followed by automatic filling, vacuuming, shaping, and sealing. Simplifies operation while reducing labor intensity.
Centralized PLC control with auto-positioning. Store system parameter formulations for different products and switch specs with one touch.
Separate cylinder-driven feeding with all weighing components housed in a sealed chamber. Minimizes corrosion, dust ingress, and wear for long-term accuracy.
Built-in fault detection prompts on the screen for quick troubleshooting. Maintenance is simple and downtime is kept to an absolute minimum.
Structurally enclosed design with safety interlock mechanisms. Protects operators during the high-pressure vacuum and heat-sealing cycles.
📊 Technical Specifications – BZD-200Z
| Model | BZD-200Z |
| Packaging range | 12.5 – 25 kg (depending on material bulk density) |
| Packaging speed | 120 – 180 bags/hour (tested with peanuts) ~120 bags/hour for double-layer (vacuum + outer sewing) |
| Division value | 5 g |
| Accuracy level | X(0.5) / GB/T 27738 |
| Bag type | Single-edge PE bag (inner) + outer woven bag |
| Max bag size (mm) | Length: 400 – 1000 mm Width: 300 – 600 mm |
| Air source / consumption | 0.5 – 0.7 MPa ; 300 L/min |
| Power supply / consumption | AC380V ±5%, 50Hz, 3-phase 5-wire ; 3 kW |
| Working environment | 0 – 40°C ; humidity ≤90% at 40°C |

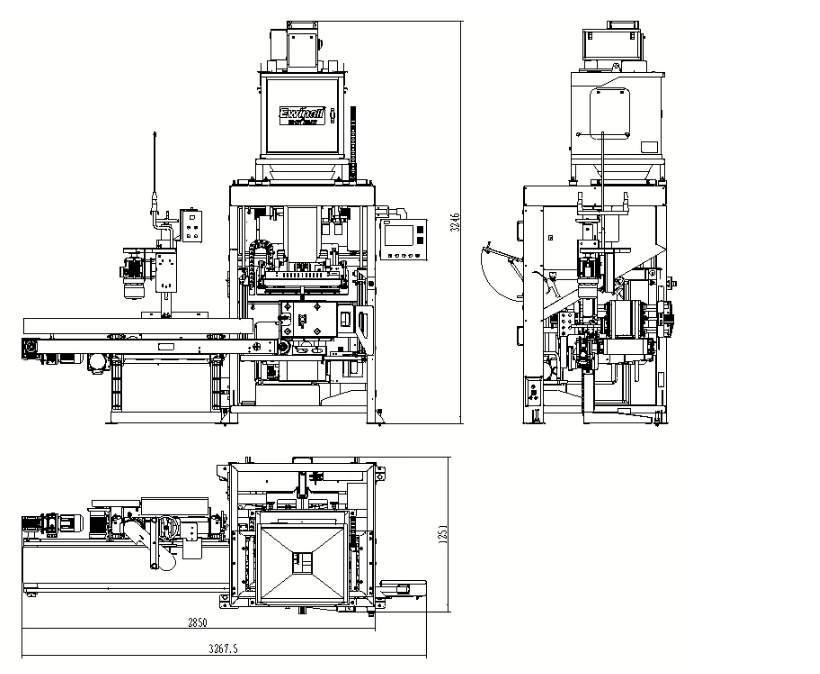

| Dimensions (L×W×H) | 3270 × 1255 × 3250 mm |
*Speed based on peanuts. Actual output varies with material characteristics, manual bagging speed, and hopper feeding. Installation, calibration, and training included.
🔧 Complete System Configuration
The BZD-200Z is a fully integrated packaging unit comprising:
🌾 Ideal for Bulk Vacuum Packing of Large Granules
The BZD-200Z is the perfect large bag vacuum packing machine for products that need airtight preservation in 12.5-25kg formats:
🔎 Frequently searched as: large bag vacuum packing machine, 25kg vacuum packer, peanut vacuum packaging machine, heavy duty vacuum sealer, double layer bag vacuum machine, six-sided brick vacuum packer, inner PE outer woven bag packaging, machine d'emballage sous vide grand format, máquina de vacío para bolsas grandes. Contact us for a material and bag test.
🏭 Why EWINALL – Heavy-Duty Vacuum Packing Partner Since 2000
Ewinall Packaging Machine Co., Ltd. has engineered packaging systems for the agricultural and food industries for over two decades. The BZD-200Z solves the unique challenge of vacuuming large 25kg packs – delivering high-quality, brick-shaped seals that protect bulk commodities during long-distance shipping. We provide complete support, from factory testing with your material to on-site installation and training.
Large Pack Expertise
We understand the dynamics of vacuuming 25kg bags and designing molds that prevent material damage.
Global Support
Remote video diagnostics, on-site commissioning, and fast spare parts delivery worldwide.
Turnkey Integration
Combine the BZD-200Z with conveyors, check weighers, and palletizers for a complete heavy-duty packing line.
📜 Certifications & Quality Assurance
Every BZD-200Z undergoes a rigorous vacuum leak test and dual-shape mold trial with real materials before shipment.
