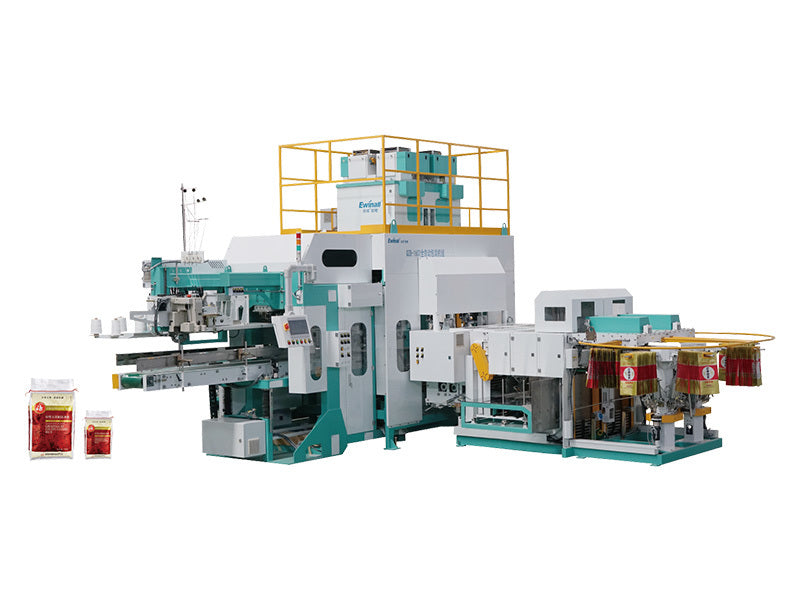

QZB-1600 5-25kg Fully Automatic Woven Bag Packaging Machine
QZB-1600 5-25kg Fully Automatic Woven Bag Packaging Machine
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
Two fill stations on one frame for plants that bag 5–25 kg (11–55 lb) woven PP bags all day. While one bag is filled and sewn, the next is already placed and opened, so output reaches 700–1,400 bags per hour without adding operators.
Speed depends on bag size and how freely the product flows. Tell us your product and bag size and we will confirm the rate.
Is the QZB-1600 the right fit?
Good fit
- Rice mills and exporters packing 10–25 kg retail or wholesale bags
- Seed, grain and pulse packers running long shifts at peak season
- Feed mills bagging pellets in 25 kg woven bags
- Sugar and fertilizer plants with free-flowing granules
- Lines where a single-station bagger is the bottleneck
Look at another model if
- Your bags are 50 lb / 25–50 kg and above: see the QZB-600M
- You need heat-sealed film bags instead of sewn woven bags
- You fill valve bags
- Your output is under about 300 bags per hour: a semi-automatic scale costs far less
How one cycle works
-
Bag feeding
The feeder picks a flat, buckle-handle or edge-folded woven bag. -
Opening and clamping
The bag is opened and held under the spout. -
Weighing
A servo-driven feeder doses into a three-load-cell scale in a sealed chamber. -
Filling
The bag is released only after the target weight is confirmed. -
Sewing
The bag is sewn and conveyed out while the second station fills.
Product changes are a recipe on the touch screen: scale target, bag size and sewing position are stored per product.

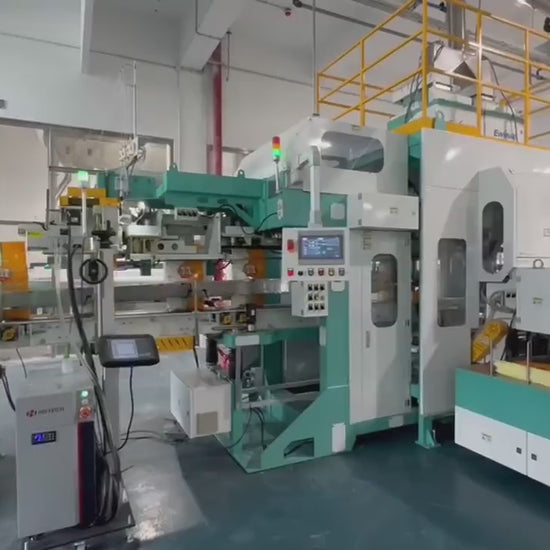

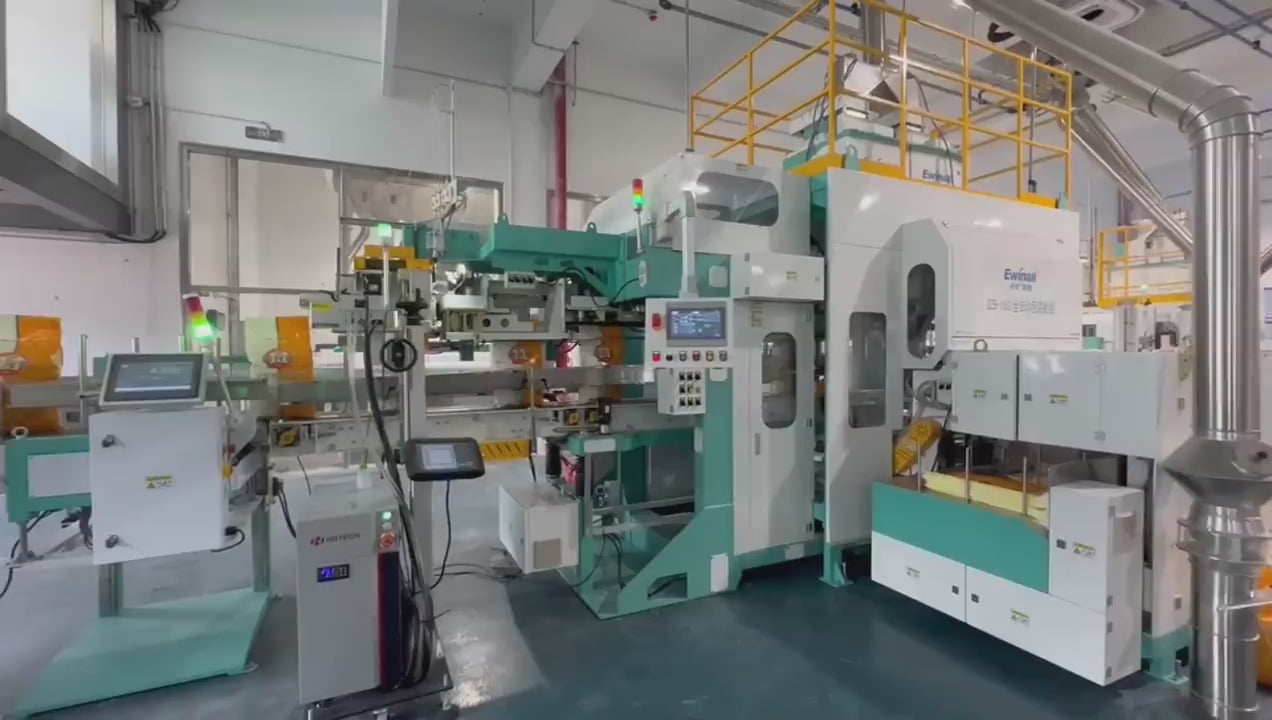

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 5–25 kg | 11–55 lb |
| Output | 700–1,400 bags/h | 700–1,400 bags/h |
| Bag type | Woven PP: flat, buckle-handle, edge-folded (double-side coated preferred) | |
| Closing | Sewing | |
| Compressed air | 50 m³/h at 0.5–0.7 MPa | about 29 CFM at 73–102 psi |
| Power | 380 V ±10%, 50 Hz, 3-phase 5-wire, 12 kW | Other voltages and 60 Hz on request |
| Footprint (L × W × H) | 6,030 × 4,860 × 3,585 mm | about 19.8 × 15.9 × 11.8 ft |
| Operating conditions | 0–40 °C, ≤90% RH | 32–104 °F |
| Grounding | TN-S | |
Components
| Part | Brand |
|---|---|
| PLC | Omron (Japan) |
| Touch screen | MCGS |
| Servo motors and drives | Inovance |
| Pneumatics | SMC (Japan) / Airtac (Taiwan) |
| Photoelectric sensors | Sick (Germany) |
| Proximity switches | Omron (Japan) |
| Low-voltage electrics | Eaton, with overload and leakage protection |
Widely available brands, so spare parts can be sourced locally in most countries.
Safety and build
- Full perimeter guarding with interlocked doors; chains and bearings enclosed
- Powder-coated heavy steel frame for dusty, humid mill environments
- Scale components sealed against dust
- CE (Machinery Directive); manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
Add to the line
The QZB-1600 can be connected to a check weigher, metal detector, bag conveyors and a robot palletizer. We supply the full line and its layout drawing.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example long-grain rice, feed pellets, seed)
- Bag weight and bag type
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project. 1-year warranty on mechanical and electrical parts.
