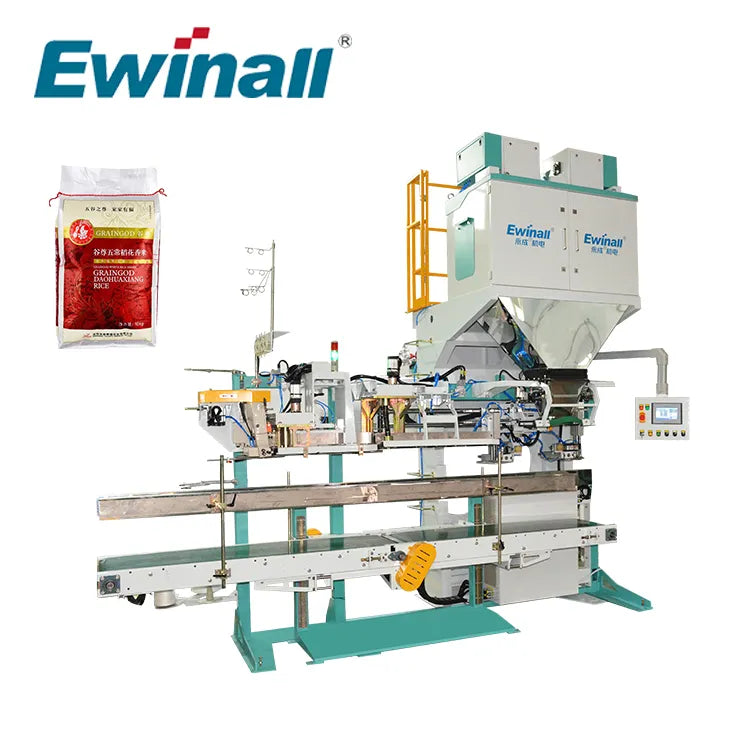

BZD-50ZE2 25–50kg Semi-Automatic Packing Machine for Grain & Seed Packaging
BZD-50ZE2 25–50kg Semi-Automatic Packing Machine for Grain & Seed Packaging
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
A semi-automatic bagging unit for 25–50 kg (55–110 lb) flat open-mouth bags of rice, peanuts, grain and granular chemicals. The operator slides the bag on and triggers the clamp; the machine fills, settles and releases the bag at 400–500 bags per hour. Two versions: BZD-50ZE2-BZ for peanuts and BZD-50ZE2-M for rice.
Performance was tested with specific materials. Output depends on the product and operating conditions.
Is the BZD-50ZE2 the right fit?
Good fit
- Rice millers and grain processors
- Peanut and nut processors
- Chemical and fertilizer plants packing granules
- Ports, warehouses and logistics hubs bagging bulk commodities
How one cycle works
-
Place the bag
The operator slides the bag on and taps the clamp lever. -
Weigh
Three load cells under the weigh hopper; drop correction compensates for material in flight. -
Fill and settle
The bag is filled and the product settles. -
Release
The bag is released; out-of-tolerance bags trigger an alarm.
Target weight and speed are set on the color touch screen. Manual mode works the fill door, vibrator and bag release from the panel to clear clumped material.
Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Versions | BZD-50ZE2-BZ (peanuts), BZD-50ZE2-M (rice) | |
| Companion packaging scale | DCS-50FE3-BZ or DCS-50FE2-B | |
| Bag weight | 25–50 kg | 55–110 lb |
| Division | 10 g | about 0.35 oz |
| Output | 400–500 bags/h | 400–500 bags/h |
| Bag type | Flat open-mouth bags | |
| Bag size (W × L), BZ | 450–680 × 700–1,200 mm | about 17.7–26.8 × 27.6–47.2 in |
| Bag size (W × L), M | 450–650 × 750–1,000 mm | about 17.7–25.6 × 29.5–39.4 in |
| Compressed air | 12 m³/h at 0.5–0.7 MPa | about 7.1 CFM at 73–102 psi |
| Power | 3-phase 380 V ±10%, 50 Hz, 3 kW | |
| Footprint (L × W × H) | 4,470 × 1,516 × 3,507 mm or 4,271 × 1,452 × 3,495 mm, by version | about 14.7 × 5.0 × 11.5 ft or 14.0 × 4.8 × 11.5 ft |
| Humidity | ≤90% RH, non-condensing | |
Safety and build
- Over-weight alarm on every bag
- Manual mode for the fill door, vibrator and bag release
Add to the line

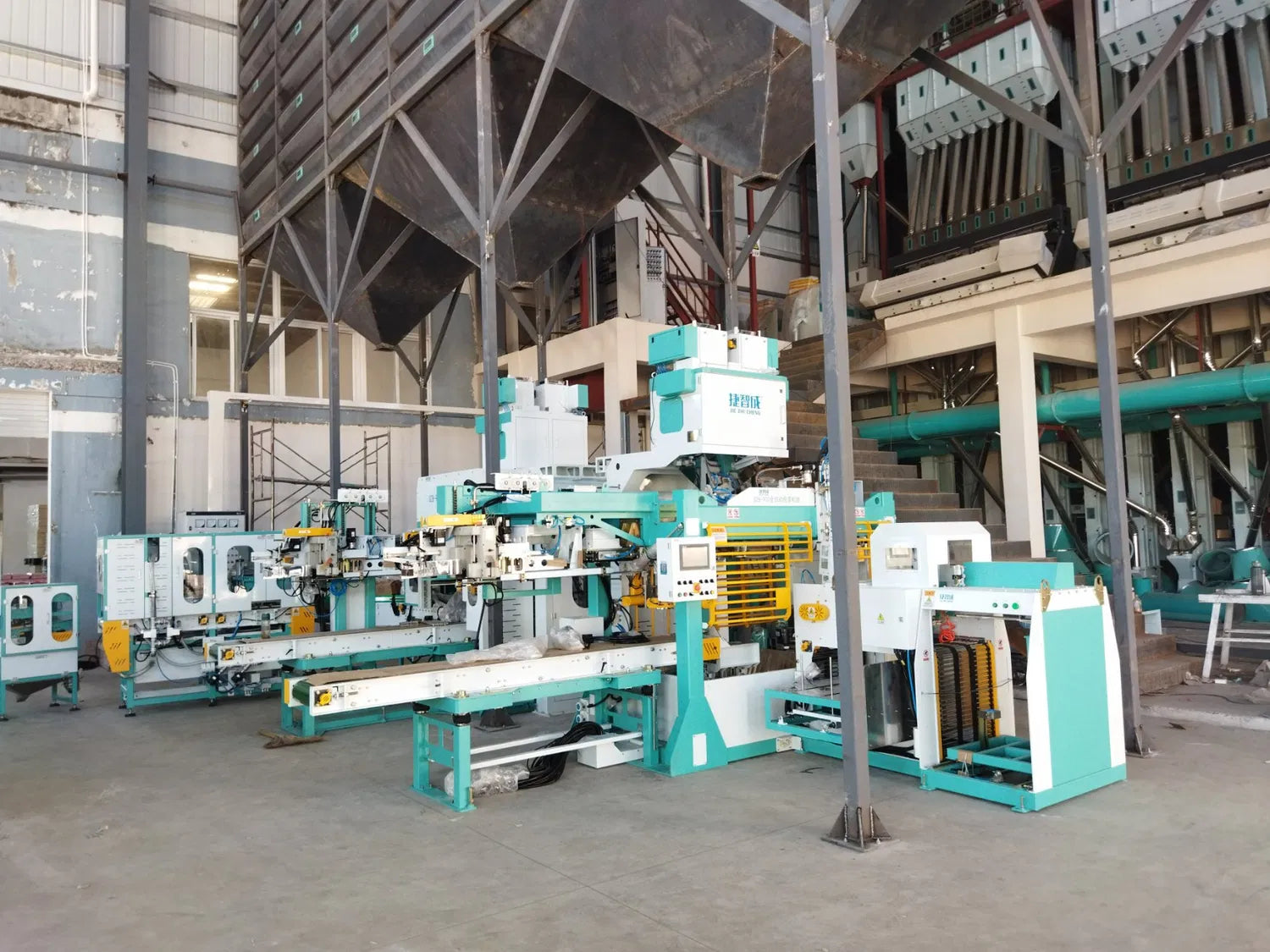

The BZD-50ZE2 can be connected to conveyors, a check weigher, a metal detector and a palletizer robot. We supply the full line and its layout.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example long-grain rice, peanut kernels, granular fertilizer)
- Bag weight and bag type
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
