DCS-50FE2-B 10–50kg Semi-Automatic Bagging Scale
DCS-50FE2-B 10–50kg Semi-Automatic Bagging Scale
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers

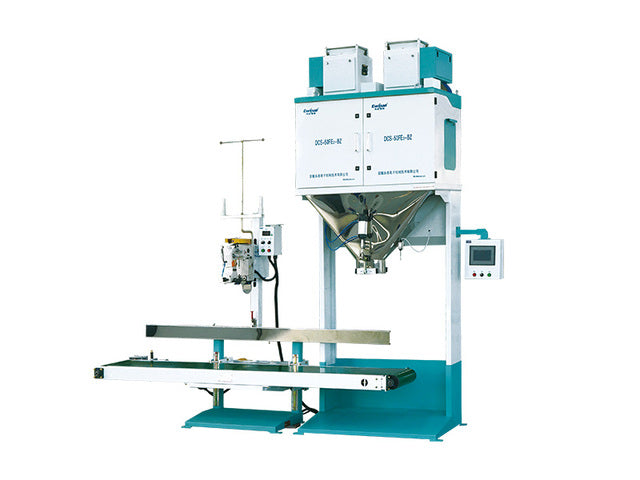

A semi-automatic weighing and bagging scale for 10–50 kg (22–110 lb) bags of free-flowing granules such as rice, sugar, feed pellets and plastic granules. The operator places the bag; the machine weighs, fills, sews and cuts the thread at 500–720 bags per hour.
Rates and tolerances were measured with rice. Other products can run differently; tell us your product and bag size and we will confirm.
Is the DCS-50FE2-B the right fit?
Good fit
- Rice mills packing 10–50 kg woven bags
- Sugar and salt packers
- Feed plants bagging pellets
- Seed, bean and pulse packers
- Plastic granule and granular fertilizer plants
Look at another model if
- Your product flows poorly (maize meal, flour, feed mash): see the DCS-50ZH
- Your bags are 5–25 kg only: see the DCS-50FB1
- You pack peanut pods as well as kernels: see the DCS-50E2-Z
- You want 25–50 kg bags placed automatically: see the QZB-700M
How one cycle works
-
Bag placing
The operator puts the bag on the spout. A sliding column adjusts for different bag types. -
Feeding
Gravity and dual vibratory feeders dose the product. -
Weighing
Three load cells in a sealed chamber; the controller reads 480 times per second. -
Release
The bag drops onto the conveyor, which lifts automatically. -
Sewing
The bag is sewn and the thread is cut automatically.
Recipes, production counters and a manual jog mode are on the color touch screen (Chinese/English). Data communication to a host PC is optional.
Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 10–50 kg | 22–110 lb |
| Accuracy | ±0.1% F.S. | |
| Tolerance (rice) | ±20 g max at 10–25 kg; ±30 g max at 50 kg | about ±0.7 oz; about ±1.1 oz |
| Division | 5 g | about 0.18 oz |
| Output | 600–720 bags/h at 10–25 kg; 500–600 bags/h at 25–50 kg | |
| Bag type | Standard woven, hemmed woven and heat-seal bags | |
| Closing | Sewing with automatic thread cutting; folding and heat sealing optional | |
| Display | Color touch screen (MCGS) | |
| Compressed air | 45 L/min at 0.5–0.7 MPa | about 1.6 CFM at 73–102 psi |
| Power | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 1.3 kW | |
| Footprint (L × W × H) | 3,520 × 1,060 × 3,211 mm | about 11.5 × 3.5 × 10.5 ft |
| Operating conditions | 0–40 °C, ≤90% RH, non-condensing | 32–104 °F |
Safety and build
- Weighing parts and cylinders sealed against dust, moisture and rice flour
- Stainless steel on all product-contact surfaces
- Manual mode jogs feeders and bag clamp to clear clumps or blockages
Add to the line
The DCS-50FE2-B can be connected to a check weigher, metal detector, heat sealing unit and palletizing robot. We supply the full line and its layout.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example long-grain rice, refined sugar, feed pellets)
- Bag weight and bag type
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
Our engineers guide installation, calibration and operator training by video call, with the installation manual.
