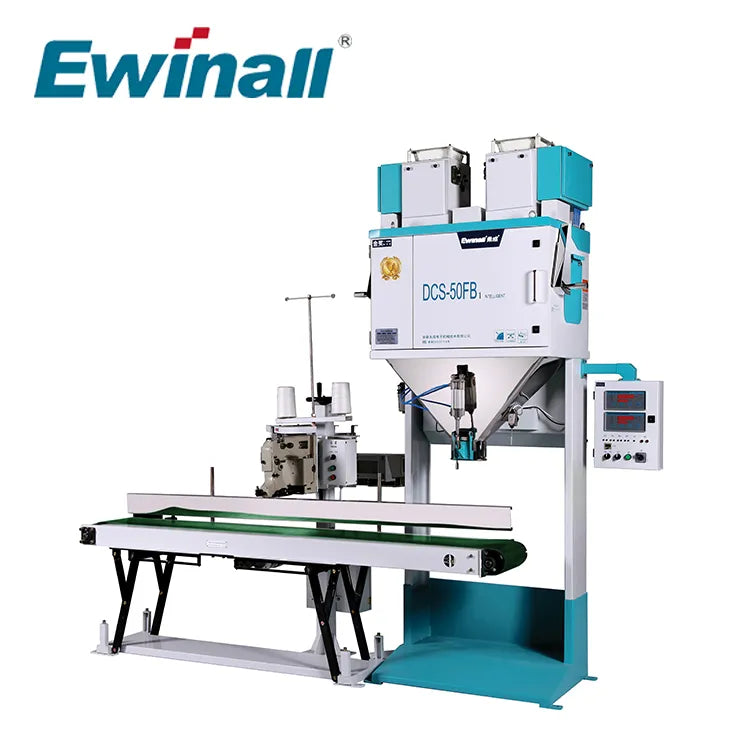

DCS-50FB1 5–25kg Semi-Automatic Grain Bagging Scale

DCS-50FB1 5–25kg Semi-Automatic Grain Bagging Scale

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

We use your details only to respond to your inquiry. Privacy policy.

A semi-automatic bagging scale for 5–25 kg (11–55 lb) bags of free-flowing granules: rice, grain, seed, feed pellets and pulses. After the operator places the bag, the machine weighs, fills, conveys, sews and cuts the thread at 600–1,000 bags per hour.

5–25 kg11–55 lb per bag
600–1,000bags per hour
±0.2% F.S.accuracy, 2 g graduation
3 load cellswith single-cylinder feeding

Speed depends on bag size and how freely the product flows. Tell us your product and bag size and we will confirm the rate.

Is the DCS-50FB1 the right fit?

Good fit

  • Rice mills packing 5–25 kg retail or wholesale bags
  • Grain and seed plants
  • Feed factories bagging poultry, fish or cattle pellets
  • Pulse and bean packers
  • Lines where one operator should run the whole bagging station

Look at another model if

  • Your bags are 25–50 kg: see the DCS-50FE2-B
  • You need 1 g graduation and one-key product switching: see the DCS-50FS2
  • Your bags are under 5 kg: see the DCS-10ZD2
  • You want the bag placed automatically: see the QZB-1600

How one cycle works

  1. Bag placing
    The operator places the empty bag on the spout; filling starts automatically.
  2. Feeding
    An independent single-cylinder feeder doses the product in an enclosed chamber.
  3. Weighing
    A three-point load cell system checks the weight.
  4. Conveying
    The bag is released onto a conveyor with automatic lifting.
  5. Sewing
    The bag is sewn and the thread is cut.

Options: communication with a host computer for production data, and an air inflation device that shapes the bag.

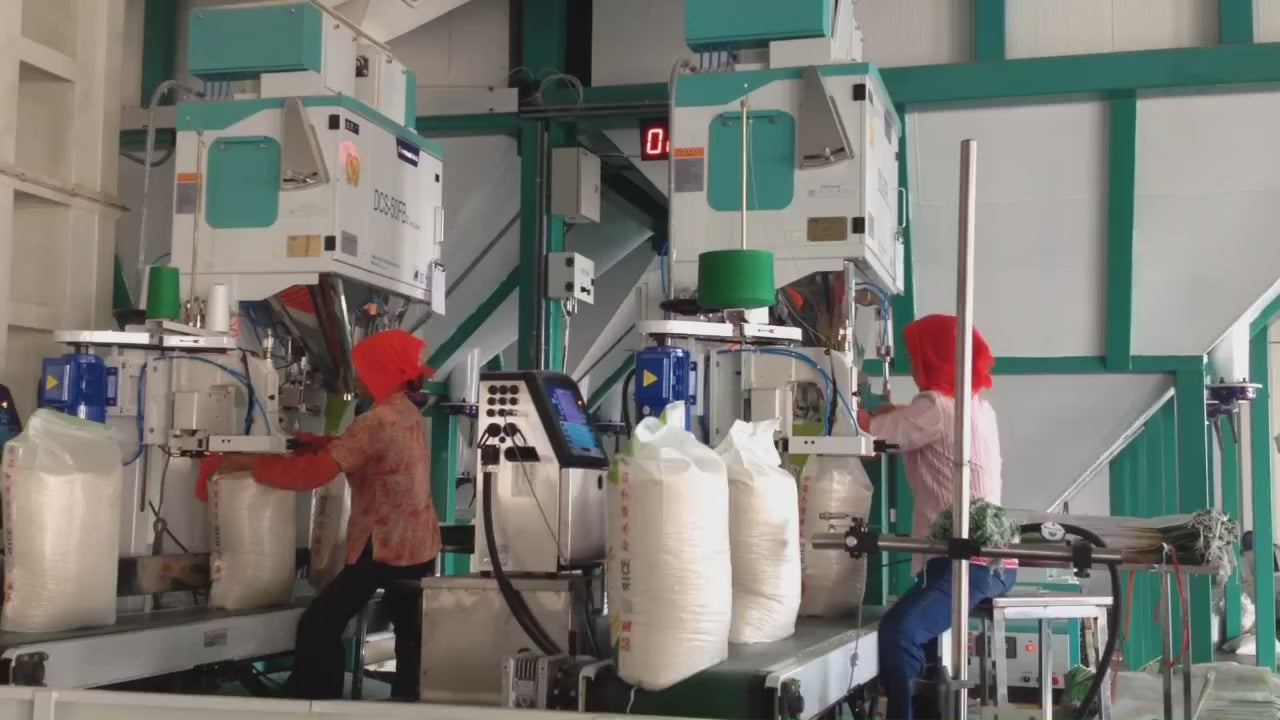

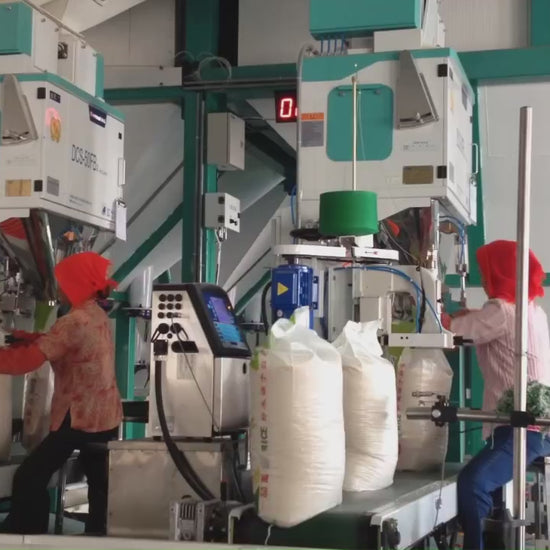

Watch it run

Technical specifications

Item Metric US units
Bag weight 5–25 kg 11–55 lb
Accuracy ±0.2% F.S.
Graduation 2 g about 0.07 oz
Output 600–1,000 bags/h 600–1,000 bags/h
Bag type Woven bags, PP bags, paper sacks
Closing Sewing with automatic thread cutting
Compressed air 1.2 m³/h about 0.7 CFM
Power 380 V, 50 Hz, 3-phase (other supplies on request), 5 kW
Footprint (L × W × H) 3,120 × 960 × 2,692 mm about 10.2 × 3.1 × 8.8 ft

Safety and build

  • Fully enclosed feeding and metering keeps dust in and product loss low
  • Heavy-duty steel frame with wear-resistant parts

Add to the line

The DCS-50FB1 can be connected to a conveyor, check weigher, metal detector and palletizing robot. We supply the full line and its layout.

Get a quote for your plant

To size the machine and give you a price, we need five things:

  • Product (for example long-grain rice, wheat, feed pellets)
  • Bag weight and bag type
  • Target bags per hour or tons per shift
  • Power supply (voltage and Hz)
  • Equipment before and after the bagger

Our engineers guide installation, calibration and operator training by video call, with the installation manual.
