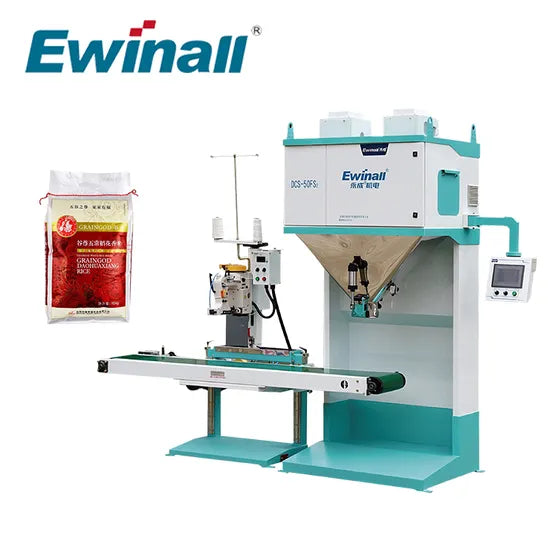

DCS-50FS2 5–25kg High-Precision Rice Packing Machine for Grain & Rice Packaging
DCS-50FS2 5–25kg High-Precision Rice Packing Machine for Grain & Rice Packaging
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
A high-speed bagging scale for 5–25 kg (11–55 lb) bags of rice and grain. A weighing instrument and PLC work together at 480 A/D conversions per second with servo-driven feeding, so it fills 800–1,200 bags per hour at 1 g graduation.
Speed was tested with standard rice. Tell us your product and bag size and we will confirm the rate.
Is the DCS-50FS2 the right fit?
Good fit
- High-volume rice mills packing 5–25 kg bags
- Grain, bean and seed packers
- Premium rice packs that need gas flushing
- Plants that change bag type or product often
Look at another model if
- Your bags are 10–50 kg: see the DCS-50FE2-B
- You want the bag placed automatically: see the QZB-1600
- You need brick-shaped vacuum packs: see the QZB-1000S
How one cycle works
-
Select product
Choose the product on screen; the feeder and conveyor position adjust automatically. -
Place the bag
The operator places the bag, using left- or right-hand pocket switches. -
Feed and weigh
Servo feeding into a three-sensor scale, read 480 times per second. -
Close the bag

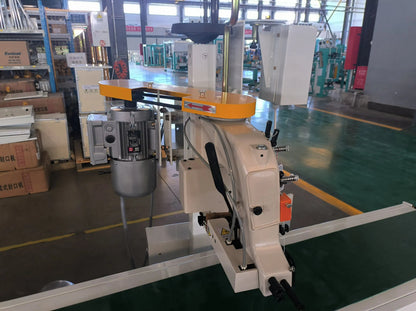

A rotating column switches between sewing, heat sealing and hemming.
Options: nitrogen or CO₂ gas flushing, and automatic multi-point lubrication for the sewing machine.

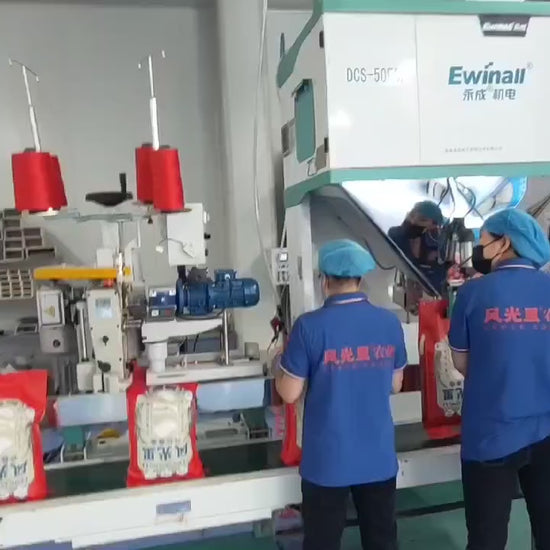

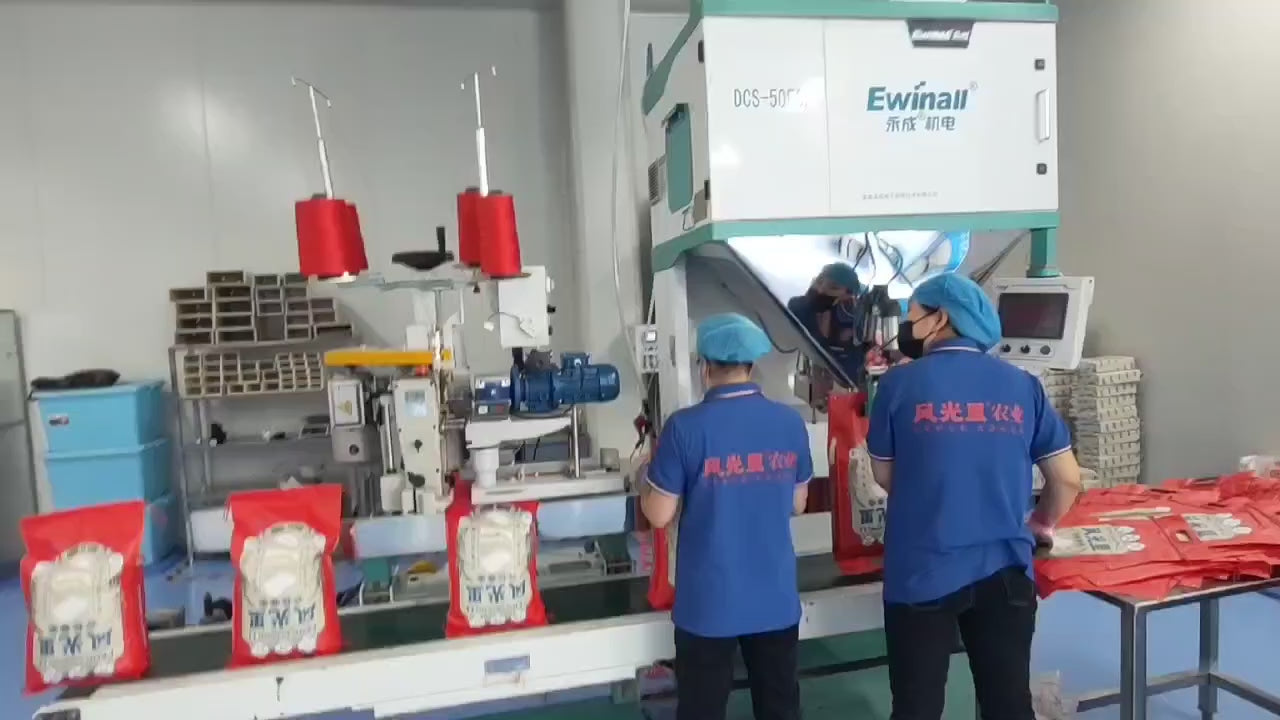

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 5–25 kg | 11–55 lb |
| Accuracy class | X(0.2) | |
| Graduation | 1 g | about 0.04 oz |
| Output | 800–1,200 bags/h | 800–1,200 bags/h |
| Display | Color touch screen | |
| Closing | Sewing, heat sealing or hemming (rotating column) | |
| Compressed air | 16.7 L/min at 0.4–0.5 MPa | about 0.6 CFM at 58–73 psi |
| Power | AC 380 V or 220 V ±5%, 50 Hz, 2 kW | |
| Footprint (L × W × H) | 3,483 × 1,091 × 2,736 mm | about 11.4 × 3.6 × 9.0 ft |
| Operating conditions | 0–40 °C, ≤90% RH | 32–104 °F |
| Options | Gas flush (N₂/CO₂), automatic sewing-machine lubrication | |
Safety and build
- Polished SS304 stainless steel on product-contact parts, with no dead corners
- Sensors, valves and wiring in steel conduits and boxes, protected against rodents and corrosion
- Three-sensor, vibration-resistant weighing
- Cycle-tested at speed with real grain; an accuracy report and video are sent before shipment
- CE (Machinery Directive); manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
Add to the line
The DCS-50FS2 can be paired with an automatic bag placer, check weigher and palletizing robot. We supply the full line and its layout.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example jasmine rice, parboiled rice, wheat)
- Bag weight, bag type and closing (sewing, heat seal or hem)
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
Our engineers guide installation, calibration and operator training by video call, with the installation manual.
More: customer installations · machine videos · all packaging scales
