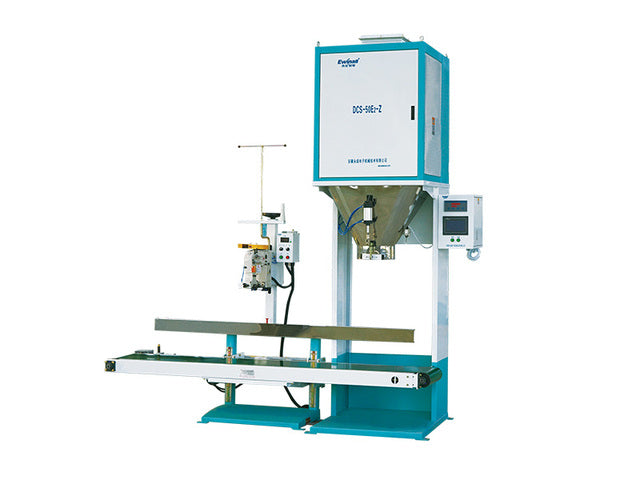

DCS-50E2-Z Peanut Kernel & Pod Packaging Machine | 10–50kg
DCS-50E2-Z Peanut Kernel & Pod Packaging Machine | 10–50kg
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
A semi-automatic weighing and sewing scale built for peanut processors: 10–50 kg (22–110 lb) bags of kernels or 10–30 kg (22–66 lb) bags of in-shell pods, plus rice, grain, seed and granular fertilizer. Accuracy is ±0.1% F.S. The DCS-50E2-Z runs up to 240 bags per hour; the DCS-50E2-BZ runs 280–480.
Speed was measured with standard peanut kernels. Output depends on bag size, kernels or pods, and operator pace.
Is the DCS-50E2-Z the right fit?
Good fit
- Peanut shellers and processors packing kernels and pods
- Grain depots bagging rice, wheat, corn or sorghum
- Seed companies
- Granular fertilizer and plastic pellet packers
Look at another model if
- You need 280–480 bags per hour: see the DCS-50E2-BZ
- Your product is free-flowing rice or sugar at higher speed: see the DCS-50FE2-B
- Your bags are 5–25 kg: see the DCS-50FB1
- You want 25–50 kg bags placed automatically: see the QZB-700M
How one cycle works
-
Bag clamping
The operator places the bag; a pneumatic clamp closes on the foot switch. -
Feeding
A three-sensor metering structure doses kernels or pods. -
Weighing
The quantitative controller sets the final weight. -
Sewing
The bag is sewn and the thread is cut automatically. -
Counting
Bags are counted; data can be printed or sent out.
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight, kernels | 10–50 kg | 22–110 lb |
| Bag weight, pods | 10–30 kg | 22–66 lb |
| Accuracy | ±0.1% F.S. | |
| Division | 10 g | about 0.35 oz |
| Output, DCS-50E2-Z | ≤240 bags/h | ≤240 bags/h |
| Output, DCS-50E2-BZ | 280–480 bags/h | 280–480 bags/h |
| Closing | Sewing with automatic thread cutting | |
| Compressed air | 16.7 L/min at 0.5–0.7 MPa | about 0.6 CFM at 73–102 psi |
| Power | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 1.1 kW | |
| Footprint, DCS-50E2-Z | 3,150 × 1,220 × 3,365 mm | about 10.3 × 4.0 × 11.0 ft |
| Footprint, DCS-50E2-BZ | 4,080 × 1,152 × 3,665 mm | about 13.4 × 3.8 × 12.0 ft |
| Operating conditions | 0–40 °C, ≤90% RH at 40 °C | 32–104 °F |
Components
| Part | Detail |
|---|---|
| Pneumatics | AirTAC / SMC |
| Conveyor | Manual lift, international-brand components |
| Bag clamp | Pneumatic, foot-switch operated |
| Sewing machine | Automatic stitch and thread cutting |
Safety and build
- Heavy-duty steel frame with corrosion-resistant treatment
- Tested in our plant with real peanuts; an accuracy report and operating video are sent before shipment
- CE (Machinery Directive); manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
Add to the line
The DCS-50E2-Z can be combined with a conveyor, check weigher and palletizing robot. We supply the full line and its layout.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example peanut kernels, in-shell peanuts, wheat)
- Bag weight and bag type
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
Our engineers guide installation, calibration and operator training by video call, with the installation manual.
