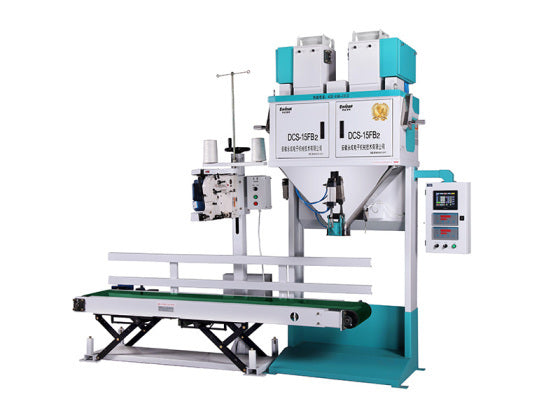

DCS-15FB2 Electronic Quantitative Packing Scale | 0.5-15kg

DCS-15FB2 Electronic Quantitative Packing Scale | 0.5-15kg

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

We use your details only to respond to your inquiry. Privacy policy.

A semi-automatic scale for small and mid-size bags, 0.5–15 kg (about 1.1–33 lb), for rice millers, sugar packers and granule processors who sell both retail packs and wholesale bags. A three-load-cell scale weighs to ±0.1% F.S. with 2 g graduation at 600–1,200 bags per hour.

0.5–15 kgabout 1.1–33 lb per bag
600–1,200bags per hour
±0.1% F.S.weighing error, 2 g graduation
1.1 kW16.7 L/min air

Speed is tested with standard rice. Output depends on bag size, target weight and operator pace.

Is the DCS-15FB2 the right fit?

Good fit

  • Rice packers filling 500 g, 1 kg, 2 kg, 5 kg and 10 kg packs
  • White sugar for retail and food service bags
  • Small feed pellets, crumble and bird seed
  • Plastic granules: masterbatch, regrind, virgin resin
  • Seeds, grains, beans and pulses (millet, quinoa, lentils, mung beans, chickpeas)

Look at another model if

  • Your bags are 15–50 kg: see the DCS-50FB3 (5–50 kg)
  • Your bags are 50–100 kg: see the DCS-100FA1
  • You want woven bags fed, filled and sewn without an operator: see the QZB-1600
  • You pack flour or other powders: see the DCS-25

How one cycle works

  1. Bag placing
    The operator places the bag and the pneumatic clamp grips it.
  2. Feeding
    The feed gate, set by the external handle, meters product into the weigh hopper.
  3. Weighing
    Three load cells under the hopper give a stable reading even when product lands unevenly.
  4. Closing
    The single-cylinder discharge releases the batch; the bag is sewn, or heat sealed on the optional sealer.

The graduated handle outside the machine adjusts the feed gate for different rice varieties, moisture levels and grain sizes, without tools.

Watch it run

Technical specifications

Item Metric US units
Bag weight 0.5–15 kg about 1.1–33 lb
Output 600–1,200 bags/h
Weighing error ±0.1% F.S.
Graduation 2 g about 0.07 oz
Load cells 3, balanced support
Control Digital weighing controller
Closing Sewing (standard), heat sealing (optional) on a rotatable column
Bag type Woven bags, PP bags, heat-seal sacks
Power 4N-AC 380 V, 50 Hz, 1.1 kW
Air pressure 0.4–0.5 MPa 58–73 psi
Air consumption 16.7 L/min about 0.6 CFM
Operating temperature 0–40 °C 32–104 °F
Footprint (L × W × H) 3,130 × 860 × 2,335 mm about 10.3 × 2.8 × 7.7 ft

Safety and build

  • Material-contact parts in corrosion-resistant, food-safe stainless steel
  • Heavy-duty steel frame
  • Single-cylinder discharge reduces cylinder wear at high cycle rates
  • Each machine is tested with real product in our plant; you get an accuracy report and an operating video before shipment
  • CE (Machinery Directive) and CE for weighing and packing machines; manufacturer certified to ISO 9001, ISO 14001 and ISO 45001

Add to the line

The DCS-15FB2 can be combined with conveyors, a check weigher, a heat sealer, an inkjet coder, a case packer and a palletizer. We supply the full line and its layout drawing.

Get a quote for your plant

To size the machine and give you a price, we need five things:

  • Product (for example jasmine rice, white sugar, seed)
  • Bag weights you pack and bag type
  • Target bags per hour or tons per shift
  • Power supply (voltage and Hz)
  • Sewing or heat sealing, and the equipment after the scale

Our engineers guide installation, calibration and operator training by video call, with the installation manual.
