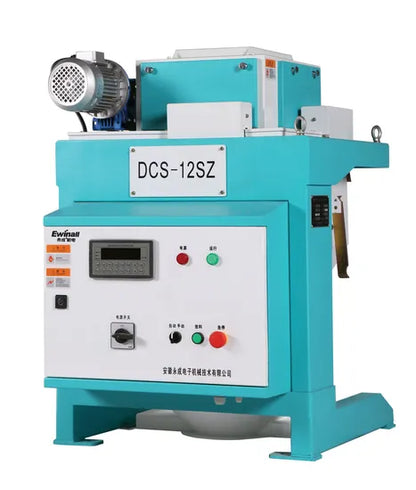

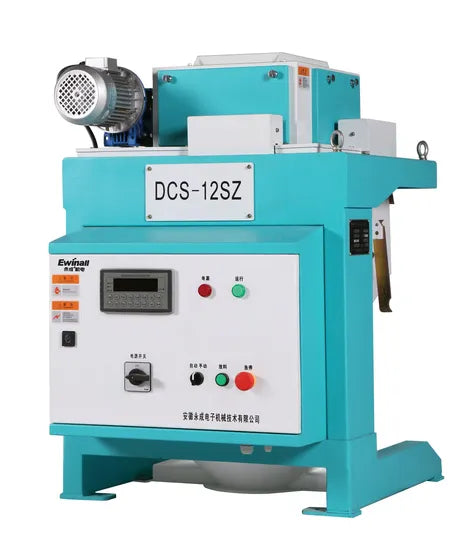

DCS-SZ Series Precision Digital Scale for Accurate Blending of Beans & Rice for High-Precision Blending
DCS-SZ Series Precision Digital Scale for Accurate Blending of Beans & Rice for High-Precision Blending
🔹 Precision digital blending for beans, rice, grains & granules – automatic ratio dosing with ±0.3% accuracy.
The Ewinall DCS‑SZ series precision digital scale is a continuous in‑line blending system designed for food processors, rice mills, and grain packers who require exact ratios of different granular materials. Using dual‑core PLC weighing technology and a balanced three‑sensor structure, it doses and discharges at a constant, controlled rate – perfectly suited for mixing rice varieties, blending beans with grains, or preparing consistent batches for packing lines. Motor‑driven (no air required), fully enclosed, and built from food‑grade stainless steel, this scale delivers reliable performance in wet, dusty, and demanding production environments.
Watch the DCS‑SZ Dosing Rice & Beans for a Perfect Blend
✨ Key Features of DCS‑SZ Series
480 A/D conversions per second. The weighing indicator and PLC work in tandem to deliver fast, repeatable dose accuracy.
Optimized force distribution across the weigh hopper eliminates vibration interference, ensuring long‑term stability.
All material contact surfaces (feeder, weigh pan) are polished SS304 – no residue, no cross‑contamination.
Wiring, sensors, and solenoids are encased in steel conduits – rodent‑proof and protected from corrosion.
Independent of compressed air. Advanced PID control for precise flow rate and dynamic stability – simpler installation, lower running cost.
Set the target flow or ratio on the touch screen, activate automatic mode, and the scale starts continuous, uniform discharge.
Auto flow statistics, print‑out, and RS485/RS232 communication for SCADA or ERP integration.
Patented feeding logic keeps material flowing smoothly without surges, preserving fragile grain integrity.
All connected devices halt immediately upon fault detection, preventing product loss and mechanical damage.
📊 Technical Specifications – DCS‑SZ Series
| Parameter | DCS‑6SZ | DCS‑12SZ | DCS‑20SZ | DCS‑40SZ |
|---|---|---|---|---|
| Flow range | 300 – 6,000 kg/h | 300 – 12,000 kg/h | 2,000 – 20,000 kg/h | 5,000 – 40,000 kg/h |
| Accuracy | ±0.5% | ±0.3% | ±0.5% | ±0.3% – ±0.5% |
| Power supply | AC 380V ±5%, 50Hz | |||
| Average power | 100 W | 140 W | 140 W | 140 W |
| Max instantaneous power | ≤260 W | ≤460 W | ||
| Working environment | ‑10°C – 40°C, humidity <90% (non‑condensing), vibration amplitude ≤1mm, frequency ≤25Hz | |||

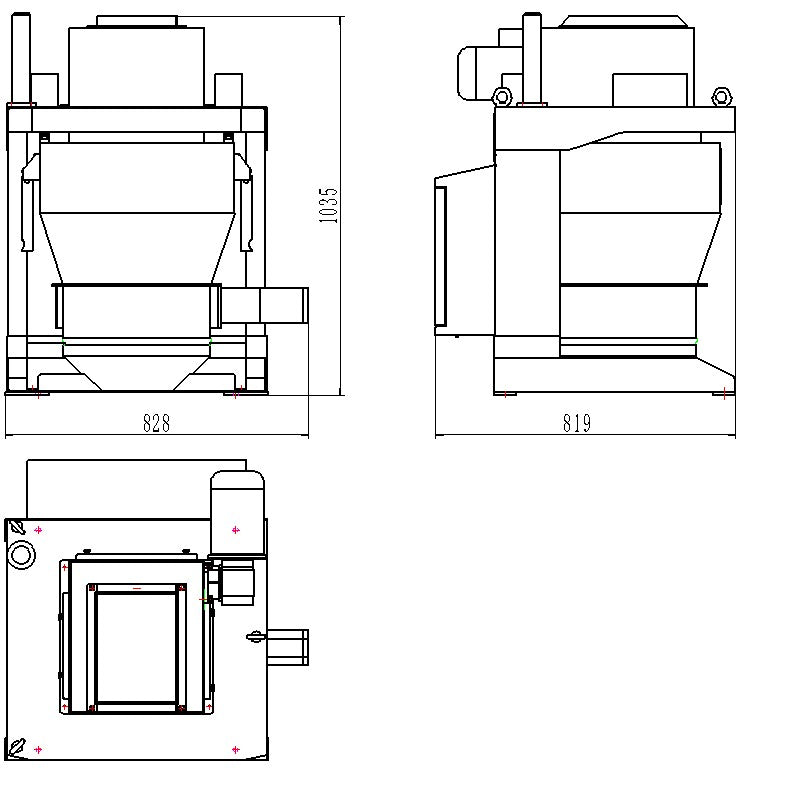

| Dimensions L×W×H (mm) | 740×784×828 | 819×828×1035 | 988×1159×1075 | 1375×1330×1326 |
*Accuracy and flow data measured with standard rice under controlled conditions. Actual results may vary with material density and particle size. Factory calibration included.
🔧 Precision Engineering & Durable Components
*Designed for food processing areas – easy to clean, resistant to washdown moisture, and built to withstand 24/7 operation.
🌾 Perfect for Ratio Blending & Continuous Dosing
The DCS‑SZ series is the core of any automated ingredient blending system. Typical applications include:
🔎 Frequently searched as: precision blending scale, bean rice mixer scale, continuous dosing scale, grain blending system, automatic blending machine, digital ratio weigher, bulk mixing scale, balanza dosificadora, doseur pondéral de précision, ميزان خلط الحبوب. Contact us with your required capacity and ratio tolerance for a tailored recommendation.
🏭 Why EWINALL – Your Blending & Weighing Partner Since 2000
Ewinall Packaging Machine Co., Ltd. offers more than standalone scales. We design integrated weighing, blending, and bagging lines tailored to food processors and grain millers. The DCS‑SZ series reflects our commitment to precision, hygiene, and easy automation.
🤝 EWINALL – The precise ratio behind every perfect blend.
📞 Get Your Quote & Blending Consultation in One Click
Talk directly to our weighing and blending experts at Ewinall Packaging Machine Co., Ltd.
📱 Tel / WhatsApp: +86 15955157922 | 📧 kevin@ewinall.com | 🌍 ewinall.com
🔧 Remote setup guidance and on‑site commissioning available. Ewinall provides full support through installation, blending parameter configuration, and operator training – ensuring your DCS‑SZ scales deliver perfect blends from day one.
⭐ Building a complete blending and packing line? Use multiple DCS‑SZ scales for multi‑ingredient dosing, then feed directly into an Ewinall bagging machine or bulk bag filler. Contact Kevin for a full system layout.
