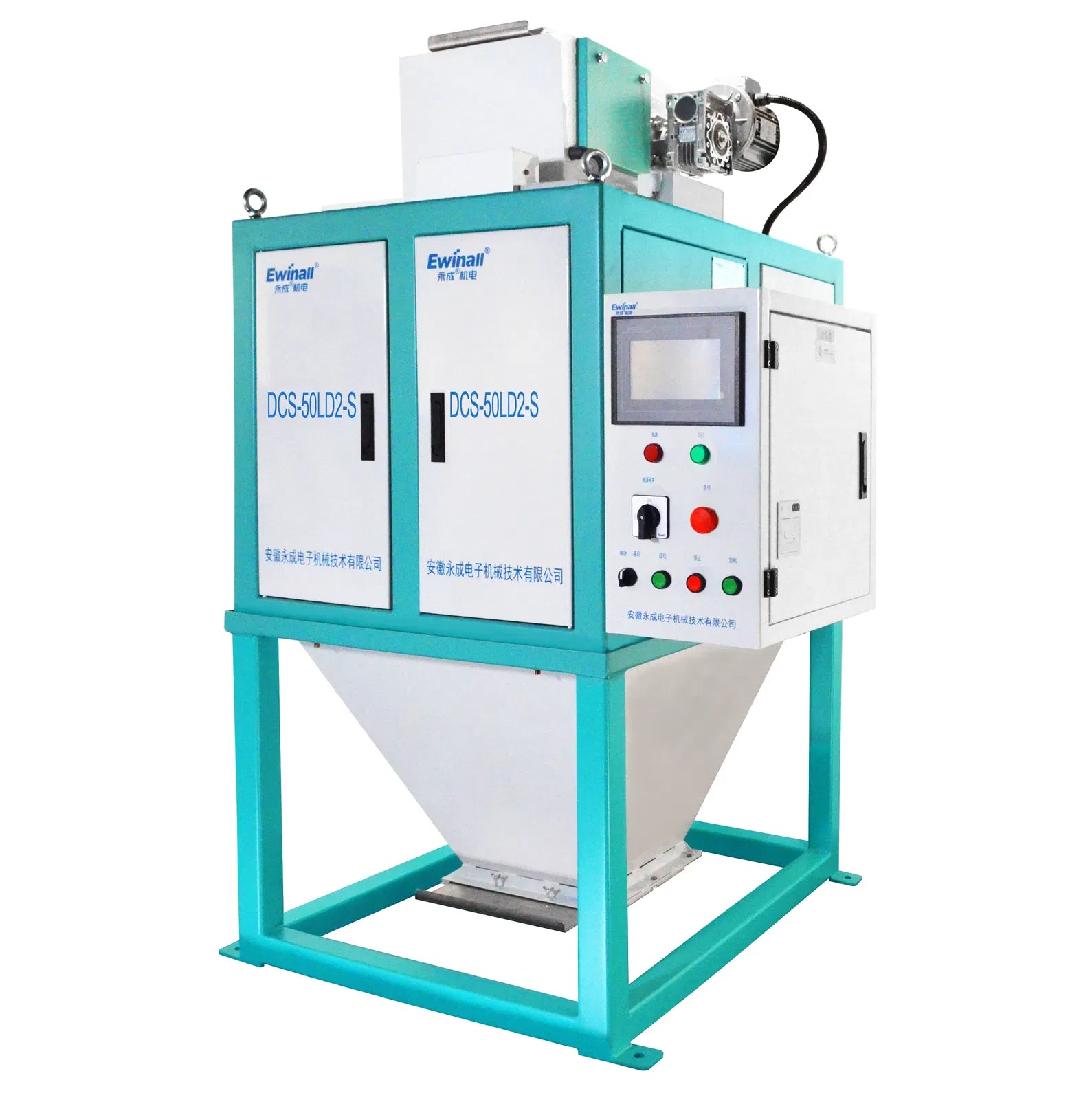

DCS-LD Series Rice, Bean & Corn Flow Scale – High‑Speed Continuous Weighing for Grain Processing (20–100 ton/h)
DCS-LD Series Rice, Bean & Corn Flow Scale – High‑Speed Continuous Weighing for Grain Processing (20–100 ton/h)
🔹 Continuous high‑speed weighing for grains, rice, beans, and corn – motor‑driven, no compressed air needed.
The Ewinall DCS‑LD series electronic flow scale is a non‑stop weighing solution for granular materials in rice mills, grain elevators, ports, and processing plants. With five models spanning 20,000 to 100,000 kg/h, a unique three‑sensor balanced design, fully sealed sensor housing, and motor‑driven mechanism, it delivers accurate throughput data without the complexity of pneumatic systems. Use manual mode for cleaning and automatic mode for continuous batch totalizing – ideal for inventory tracking, process control, and quality management.

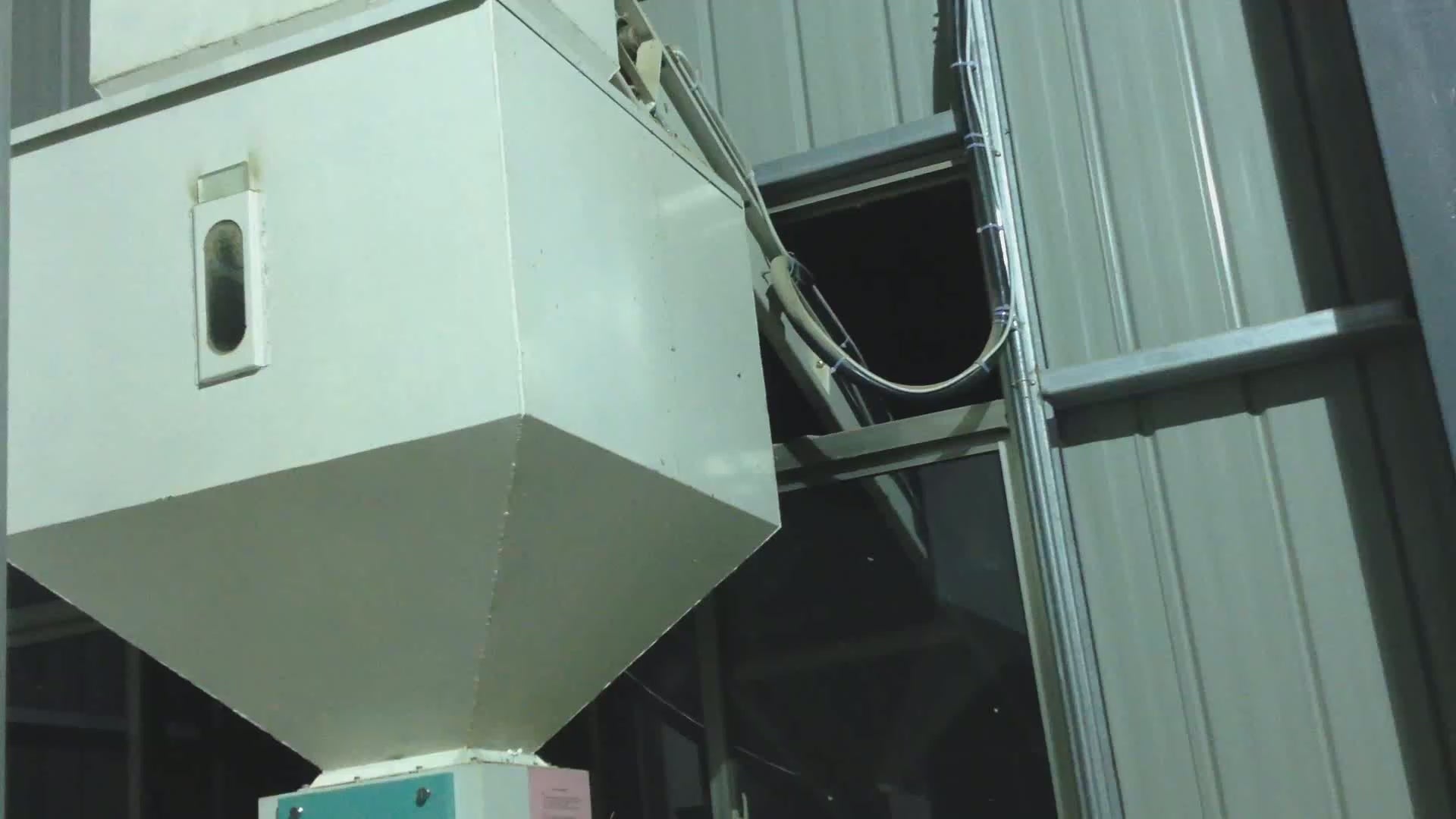

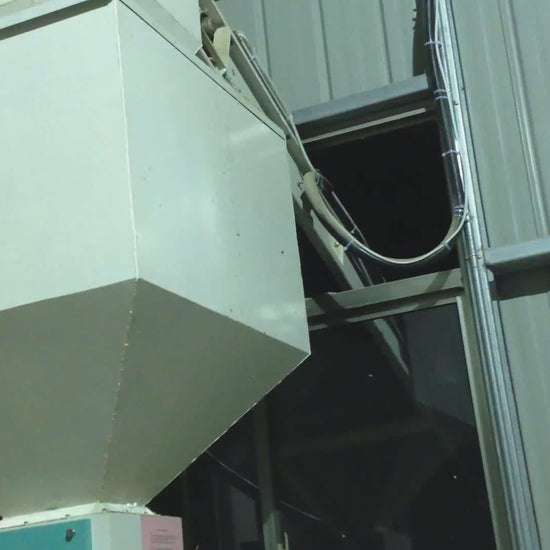

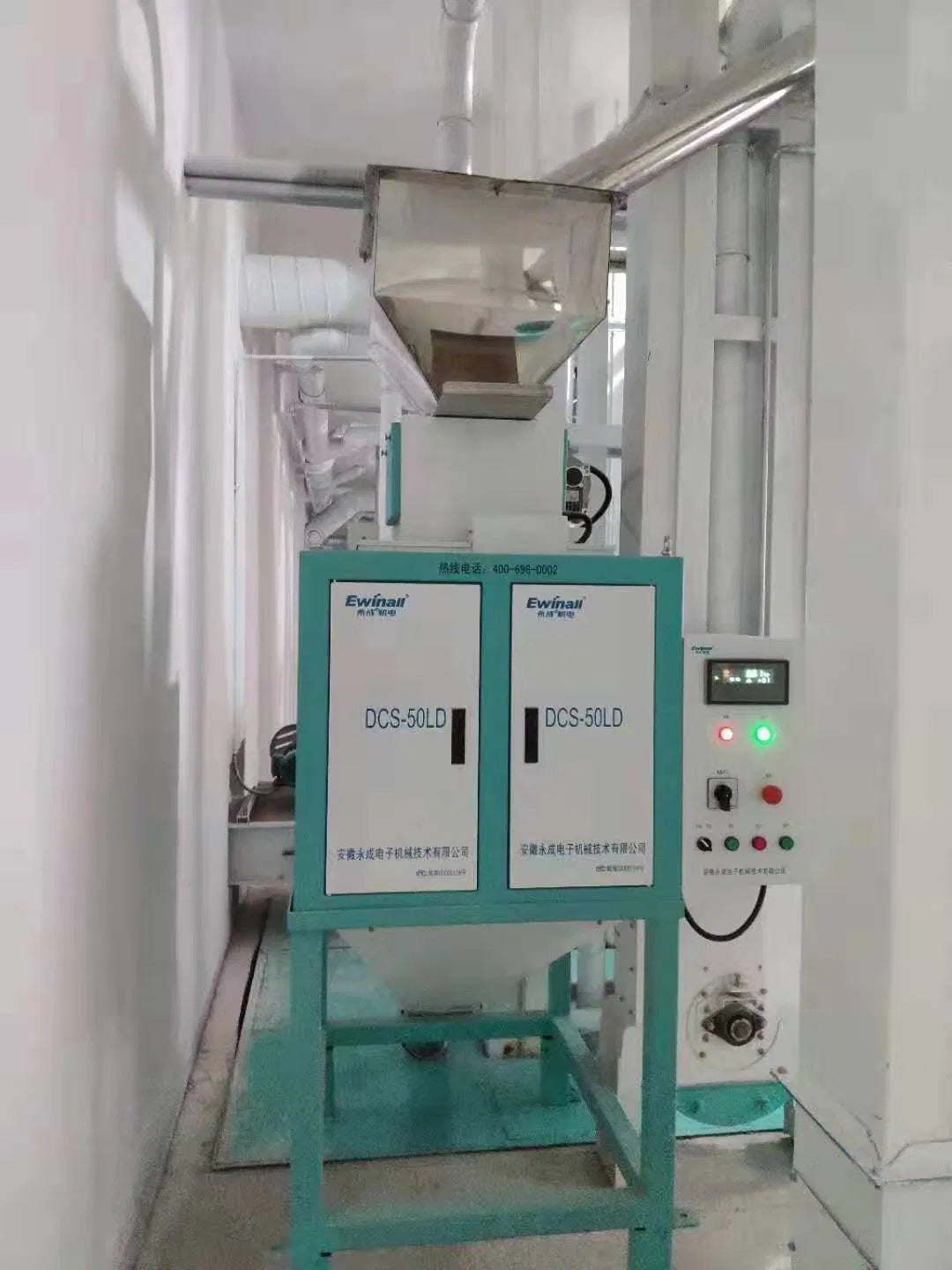

Watch the DCS‑LD Flow Scale in a Rice Mill – Continuous Weighing at 40 t/h
✨ Key Features of DCS‑LD Series
Eliminates stress point shift and signal distortion caused by uneven material distribution – maintains stable, high‑accuracy readings.
All weighing components enclosed in a dust‑ and water‑vapor‑proof chamber. Extends sensor life even in dusty mill environments.
No compressed air required – electric motor powers the action, simplifying installation and maintenance.
Manual jog for cleaning blocked material; fully automatic continuous weighing with batch totalizing once target is set.

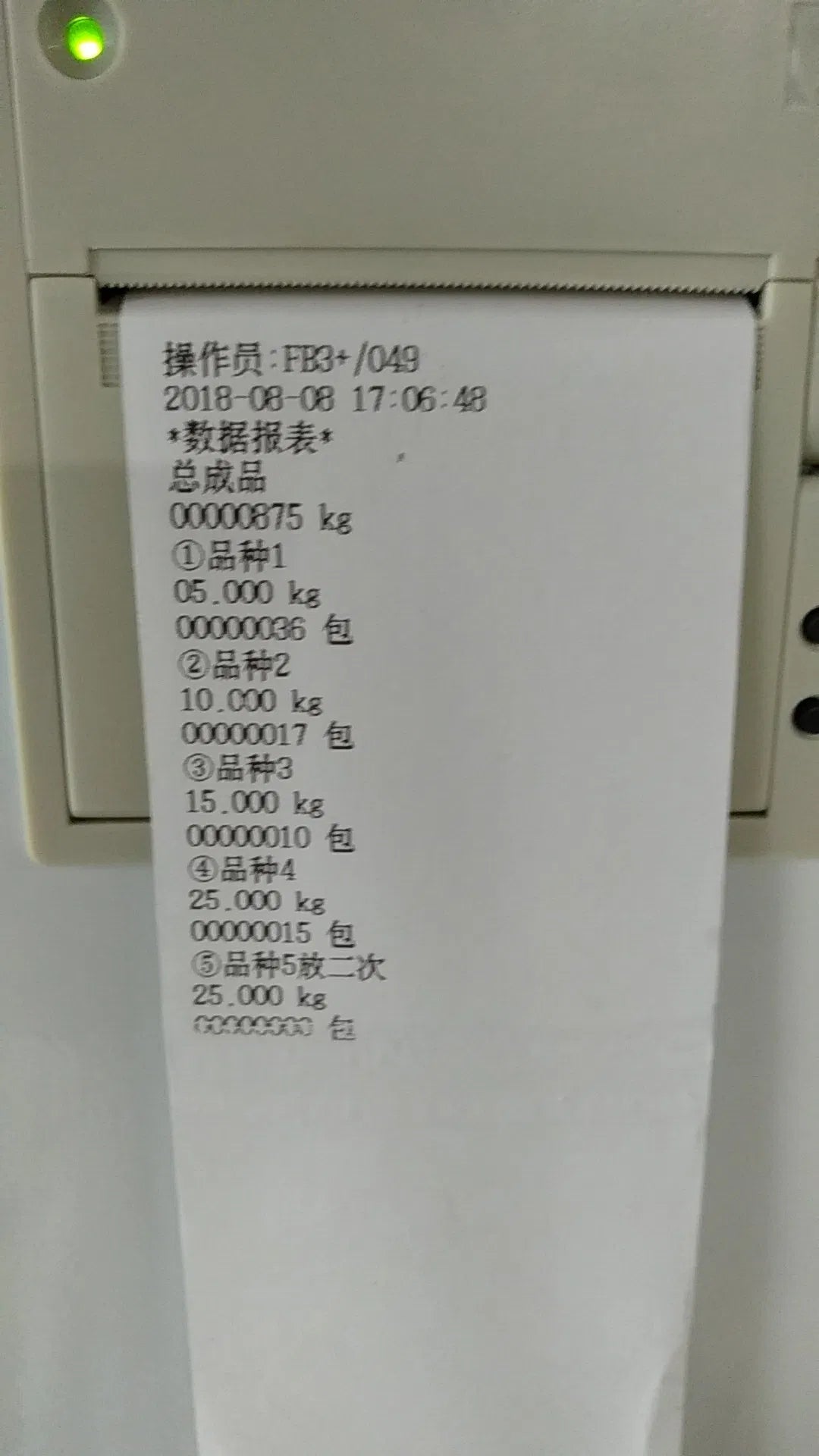

Auto statistics, printing, and data communication via RS232/RS485 – integrates with plant SCADA or ERP systems.
All material contact parts are polished SS304 – corrosion‑resistant, no dead corners, safe for rice and food grains.
240 conversions/sec, 0.5 μV/d sensitivity controller ensures precise weight capture even at high flow rates.
Models from 20 t/h to 100 t/h (paddy) – choose the right scale for your raw grain intake, milling line, or storage discharge.
📊 Technical Specifications – DCS‑LD Series
| Parameter | DCS‑50LD | DCS‑100LD | DCS‑200LD | DCS‑300LD | DCS‑400LD |
|---|---|---|---|---|---|
| Division value | 10 g | 10 g | 20 g | 20 g | 50 g |
| Accuracy level | X(0.5) | ||||
| Capacity (paddy) | ≤20,000 kg/h | ≤40,000 kg/h | ≤60,000 kg/h | ≤80,000 kg/h | ≤100,000 kg/h |
| Power consumption | 0.9 kW | 1.1 kW | |||
| Power supply | AC380V/220V±5%, 50Hz | ||||
| Working environment | 0 – 40°C, ≤90% RH | ||||

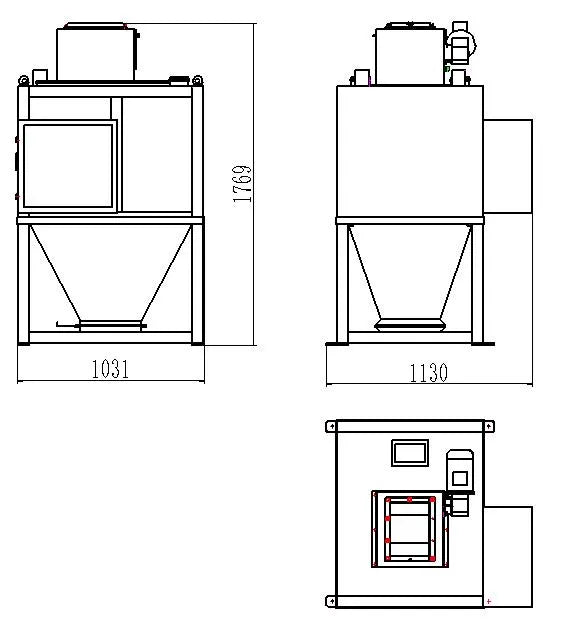

| Dimensions (L×W×H mm) | 1031×1130×1769 | 1146×1270×1911 | 1320×1400×2856 | 1520×1570×2926 | 1670×1944×3323 |
*Capacities based on paddy with standard moisture. Actual throughput depends on material density and grain size. Installation support and on‑site calibration included.

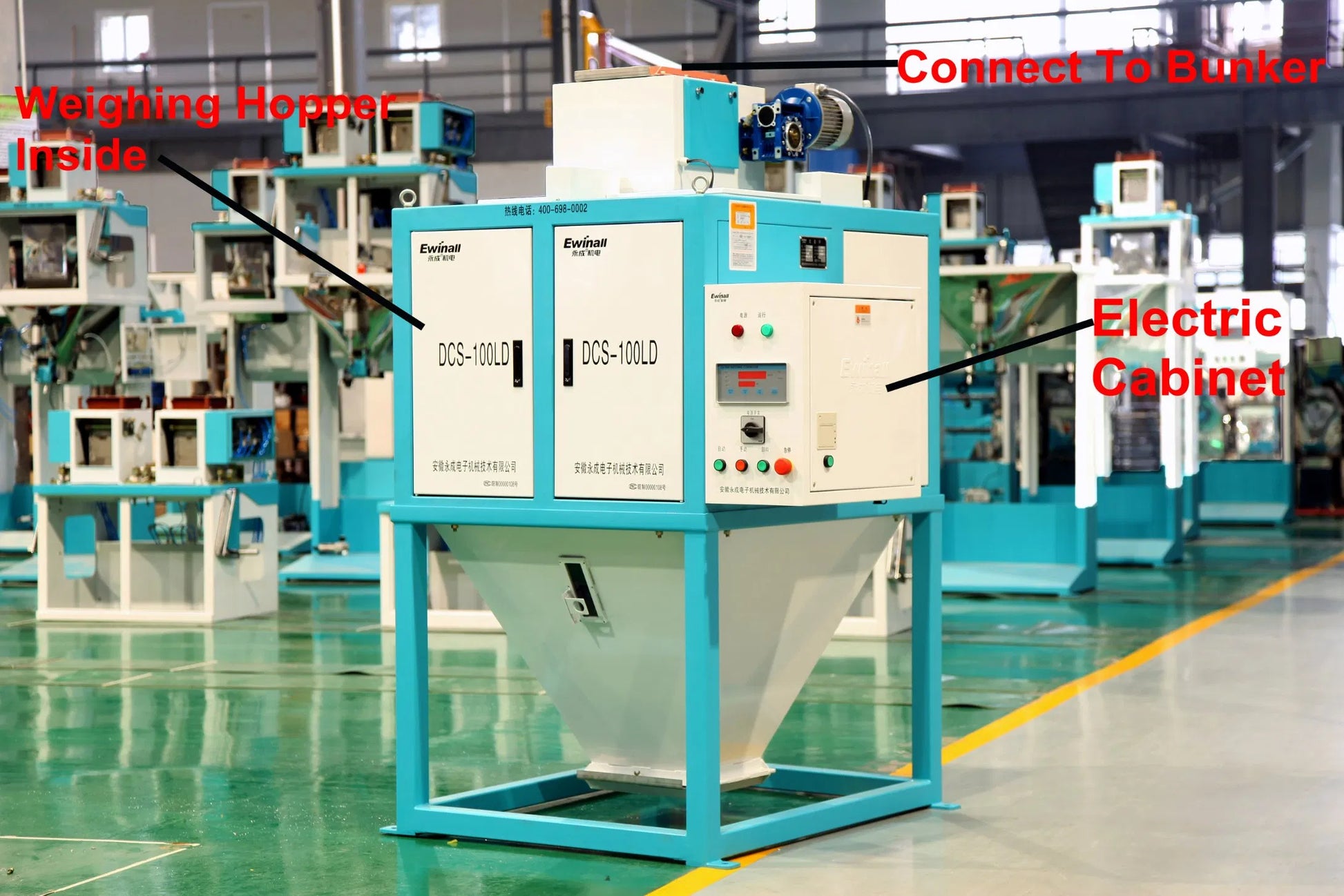

🔧 Robust Build & Smart Engineering
*Key electrical components sourced from globally recognized brands. Custom hopper inlet size available upon request.

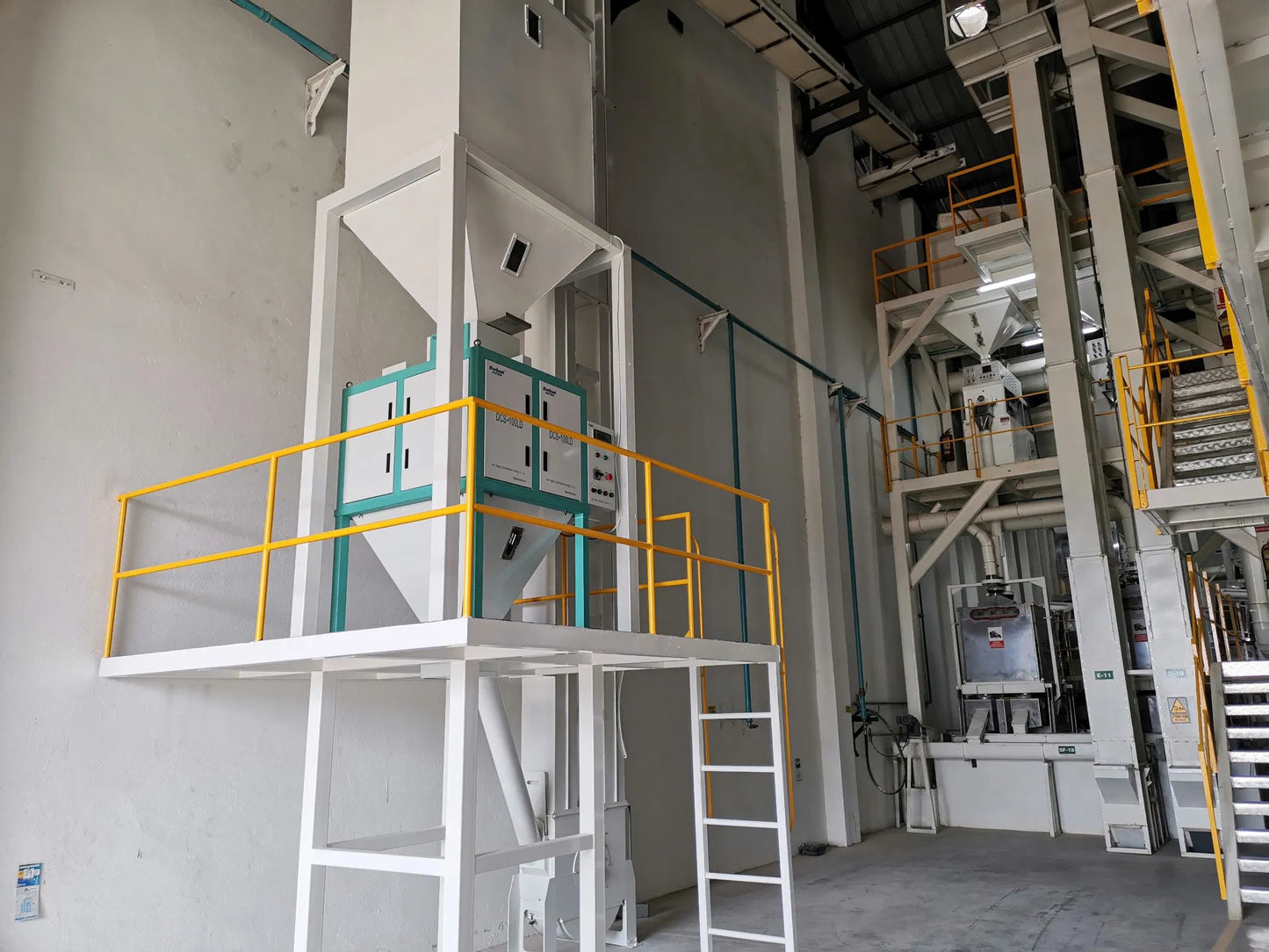

🏭 Strategic Placement in Rice & Grain Processing Lines
Ewinall DCS‑LD flow scales deliver the most value when installed at critical control points. Here’s how leading mills use them:
Verify supplier invoices, track total incoming paddy weight, and create baseline inventory records.
Measure weight before and after cleaning to calculate impurity percentage and ensure consistent flow to hullers.
Monitor brown rice output, assess hulling efficiency, and detect throughput drops that signal machine wear.
Track polished rice output, compare with brown rice input, calculate milling yield, and control product uniformity.
Accurately monitor rice sent to storage or packaging, prevent over‑shipment, and optimize logistics.
💡 Recommendation: Install at least three flow scales – after intake, after cleaning/hulling, and after milling/before packaging – to build a fully data‑driven production line.
🌽 Suitable Materials & Search Terms
The DCS‑LD series is optimized for free‑flowing granular products:
🔎 Frequently searched as: flow scale, electronic flow scale, grain flow scale, continuous weighing scale, rice flow meter, paddy weighing machine, bean flow scale, corn weighing scale, bulk weigher, silo weighing system, balanza de flujo, débitmètre pondéral, ميزان التدفق. Contact us for a detailed capacity calculation with your material.
🏭 Why EWINALL – Weighing & Packaging Machine Manufacturer Since 2000
Ewinall Packaging Machine Co., Ltd. is not only about bagging – we design precision weighing instruments that integrate seamlessly into your processing line. With over 20 years of experience, our flow scales are trusted in rice mills, grain elevators, and food factories across Asia, Africa, and the Middle East.
Process Weighing Expertise
Hundreds of flow scales installed in rice mills worldwide – we understand material flow and accuracy requirements.
Global Support
Remote video calibration assistance and on‑site service available. Quick supply of spare parts.
Complete Line Solutions
Combine flow scales with our bagging machines, check weighers, and palletizers for a fully monitored packing plant.
