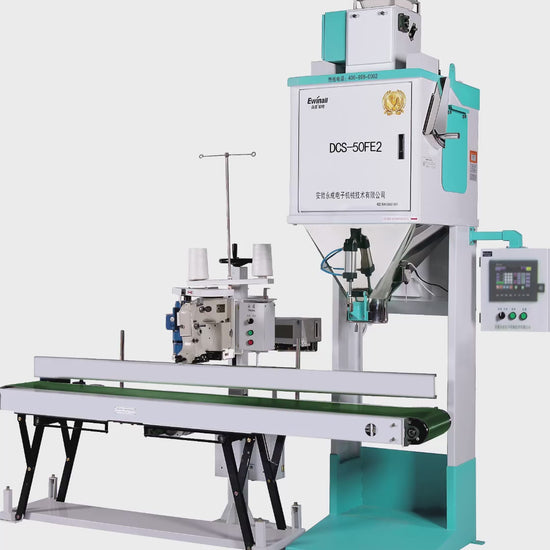

DCS-50FE-C 1–50kg Semi-Automatic Grain Bagging System
DCS-50FE-C 1–50kg Semi-Automatic Grain Bagging System
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers

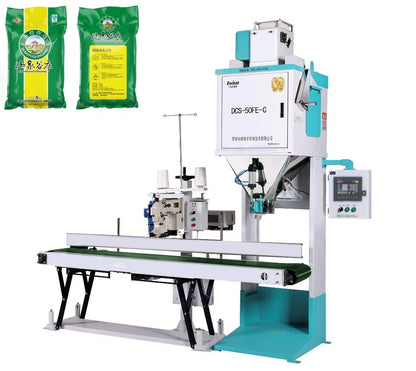

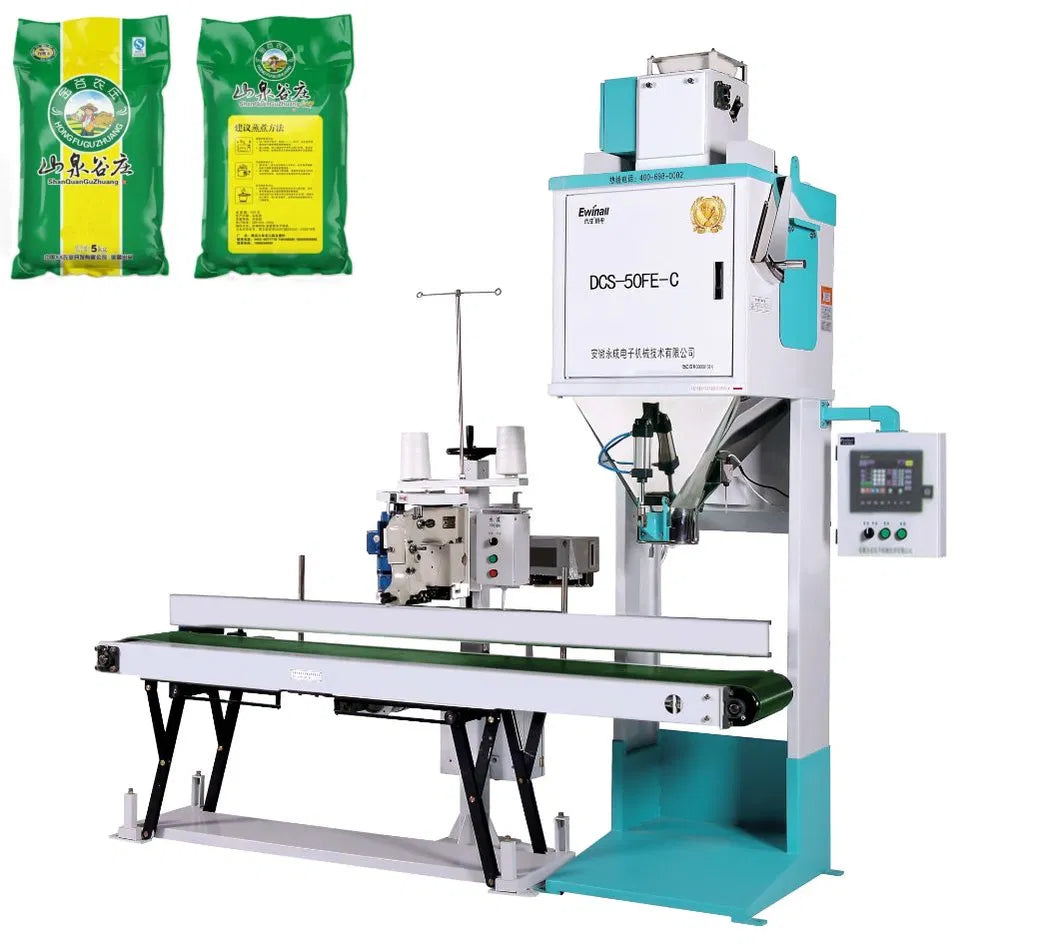

A semi-automatic weighing and sewing system for 1–50 kg (2–110 lb) woven, jute, PP and paper bags, for rice mills, feed plants, sugar factories and seed processors. A three-sensor scale fills at 200–480 bags per hour with 5 g graduation; the bag is then sewn, thread-cut and coded.
Speed is based on standard rice at normal moisture. Output depends on bag size, operator speed and how the product flows.
Is the DCS-50FE-C the right fit?
Good fit
- Rice mills (white, parboiled, basmati, japonica)
- Grain and pulse packers (wheat, corn, soybean, lentil, chickpea)
- Feed mills bagging pellets or mash in woven or jute bags
- Sugar and seed packers
- Plastic pellet and NPK fertilizer packers
Look at another model if
- You need more bags per hour: see the dual-hopper DCS-50FB-C
- You pack flour or other powders: see the DCS-50FT-1
- You run mostly small bags under 10 kg at high speed: see the DCS-15FB2 (0.5–15 kg)
- You want 25–50 kg bags placed, filled and sewn without an operator: see the QZB-600M
How one cycle works
-
Bag placing
The operator places the bag under the spout. -
Feeding
An independent double-cylinder gate feeds product; its opening is set with the external handle. -
Weighing

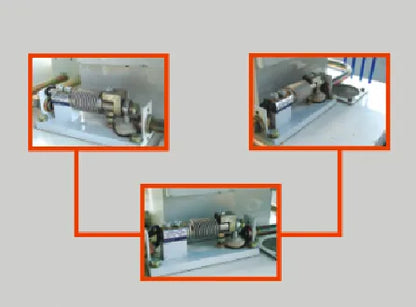

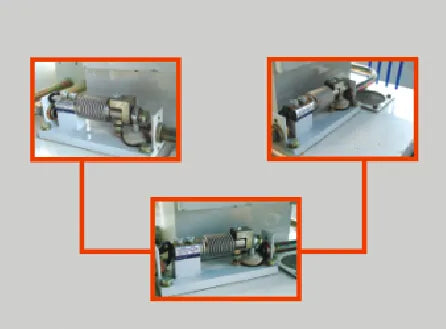

The three-sensor scale weighs through a high-speed A/D controller. -

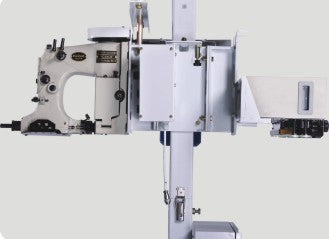

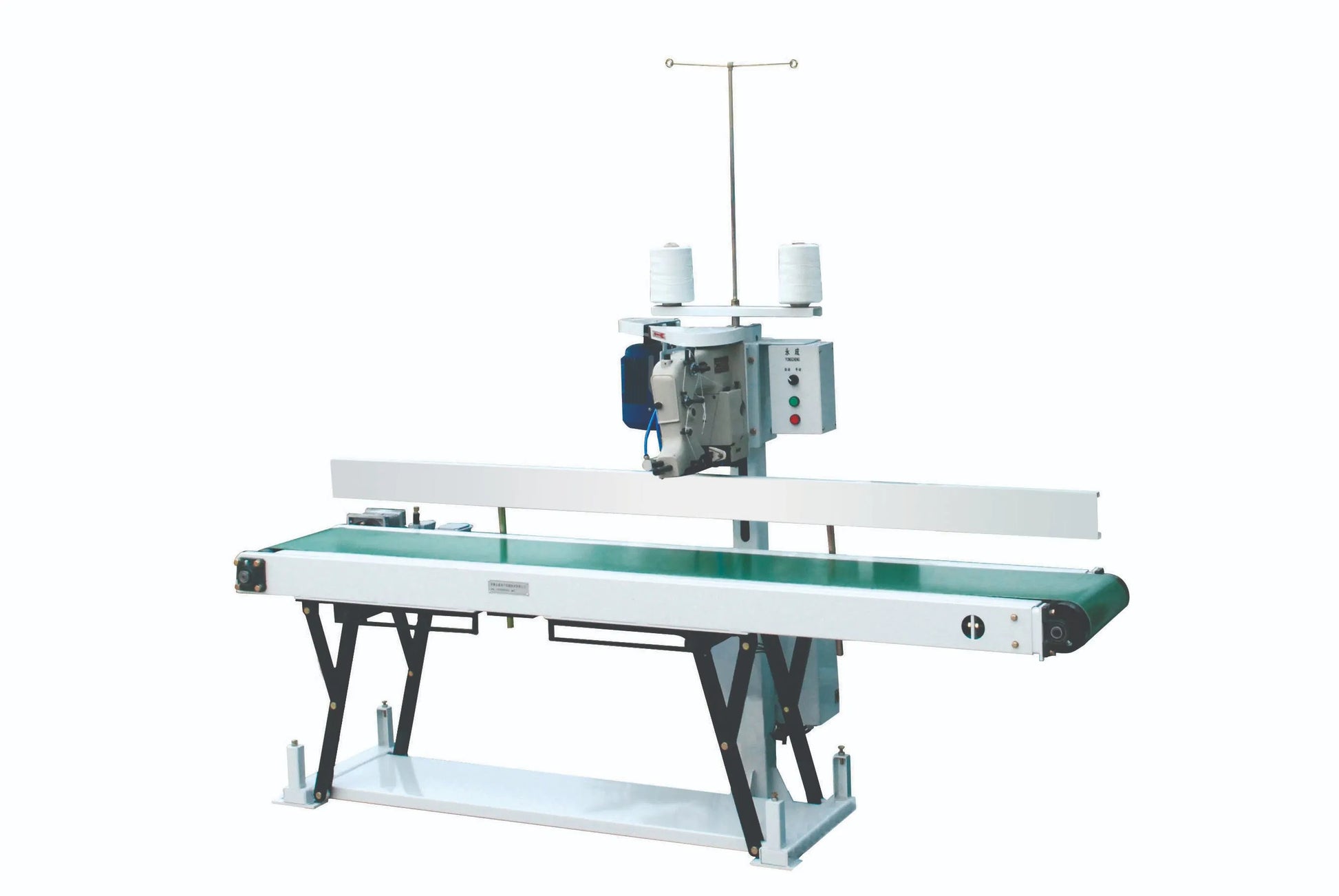

Sewing
The conveyor lifts to sewing height; the single-needle head sews and cuts the thread. -
Coding
"Qualified", "inspected", "first-class" and the production date are printed on the bag during sewing.

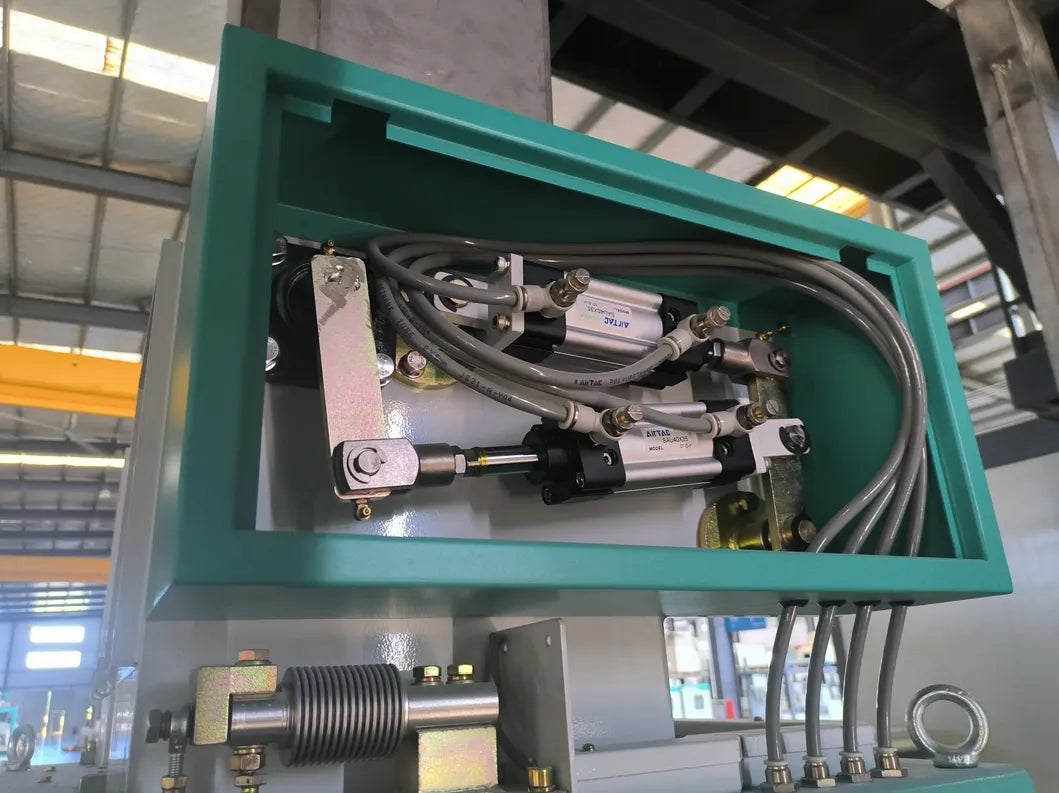

The double-cylinder feed avoids the seal wear common in three-position cylinders. A manual mode jogs the feeder and bag clamp separately to clear clumped product.

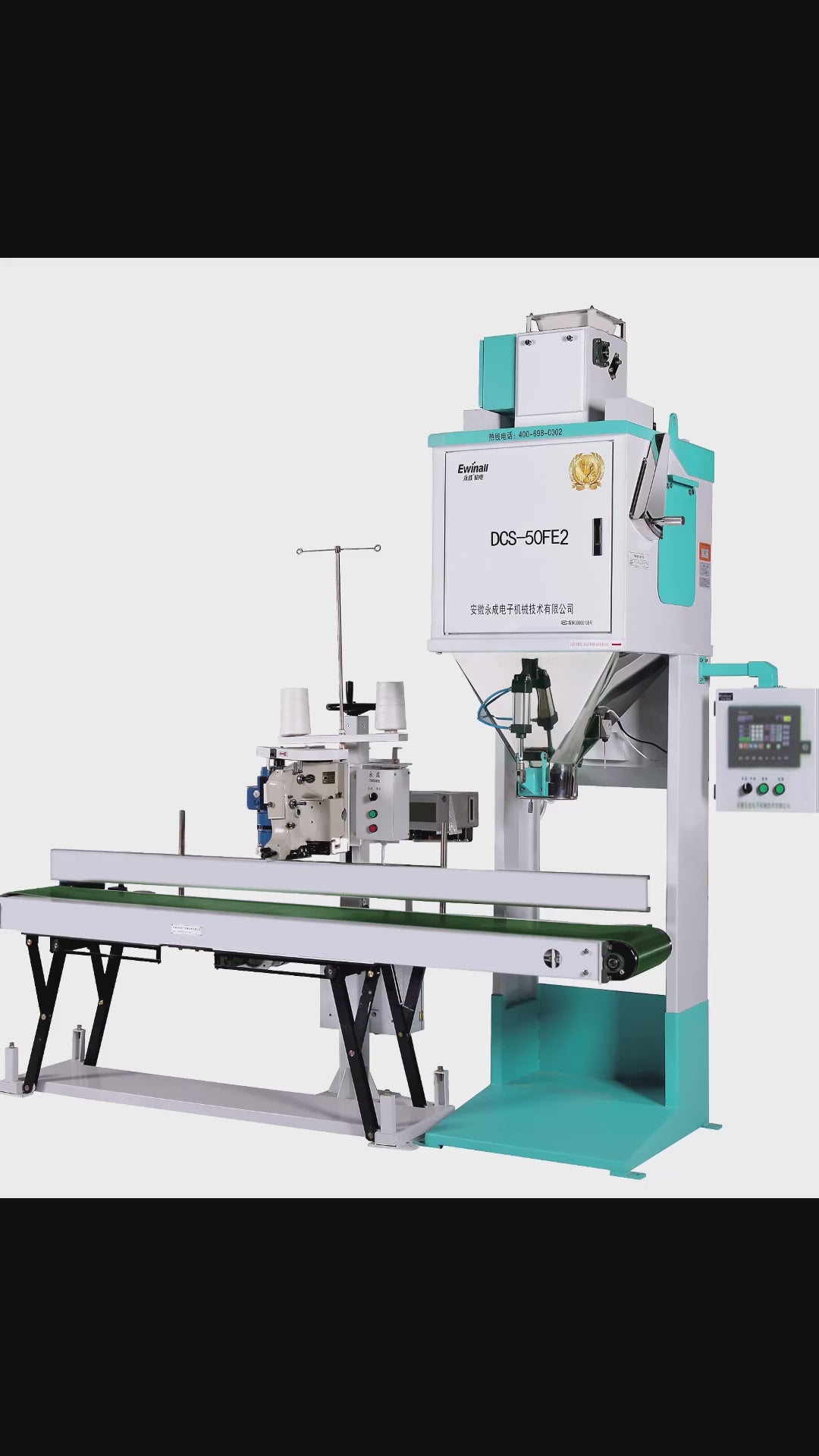

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 1–50 kg | 2–110 lb |
| Output (rice) | 200–480 bags/h | |
| Graduation | 5 g | about 0.18 oz |
| Control | Color touch screen, high-speed A/D controller (200 conversions/s, 0.5 μV/d) | |
| Load cell | High-precision, IP65 | |
| Bag type | Woven, jute, PP and paper bags | |
| Closing | High-speed single-needle sewing, automatic thread cutting | |
| Power | AC 380 V / 220 V ±5%, 50 Hz, 1.1 kW | |
| Compressed air | 0.4–0.5 MPa, 30 L/min | 58–73 psi, about 1.1 CFM |
| Operating conditions | 0–40 °C, ≤90% RH | 32–104 °F |
| Footprint (L × W × H) | 2,847 × 1,026 × 2,731 mm | about 9.3 × 3.4 × 9.0 ft |
Safety and build
- Load cells and cylinders in a sealed, dust-proof chamber, protected from rice dust and humidity
- Material-contact parts in corrosion-resistant SS304 stainless steel
- Each machine is tested with grain in our plant; you get an accuracy report and a test video before shipment
- CE (Machinery Directive) and CE for weighing and bagging machines; manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
Add to the line
The DCS-50FE-C can be combined with bag conveyors, a heat sealer, a check weigher and a palletizer. We supply the full line and its layout drawing.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example japonica rice, soybean, feed pellets)
- Bag weight and bag type (woven, jute, PP or paper)
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Text to print on the bag, and the equipment after the scale
Our engineers guide installation, calibration and operator training by video call, with the installation manual.
