One-Stop Woven Bag Packaging Workstation
One-Stop Woven Bag Packaging Workstation
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
A complete woven-bag line for rice, grain and other granules, from empty bag to loaded truck or stored pallet. Workers only place bags; QZB-900N baggers fill and close them, the line inspects and rejects, and an EC-171 robot palletizes.
1 manual taskplacing empty bags
Metal detectionwith automatic reject
EC-171robot palletizing
2 outputstruck loading or pallet storage
Is the woven bag workstation the right fit?
Good fit
- Rice mills moving from manual bagging and stacking to a full line
- Grain and granule plants that load trucks directly from the line
- Plants that palletize for storage and need continuous pallet supply
- Buyers who want one manufacturer responsible for the whole line
Look at another model if
- You pack vacuum bricks or pillow packs: see the rice vacuum packaging workstation
- You need six-sided vacuum packs: see the six-sided vacuum workstation
- You only need the bagging machine: see the QZB-900N

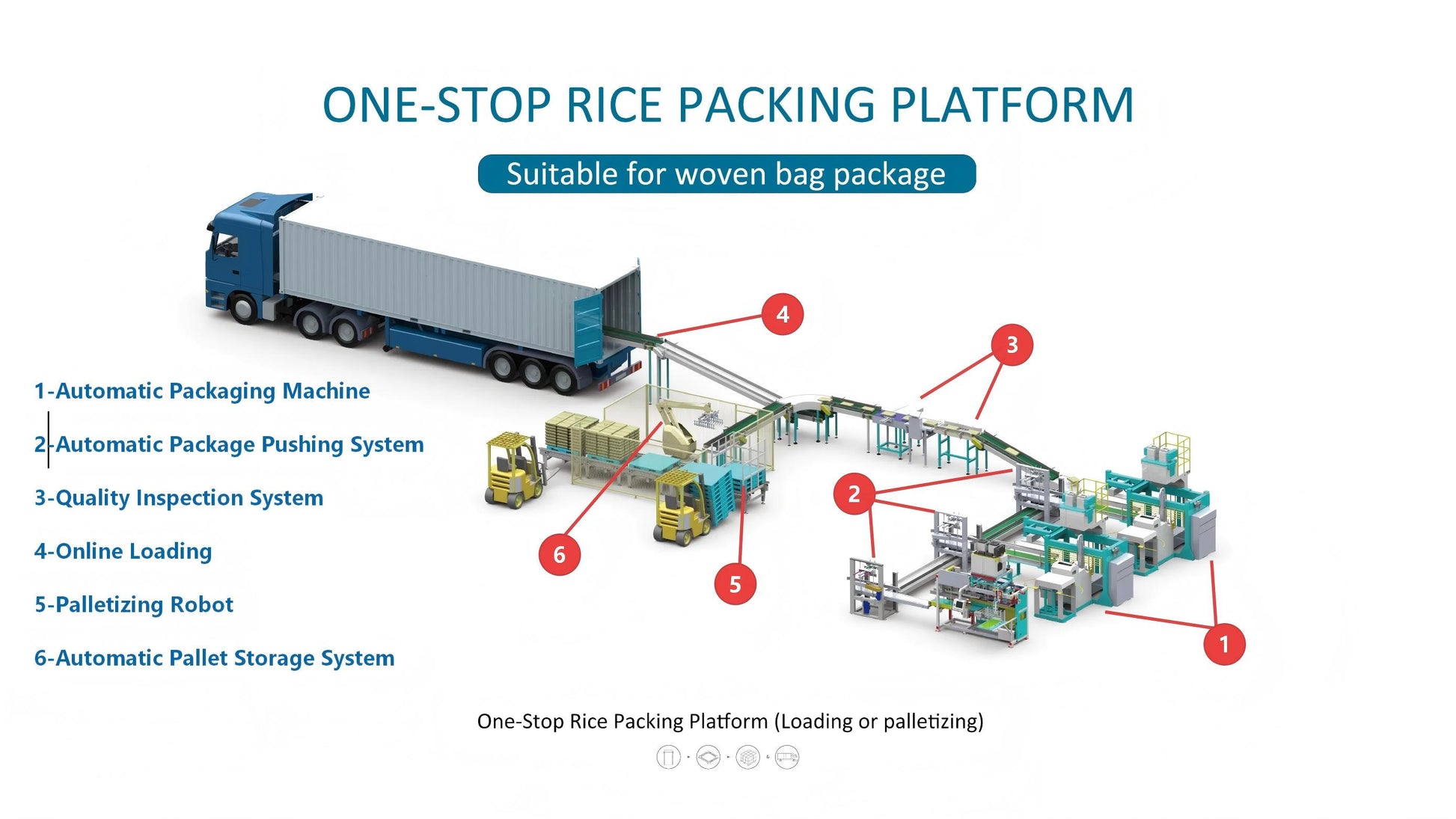

How it works in the line
-
Bagging

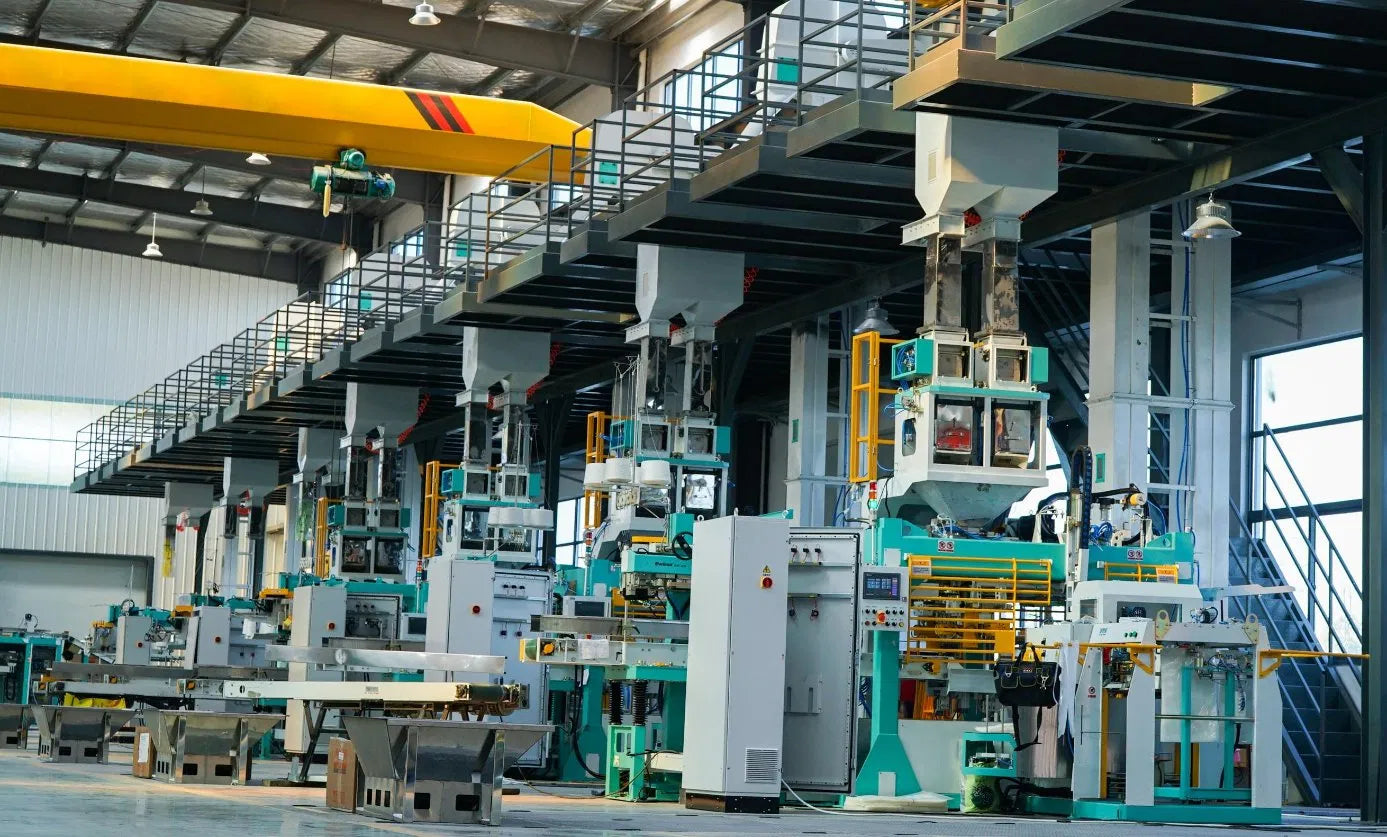

Several QZB-900N machines handle, open, fill and seal bags; workers only place the bags. -
Push and convey
A push-package reversal system moves bags onto the conveyor. -
Inspection
Metal detection and quality checks reject defective bags automatically. -
Load or stack
Bags go by conveyor to the truck, or to the EC-171 robot for stacking. -
Pallet handling
Empty pallets are supplied automatically; full pallets flow to the forklift.
Watch it run
Line equipment
| Stage | Equipment |
|---|---|
| Bagging | QZB-900N automatic packaging machines (several) |
| Transfer | Push-package reversal system and conveyors |
| Inspection | Metal detection, quality checks, automatic rejection |
| Palletizing | EC-171 palletizing robot |
| Pallet supply | Automatic empty pallet delivery to the robot |
| Output | Direct truck loading or pallets for storage |
Operation
- Automatic switching and fault self-checking make the line easy to operate and maintain
- Customizable to the packaging needs of rice and other granular materials
Get a quote for your line
To size the machine and give you a price, we need five things:
- Product (for example rice, grain)
- Bag weight and bag type
- Target output in bags per hour or tons per shift
- Truck loading, pallet storage or both
- Building layout and available space
Our engineers provide on-site installation, debugging and training for local operators.
