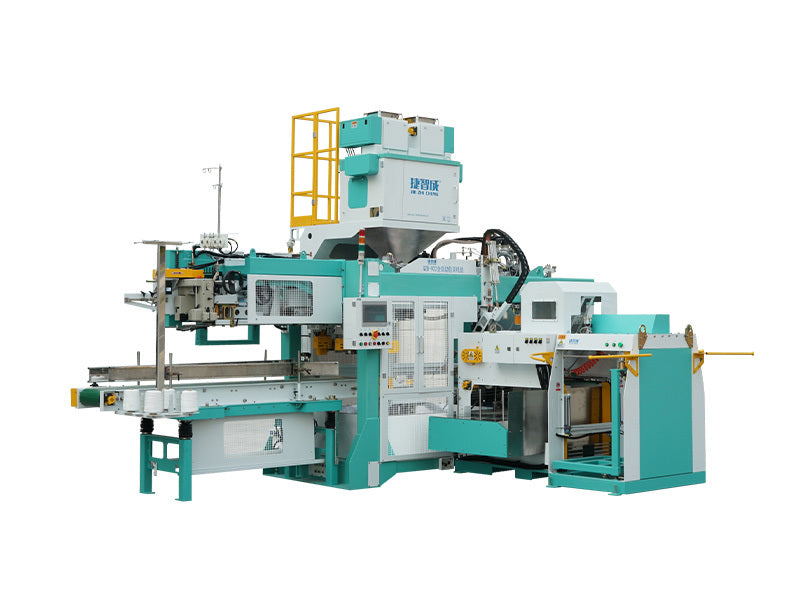

An automatic woven-bag bagger for 5–25 kg (11–55 lb) bags of rice, grain, feed and fertilizer. It takes bags from the magazine, weighs on a three-sensor scale in a sealed chamber, fills and sews, at 600–900 bags per hour. It handles M-side, flat and hard-buckle handle bags, and folded woven bags.
Speed depends on bag size and how freely the product flows. Tell us your product and bag size and we will confirm the rate.
Is the QZB-900N the right fit?
Good fit
- Rice mills packing basmati, japonica or parboiled rice in 5–25 kg bags
- Pulse, bean and seed packers
- Feed and fertilizer plants with free-flowing granules
- Plants that run several bag styles on one machine
- Small rice lines that will add a palletizing robot
How one cycle works
-
Bag feeding
A bag is taken from the bag magazine. -
Opening
The bag is opened and held under the spout. -
Weighing
Cylinder-driven feeding into a three-sensor scale in a sealed chamber. -
Filling
The weighed dose drops into the bag. -
Sewing
The bag is sewn and conveyed out.
Product changes are one click on the touch screen: the machine moves its positions and loads the stored parameters.

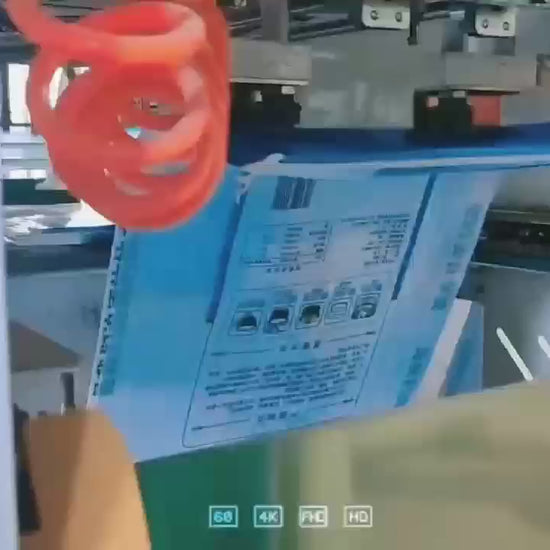

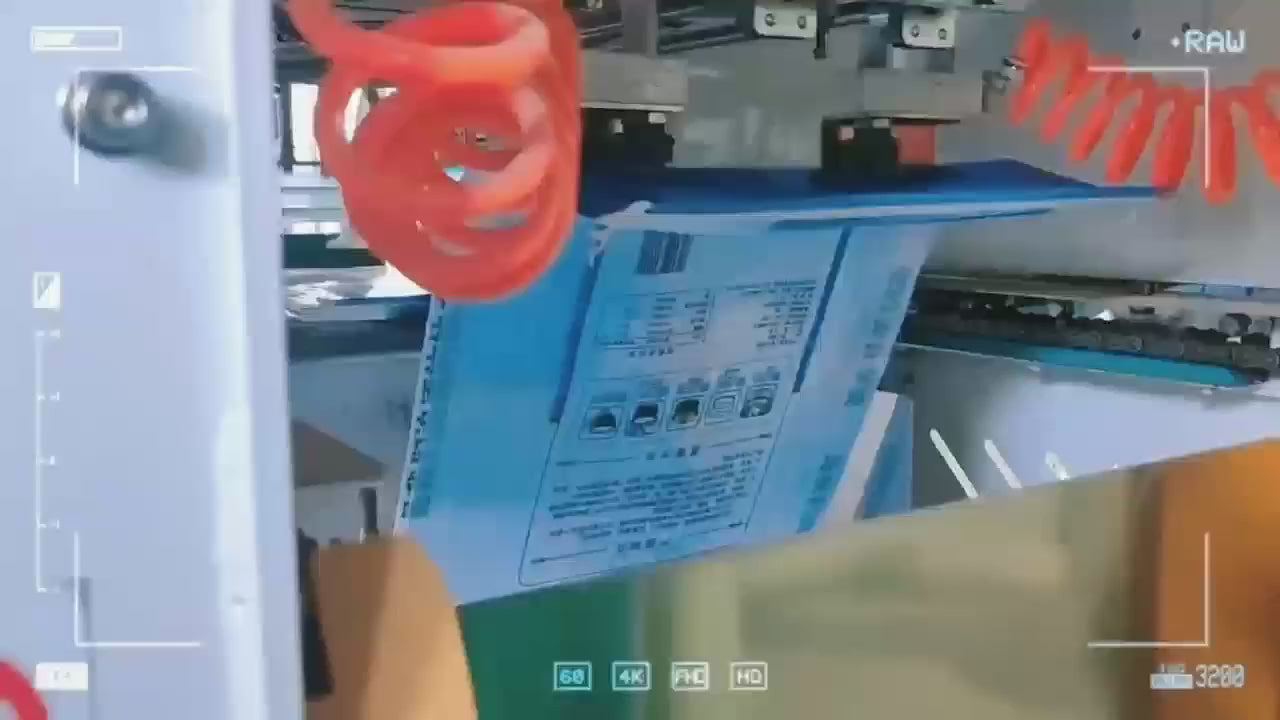

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 5–25 kg | 11–55 lb |
| Output | 600–900 bags/h | 600–900 bags/h |
| Weighing accuracy | ±0.2% | |
| Bag type | M-side woven, flat woven or hard-buckle handle woven bags (double-sided film); folded woven bags | |
| Closing | Sewing | |
| Compressed air | 36 m³/h at 0.5–0.7 MPa | about 21 CFM at 73–102 psi |
| Power | 380 V ±10%, 50 Hz, 3-phase 5-wire, 9 kW | |
| Footprint (L × W × H) | 5,317 × 3,896 × 3,440 mm | about 17.4 × 12.8 × 11.3 ft |
| Operating temperature | 0–40 °C | 32–104 °F |
| Grounding | TN-S | |
Safety and build
- Closed structure with safety interlocks; CE compliant
- Weighing parts in a sealed chamber against dust and corrosion
- Fault self-diagnosis with clear prompts on the touch screen
- PLC, touch screen and servo-driven transmission with recipe storage
Add to the line
The QZB-900N can be integrated with conveyors and a palletizing robot for complete end-of-line automation. See it as part of our woven bag packaging workstation.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example parboiled rice, lentils, poultry feed)
- Bag weight and bag type
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project.
