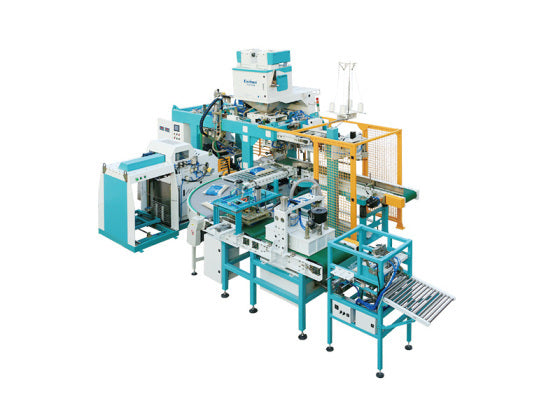

QZB-900Z Fully Automatic Packaging Machine | 2.5–25kg
QZB-900Z Fully Automatic Packaging Machine | 2.5–25kg
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
One automatic line for three packaging styles: sewn woven bags, heat-sealed PE handle bags with optional gas flush, and two-side vacuum bags. For rice mills, seed processors and sugar packers who sell 2.5–25 kg (5.5–55 lb) into different markets. Up to 840 bags per hour at ±0.1% F.S.
Speed and accuracy are based on standard free-flowing granules. Tell us your product and bag size and we will confirm the rate.
Is the QZB-900Z the right fit?
Good fit
- Rice mills selling woven bags and vacuum packs from one line
- Seed processors (sunflower, pumpkin, sesame, chia)
- Sugar packers (refined, raw, organic)
- Bean and pulse packers
- Plants short on floor space for several machines
How one cycle works
-
Bag feeding
Dual-position magazine supplies woven or PE handle bags without stopping. -
Weighing
Three load cells, cylinder and servo feed, sealed chamber. -
Filling
One fill per bag by gravity. -
Closing
Sewing for woven bags; heat seal (gas flush optional) or two-side vacuum for PE bags.
Select the next product on the touch screen and positions, filling and sealing settings adjust automatically. Manual jog mode runs feeders and bag clamps one by one for cleaning.
Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 2.5–25 kg | 5.5–55 lb |
| Output | ≤840 bags/h | ≤840 bags/h |
| Weighing error | ±0.1% F.S. | |

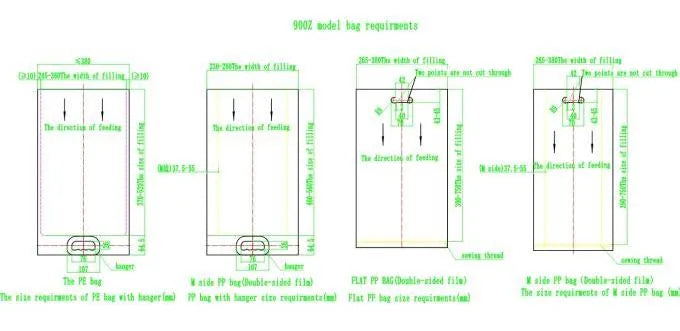

| Bag type | M-woven or flat woven bags (double-sided laminated); PE handle bags | |
| Closing | Woven: sewing. PE: heat seal (gas flush optional) plus two-side vacuum (edge folding optional) | |
| Gas flush | Nitrogen / CO₂ capable | |
| Compressed air | 0.5–0.7 MPa; 22 m³/h bag filling and gas, 46 m³/h vacuum | 73–102 psi; about 13 / 27 CFM |
| Power | 380 V ±10%, 50 Hz, 3-phase; 12 kW bag filling, 15 kW vacuum | |

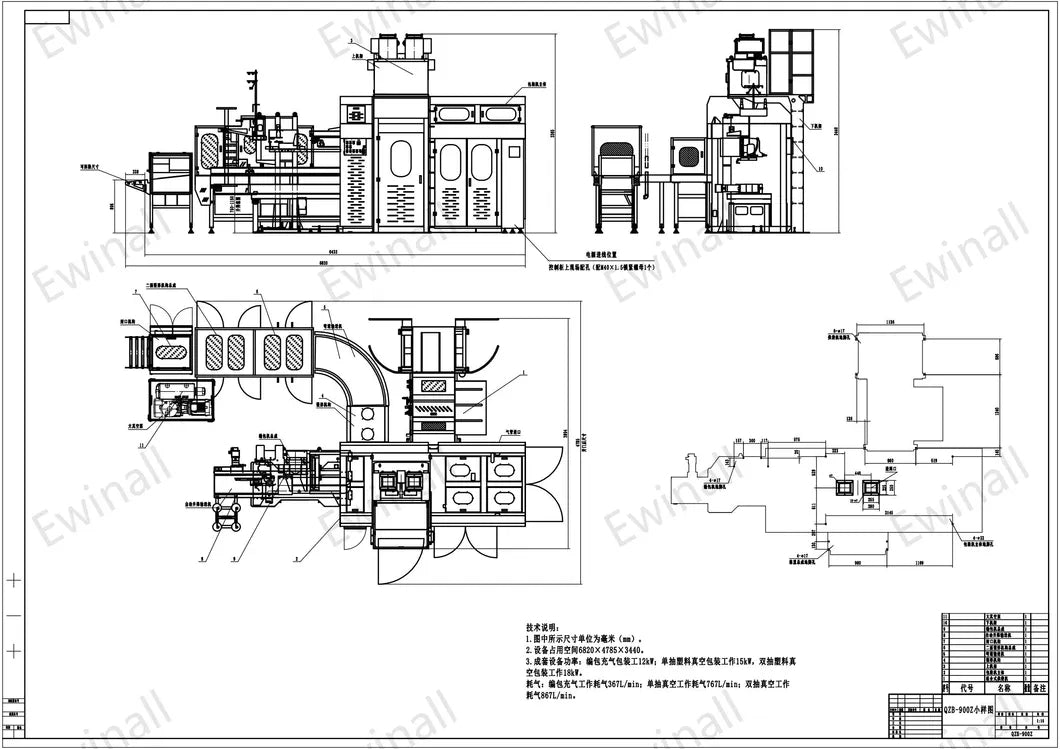

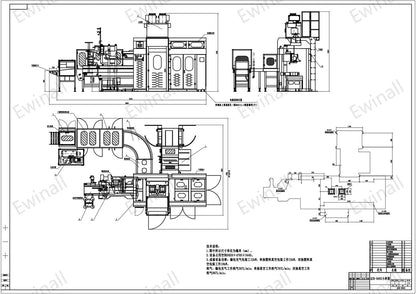

| Footprint (L × W × H) | 6,492 × 3,894 × 3,353 mm | about 21.3 × 12.8 × 11.0 ft |
| Operating conditions | 0–40 °C, ≤90% RH at 40 °C | 32–104 °F |
| Grounding | TN-S | |
| Pneumatics | AirTAC / SMC | |
Safety and build
- Enclosed body, safety interlocks and emergency stop
- Sealed weighing chamber protects load cells and cylinders from dust and corrosion
- Self-diagnosis with troubleshooting guidance on screen
- Full servo drive, PLC and color touch screen
- CE (Machinery Directive); manufacturer certified to ISO 9001, ISO 14001 and ISO 45001
- Each machine is tested with real product in all three modes; you receive a test report and videos
Add to the line
The QZB-900Z can be connected to a carton packer, check weigher, conveyors and a palletizing robot.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example jasmine rice, sugar, seed)
- Bag weights and which of the three bag types you need
- Target bags per hour per bag type
- Power supply (voltage and Hz)
- Equipment before and after the machine
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project.
