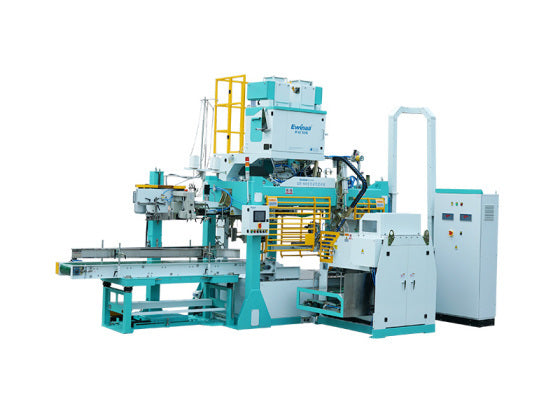

QZB-900L Fully Automatic Packaging Machine | 5–25kg

Name: QZB-900L Fully Automatic Packaging Machine | 5–25kg
Brand: Ewinall

Get a Quote for This Machine

Typical response within one business day · Machine recommendation from our engineers

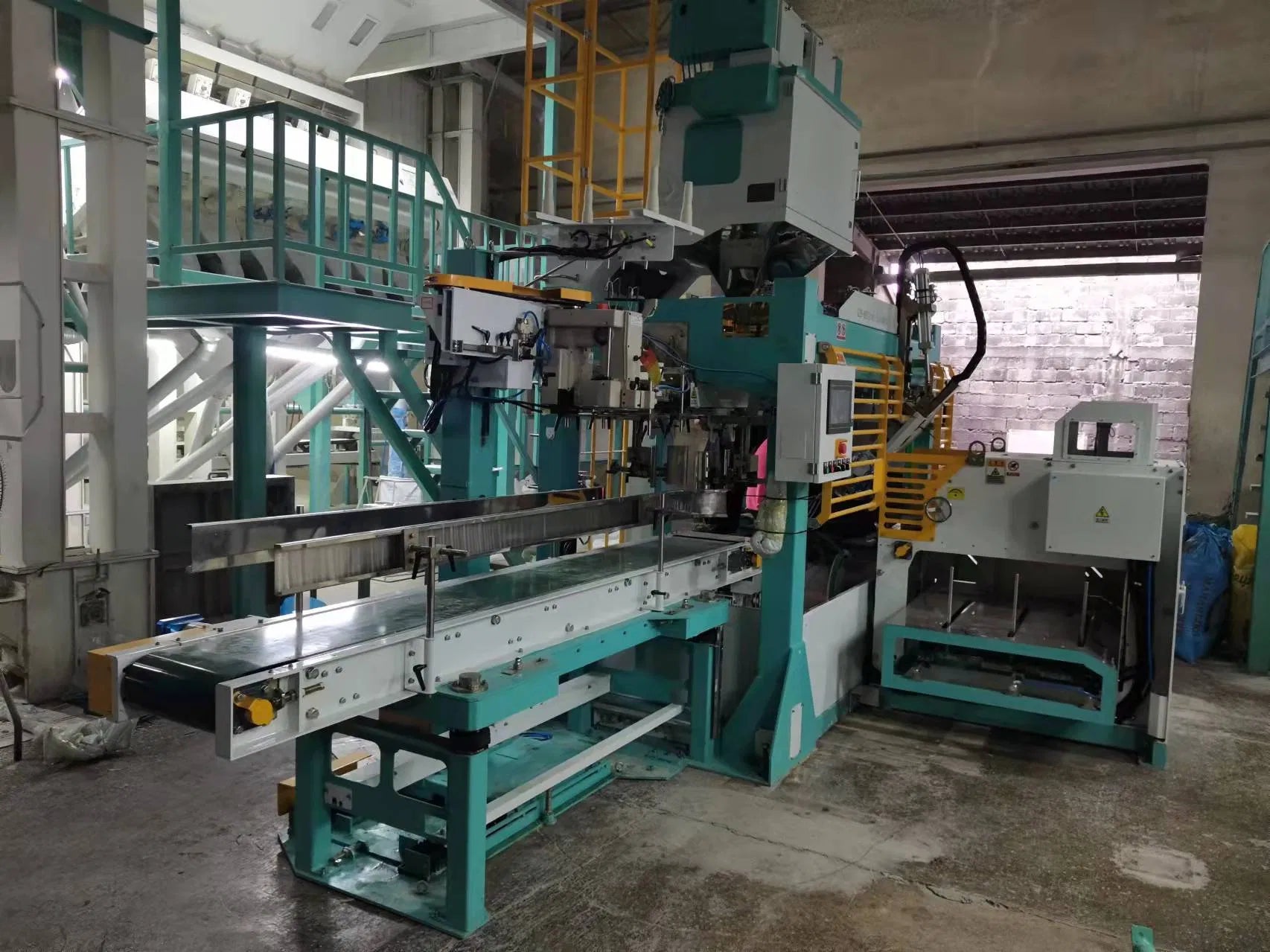

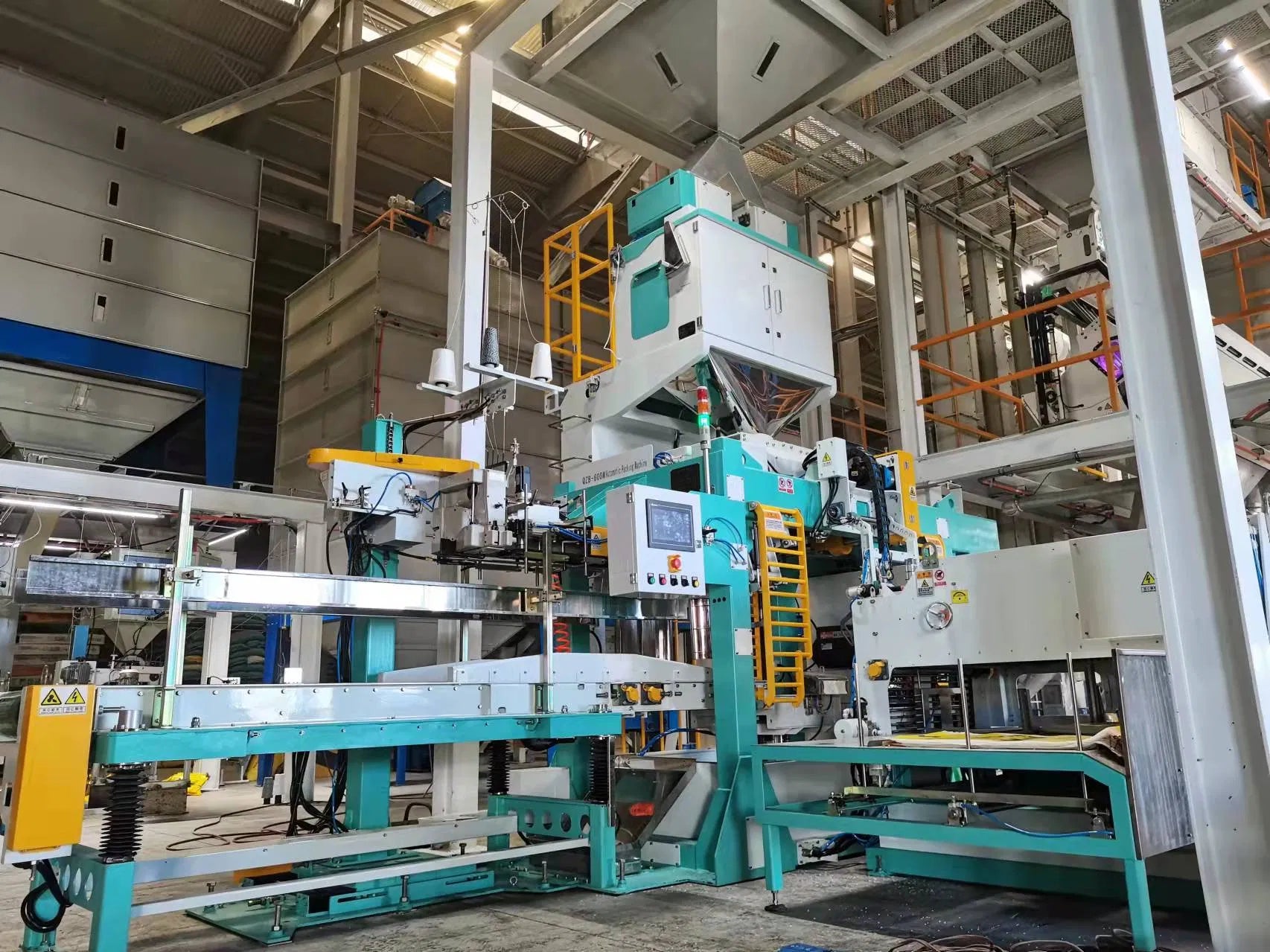

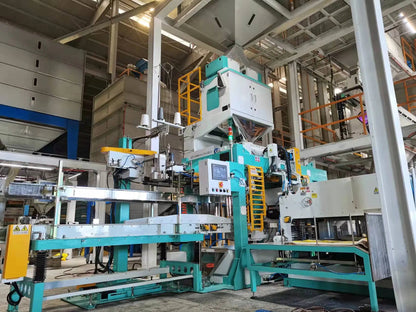

An automatic woven-bag bagger for rice, seed, grain and sugar plants packing 5–25 kg (11–55 lb). It feeds and opens the bag with multiple suction cups, weighs on a three-sensor scale to ±0.1% F.S., fills and sews, at 600–900 bags per hour.

5–25 kg11–55 lb per bag

600–900bags per hour

±0.1% F.S.weighing error

Autobag feeding, opening, filling, sewing

Speed depends on bag size and how freely the product flows. Tell us your product and bag size and we will confirm the rate.

Is the QZB-900L the right fit?

Good fit

Rice mills packing basmati, japonica or parboiled rice
Seed and grain processors (wheat, corn, millet, sorghum)
Sugar and salt packers
Pulse, bean and feed granule packers
Plants using M-woven or flat woven laminated bags

Look at another model if

Your bags are 25–50 kg: see the QZB-600M
You need hard-handle woven bags: see the QZB-900N or QZB-900D
You need more than 900 bags per hour: see the double-station QZB-1600

How one cycle works

Bag feeding
A bag is taken from the bag supply.
Opening
Multiple suction cups open the bag reliably.
Weighing
Gravity feed into a triple-sensor scale.
Filling
One fill per bag.
Sewing
The elevating conveyor brings the bag to the sewing machine.

The elevating conveyor uses a single-point drive with four-point vertical lifting for a wide, stable height range. Product changes are a selection on the touch screen.

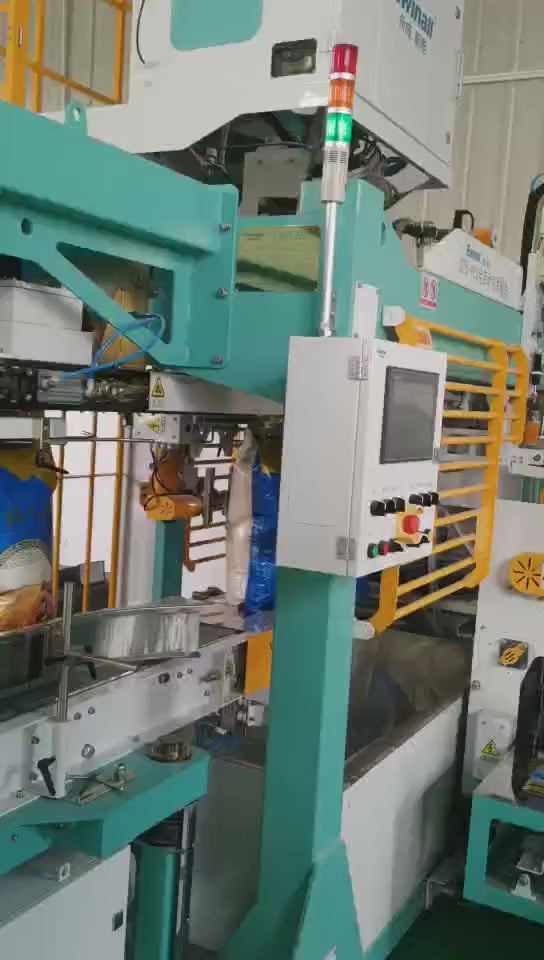

Watch it run

Technical specifications

Item	Metric	US units
Bag weight	5–25 kg	11–55 lb
Output	600–900 bags/h	600–900 bags/h
Weighing error	±0.1% F.S.
Bag type	M-woven or flat woven bags (double-sided laminated)
Closing	Sewing
Feeding	Gravity feed; cylinder and servo type, triple-sensor support
Suitable materials	Free-flowing granules
Compressed air	100 L/min at 0.5–0.7 MPa	about 3.5 CFM at 73–102 psi
Power	380 V ±10%, 50 Hz, 3-phase 5-wire, 9 kW
Footprint (L × W × H)	5,401 × 3,014 × 3,355 mm	about 17.7 × 9.9 × 11.0 ft
Operating conditions	0–40 °C, ≤90% RH at 40 °C	32–104 °F
Grounding	TN-S
