QZB-900-B Automatic Rice & Grain Packaging Machine | 2.5–25kg
QZB-900-B Automatic Rice & Grain Packaging Machine | 2.5–25kg
Get a Quote for This Machine
Typical response within one business day · Machine recommendation from our engineers
An automatic bagger for rice mills and grain processors that switch between laminated woven bags and PE plastic bags, 2.5–25 kg (5.5–55 lb). It supplies the bag, weighs on a three-sensor scale, fills, folds and closes by sewing or optional heat sealing, at up to 850 bags per hour.
Speed depends on bag size and how freely the product flows. Tell us your product and bag size and we will confirm the rate.
Is the QZB-900-B the right fit?
Good fit
- Rice mills moving between woven and plastic packaging
- Grain, bean and pulse packers
- Seed and animal feed granules
- Sugar, salt, plastic pellets, fertilizer and sand
How one cycle works
-
Bag supply
A woven laminated or PE bag is supplied automatically. -
Weighing
Three-sensor scale with servo-driven cylinder feeding. -
Filling
Gravity filling of free-flowing granules. -
Folding and closing
The bag mouth is folded and sewn, or heat sealed (optional).
Recipes for different bag sizes and materials are stored on the touch screen, so changeovers take minutes.

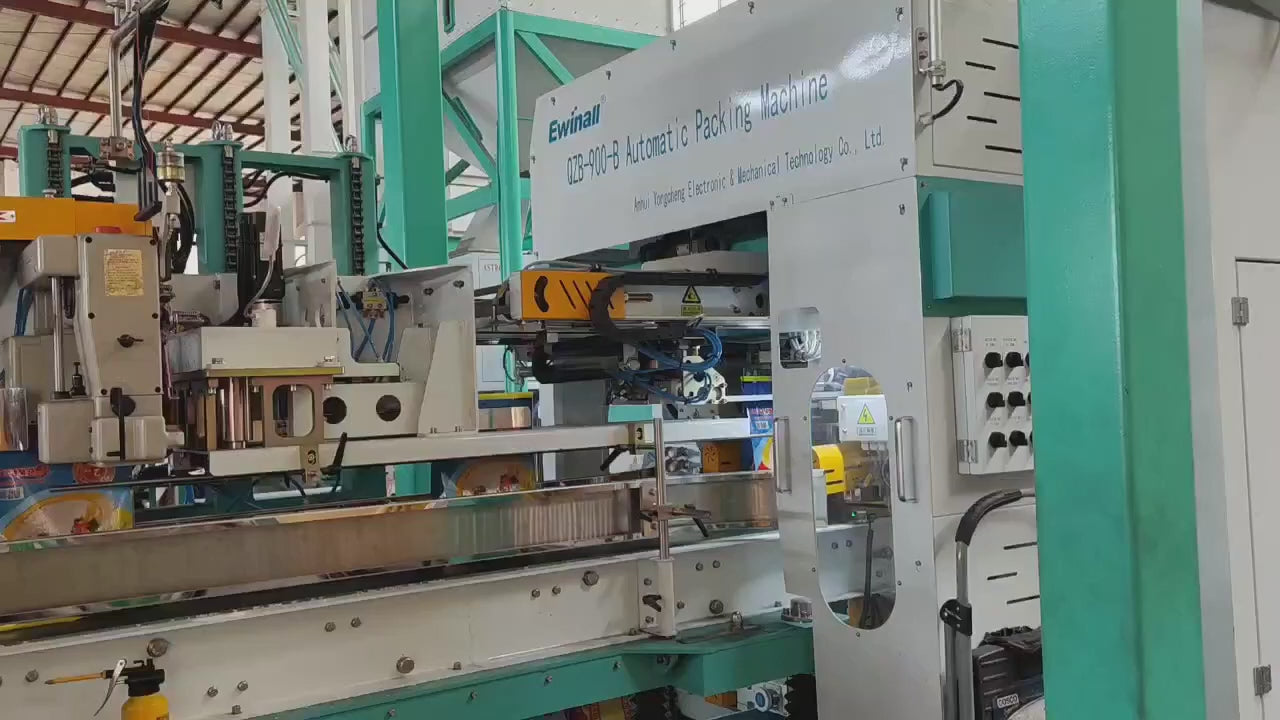

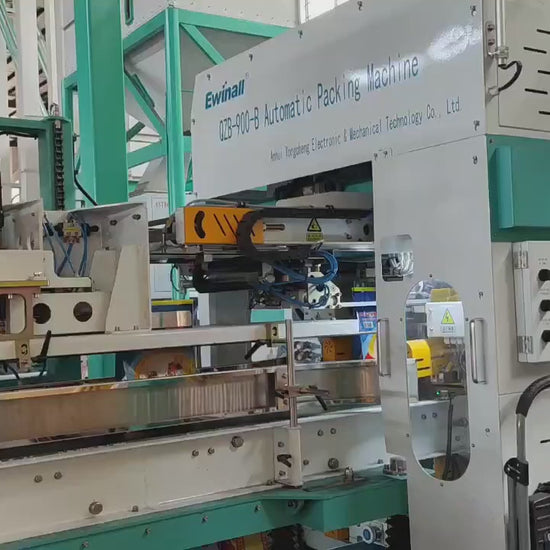

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Bag weight | 2.5–25 kg | 5.5–55 lb |
| Output | ≤850 bags/h | ≤850 bags/h |
| Weighing accuracy | ±0.5% | |
| Bag type | Woven lamination bag, PE plastic bag | |
| Closing | Sewing, or heat sealing (optional) | |
| Feeding | Gravity feed, for free-flowing granules | |
| Compressed air | 367 L/min at 0.5–0.7 MPa | about 13 CFM at 73–102 psi |
| Power | 380 V ±10%, 50 Hz, 3-phase 5-wire, 9 kW (woven bags) | |
| Footprint (L × W × H) | 5,256 × 3,894 × 3,440 mm | about 17.2 × 12.8 × 11.3 ft |
| Operating conditions | 0–40 °C, ≤90% RH at 40 °C | 32–104 °F |
| Grounding | TN-S | |
Components (typical)
| Part | Brand |
|---|---|
| PLC | Omron (Japan) / Delta (Taiwan) |
| Touch screen | MCGS (China) |
| Servo motor | Delta / Inovance |
| Load cells | Mettler Toledo / HBM |
| Low-voltage electrics | Eaton / Chint |
| Sensors | TURCK / SICK (Germany) |
| Cylinders and solenoid valves | AirTAC / Mindman |
| Relays | IDEC (Japan) |
Actual brands may vary with supply; custom brand requests are accepted.
Safety and build
- Fully enclosed structure with safety interlocks; CE compliant
- Enclosure keeps foreign objects out of the product
- Alarm system with fault self-diagnosis
Add to the line
The QZB-900-B can be integrated with conveyors and a palletizing robot for full line automation.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product (for example parboiled rice, beans, sugar)
- Bag weight and bag type (woven or PE)
- Target bags per hour or tons per shift
- Power supply (voltage and Hz)
- Equipment before and after the bagger
