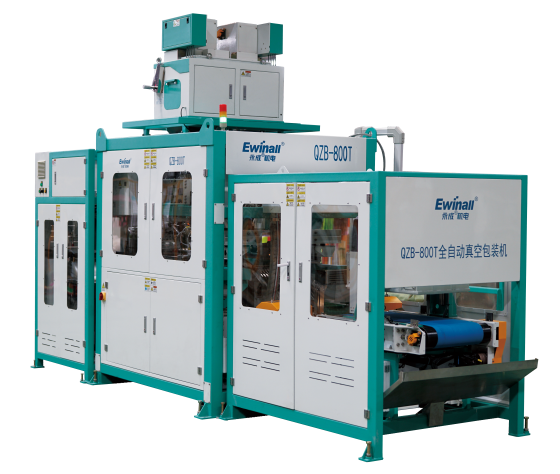

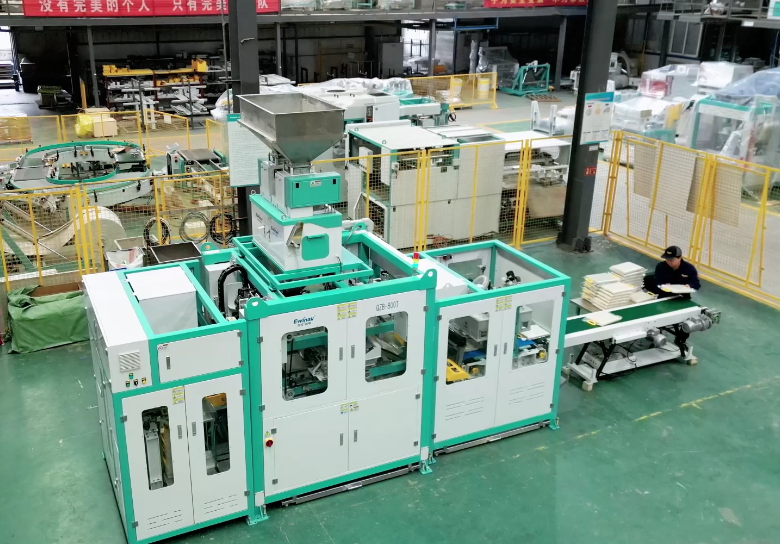

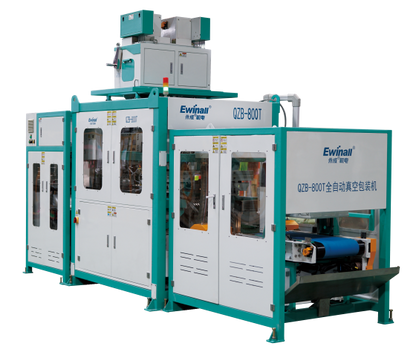

A fully automatic, servo-controlled vacuum packer for rice mills and grain exporters packing 2.5–10 kg (5.5–22 lb) brick-shaped packs. It picks bags from a double magazine, fills, vacuums, double-heat seals and shapes each pack at 600–800 packs per hour, and can also run non-vacuum and gas flush cycles.
Test data is for indica and japonica rice at standard moisture. Actual speed depends on bag size and product: tell us both and we will confirm.
Is the QZB-800T the right fit?
Good fit
- Export rice mills (basmati, jasmine, japonica, parboiled, glutinous)
- Grain, bean and pulse packers in 2.5–10 kg retail packs
- Brands that want a square brick for shelf display and case packing
- Plants using flat, gusseted (M-side) or handle bags
Look at another model if
- You need 1,100–1,400 packs per hour: see the QZB-1200T
- Your packs are 0.5–5 kg bricks: see the QZB-1000S
- You want vacuum, stacking and shrink wrapping as one system: see the rice vacuum packaging workstation
How one cycle works
-

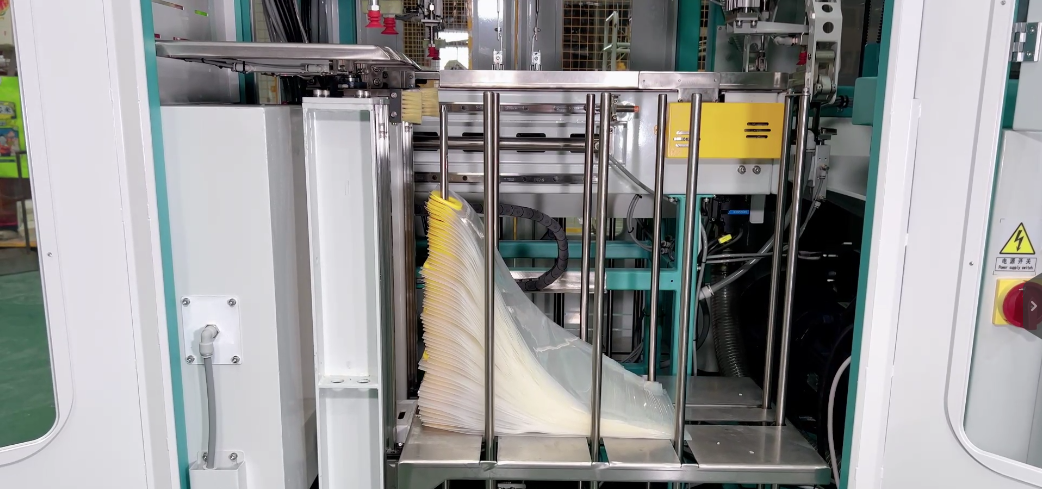

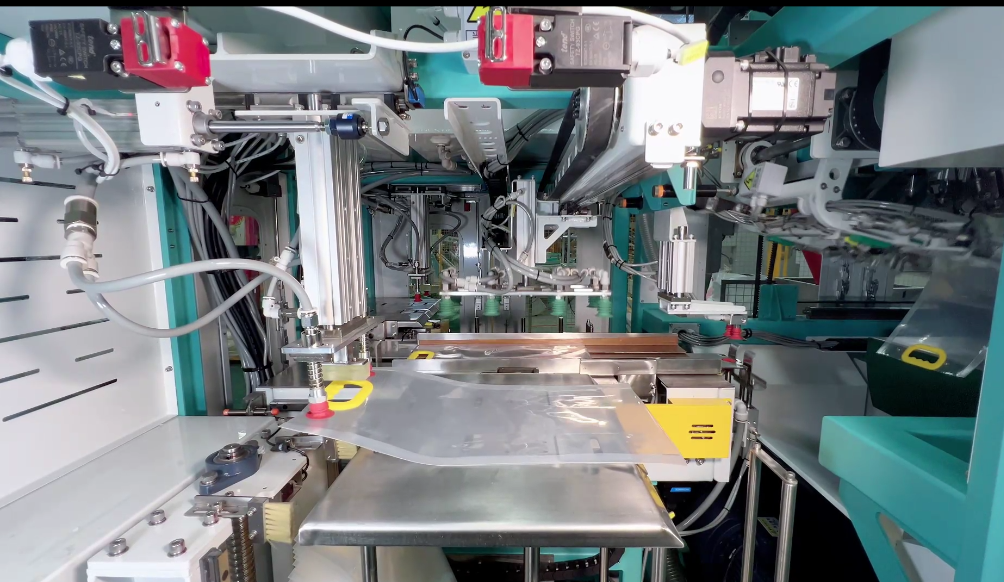

Bag picking
Bags are picked from a double magazine; the operator only refills it. -
Weighing
Separate cylinder-driven feeding into a three-sensor scale in an enclosed chamber. -

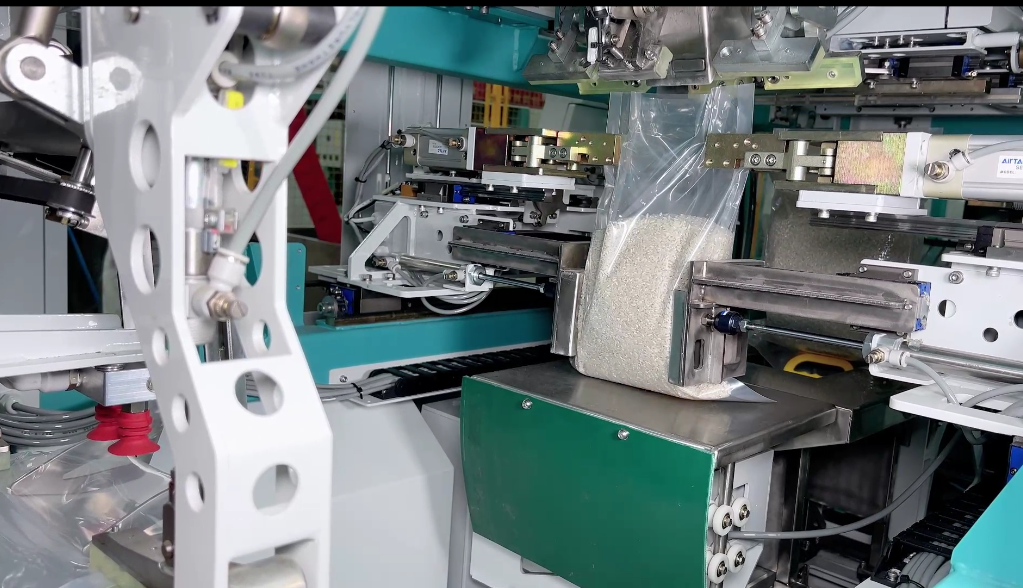

Filling
The weighed product is filled into the bag. -
Vacuum and sealing
Tube vacuuming removes the air; double heating elements make one leak-proof heat seal. -

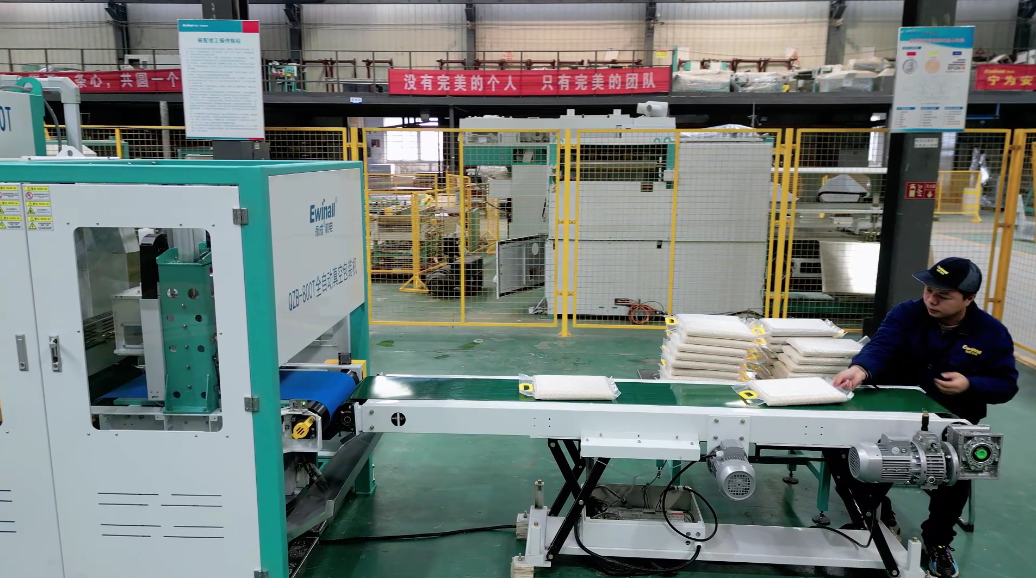

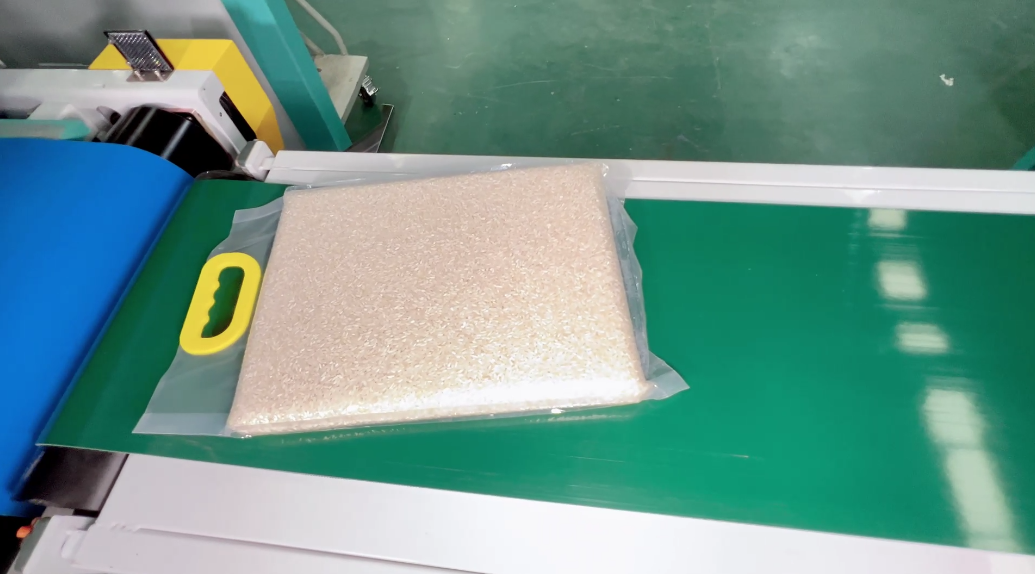

Shaping and check
Shaping plates press the pack into a brick; abnormal bags are rejected automatically.
Product changes are a recipe on the touch screen: servo axes reset bag width, filling position and sealing settings.

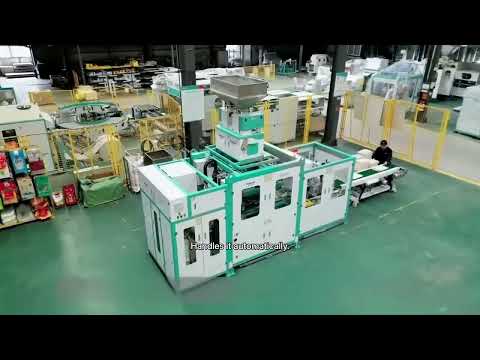

Watch it run
Technical specifications
| Item | Metric | US units |
|---|---|---|
| Pack weight | 2.5–10 kg | 5.5–22 lb |
| Output | 600–800 packs/h (rice) | |
| Bag type | PE composite film: flat, M-side, with or without handle | |
| Sealing | Two-side vacuum + one heat seal (double heating) | |
| Bag size (W × T × L) | 80–235 × 40–80 × 260–480 mm | about 3.1–9.3 × 1.6–3.1 × 10.2–18.9 in |
| Compressed air pressure | 0.5–0.7 MPa | about 73–102 psi |
| Vacuum consumption | 880 L/min | about 31 CFM |
| Power | AC 380 V ±10%, 50 Hz, 3-phase 5-wire TN-S, 8 kW | Other voltages and 60 Hz on request |
| Operating conditions | 0–40 °C, ≤90% RH, non-condensing | 32–104 °F |
| Footprint (L × W × H) | 4,632 × 1,680 × 3,072 mm | about 15.2 × 5.5 × 10.1 ft |
Safety and build
- Enclosed structure with safety interlocks
- Enclosed weighing chamber for accuracy in dusty mills
- Full servo drive for precise positioning and less mechanical wear
Add to the line
Combine the QZB-800T with a check weigher, a case packer such as the ZXJ-2400 and a palletizing robot, or with the DBJ-1350 bag stacker.
Get a quote for your plant
To size the machine and give you a price, we need five things:
- Product and rice variety
- Pack weights you need
- Bag type and size, or a photo of your bag stock
- Target packs per hour or tons per shift
- Power supply (voltage and Hz)
Installation, testing and training scope is confirmed in your quotation. Remote support and on-site assistance can be arranged for your project.
